🔧 Outlander Sport - Thermostat Replacement

The thermostat controls engine temperature by opening and closing coolant flow to the radiator. If it sticks closed you can overheat; if it sticks open the engine may run cold and set a check-engine light and/or have weak heat.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Never open the coolant cap on a hot engine—hot coolant can spray and burn you.
• ⚠️ Support the vehicle with jack stands if you lift it; never rely on a jack alone.
• ⚠️ Keep coolant off belts and electrical connectors; wipe spills immediately.
• ⚠️ Dispose of used coolant properly; it’s toxic to people and pets.
• ⚠️ Battery disconnect is not required, but keep tools clear of the battery positive terminal.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• Drain pan (2-gallon minimum)
• Funnel
• 10mm socket
• 12mm socket
• 3/8" ratchet
• 3/8" extension set
• Torque wrench (in-lb or low-range ft-lb)
• Hose clamp pliers
• Trim clip remover
• Flathead screwdriver
• Plastic gasket scraper
• Shop towels

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Engine thermostat - Qty: 1
• Thermostat gasket/O-ring - Qty: 1
• Engine coolant (Mitsubishi Super Long Life Coolant, premixed) - Qty: 2-3 gallons
• Hose clamps - Qty: 1-2 (only if originals are weak)

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks at the rear wheels.
• Let the engine go fully cold (best is overnight).
• Set the climate control to HOT (this helps coolant circulate through the heater core during bleeding).
• A torque wrench measures bolt tightness accurately.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the lower splash shield (if equipped)

• Raise the front with a floor jack (rated 2-ton minimum) and support with jack stands (rated 2-ton minimum).
• Use a trim clip remover and 10mm socket to remove the fasteners and drop the splash shield.

Step 2: Drain the coolant

• Place a drain pan (2-gallon minimum) under the radiator drain area.
• Slowly loosen the radiator cap to the first stop to release any remaining pressure (engine must be cold).
• Open the radiator drain using a flathead screwdriver (style varies) and drain coolant into the pan.

Step 3: Remove the air intake duct/air box for access

• Use a flathead screwdriver to loosen the intake hose clamp(s).
• Use a 10mm socket to remove air box/duct bolts (as equipped), then lift the duct/air box out.
• Take a quick photo before pulling hoses.

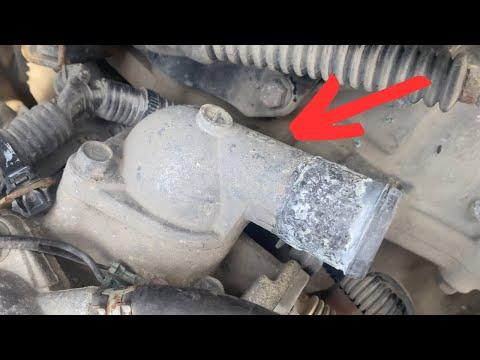

Step 4: Locate the thermostat housing

• Follow the lower radiator hose to the engine—the hose connects at the thermostat housing/water inlet.
• Position the drain pan under the housing area (more coolant will spill).

Step 5: Remove the lower radiator hose from the thermostat housing

• Use hose clamp pliers to compress the clamp and slide it back on the hose.
• Twist the hose gently to break it loose, then pull it off. Use shop towels to catch spills.

Step 6: Remove the thermostat housing/water inlet

• Use a 12mm socket, 3/8" ratchet, and 3/8" extension set to remove the housing bolts.
• Carefully separate the housing; don’t pry hard against aluminum surfaces.

Step 7: Replace the thermostat and seal

• Remove the old thermostat and the old gasket/O-ring by hand.
• Clean the mating surfaces with a plastic gasket scraper and shop towels.
• Install the new thermostat in the same orientation as the old one.
• Install the new gasket/O-ring (lightly wet with fresh coolant so it seats without pinching).

Step 8: Reinstall the thermostat housing and torque bolts

• Reinstall the housing and start all bolts by hand to avoid cross-threading.
• Use a torque wrench (in-lb or low-range ft-lb) to tighten evenly: Torque to 10 Nm (7 ft-lbs).
• Snug first, then torque—don’t “gorilla-tight.”

Step 9: Reinstall the radiator hose and intake parts

• Reinstall the hose fully onto the housing, then use hose clamp pliers to place the clamp back in its original position.
• Reinstall the air duct/air box using a 10mm socket.
• Tighten intake hose clamps using a flathead screwdriver.

Step 10: Reinstall the splash shield and lower the vehicle

• Reinstall the shield using a trim clip remover and 10mm socket.
• Lower the vehicle from the jack stands (rated 2-ton minimum) using the floor jack (rated 2-ton minimum).

Step 11: Refill and bleed the cooling system

• Fill the radiator slowly with a funnel using Mitsubishi Super Long Life Coolant, premixed.
• Fill the coolant reservoir to the FULL mark.
• Start the engine and let it idle with the heater set to HOT.
• As the engine warms up, watch the coolant level and add as needed (small drops are normal as air burps out).
• Once the cooling fan cycles and you have steady cabin heat, reinstall the radiator cap.

---

✅ After Repair

• Let the engine reach normal temp and confirm the heater blows hot and the temperature gauge stays stable.
• Inspect for leaks around the thermostat housing and hose connection with a flashlight.
• After a full cool-down, recheck the reservoir level and top off to the FULL mark if needed.
• Over the next 1-2 drives, check the reservoir level again and look for any dried coolant residue.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$650 (parts + labor)

DIY Cost: $45-$120 (parts only)

You Save: $230-$605 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
