🔧 Outlander - Thermostat Replacement

Your thermostat controls engine temperature by opening and closing coolant flow to the radiator. If it sticks closed, the engine can overheat; if it sticks open, the engine may run cold and waste fuel.

Difficulty Level: Intermediate | Estimated Time: 1.5–3 hours

---

⚠️ Safety & Precautions

• ⚠️ Never open the radiator cap on a hot engine; hot coolant can spray and burn you.
• ⚠️ Support your Outlander with jack stands; never rely on a floor jack alone.
• ⚠️ Coolant is toxic to people and pets; catch every drop and clean spills.
• ⚠️ Keep hands/loose clothing away from the radiator fans; they can turn on automatically.
• ⚠️ Battery disconnect is recommended if you’ll be working near the fan wiring.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Wheel chocks
• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Drain pan (at least 10 liters)
• Funnel
• Spill-free coolant funnel kit (specialty)
• Shop towels
• Trim clip removal tool
• Flat-blade screwdriver
• Pliers
• 10mm socket
• 12mm socket
• 3/8" ratchet
• 3/8" extension (6")
• Torque wrench (5–60 Nm range)
• Plastic gasket scraper

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Engine thermostat - Qty: 1
• Thermostat housing O-ring / gasket - Qty: 1
• Engine coolant (P-OAT / Super Long Life compatible) - Qty: 6–8 liters
• Distilled water - Qty: 4 liters
• Worm-gear hose clamp assortment - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear wheels.
• Let the engine cool fully (ideally 2+ hours).
• Disconnect the battery negative terminal using a 10mm socket.
• Tip: Take a photo before removing any hoses.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Assumption: 2.4L thermostat is in the lower radiator hose housing at the front of the engine; common bolt torques used below.

Step 1: Raise the front and remove the lower splash shield

• Lift the front using a floor jack (rated 2-ton minimum) and support it with jack stands (rated 2-ton minimum).
• Remove the engine under cover / splash shield using a trim clip removal tool and 10mm socket.

Step 2: Drain the coolant

• Place a drain pan (at least 10 liters) under the radiator drain area.
• Slowly loosen the radiator cap to the first “stop” to release any leftover pressure, then remove it fully.
• Open the radiator drain cock using a flat-blade screwdriver (some are hand-turn; use the screwdriver only if needed).
• Let coolant fully drain, then close the drain cock snugly (do not overtighten plastic).

Step 3: Access the thermostat housing

• Remove the intake snorkel/ducting if it blocks access using a 10mm socket and flat-blade screwdriver.
• Locate the thermostat housing where the lower radiator hose meets the engine.

Step 4: Remove the lower radiator hose from the housing

• Use pliers to slide the spring clamp back (or use a flat-blade screwdriver if it’s a screw clamp).
• Twist the hose gently to break it loose, then pull it off.
• Tip: Don’t pry on plastic fittings.

Step 5: Remove the thermostat housing

• Remove the housing bolts using a 10mm socket, 3/8" ratchet, and 3/8" extension (6").
• Pull the housing straight off. Expect some coolant to spill—keep the drain pan underneath.

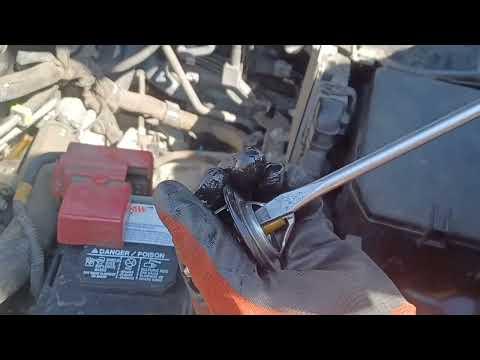

Step 6: Replace the thermostat and seal

• Remove the old thermostat and the old O-ring / gasket.
• Clean the mating surfaces using a plastic gasket scraper and shop towels.
• Install the new thermostat in the same orientation as the old one.
• If the thermostat has a small “jiggle valve” (a tiny loose pin/bleed valve), position it at the top (12 o’clock) to help air escape.
• Install the new O-ring / gasket (lightly wet it with fresh coolant so it doesn’t pinch).

Step 7: Reinstall the thermostat housing

• Reinstall the housing and start all bolts by hand to avoid cross-threading.
• Tighten evenly using a 10mm socket, then final-tighten with a torque wrench (5–60 Nm range): Torque to 10 Nm (89 in-lbs).

Step 8: Reattach the lower radiator hose and intake ducting

• Push the hose fully onto the housing, then reinstall the clamp using pliers (or flat-blade screwdriver for screw clamps).
• Reinstall any intake ducting using a 10mm socket and flat-blade screwdriver.

Step 9: Refill and bleed the cooling system

• Install a spill-free coolant funnel kit (specialty) on the radiator filler neck.
• Refill with the correct coolant mix (typically 50/50 if using concentrate) using a funnel.
• Reconnect the battery negative terminal using a 10mm socket.
• Start the engine and set the HVAC to HOT with the fan on low.
• Let it idle. Watch for bubbles in the funnel; add coolant as the level drops.
• When the thermostat opens, the upper radiator hose will get hot and you may see a bigger drop in level—top off again.
• Let the radiator fans cycle once, then shut the engine off and let it cool.
• Remove the funnel, install the radiator cap, and fill the overflow reservoir to the “FULL” line.

Step 10: Reinstall the splash shield and lower the vehicle

• Reinstall the under cover using a trim clip removal tool and 10mm socket.
• Lower the vehicle safely using the floor jack (rated 2-ton minimum).

---

✅ After Repair

• With the engine running, inspect for leaks around the thermostat housing and the lower hose connection.
• On your first drive, watch the temperature gauge—any overheating means stop and recheck air bleeding and coolant level.
• After the engine cools completely, recheck the radiator level and overflow reservoir level and top off as needed.
• Dispose of old coolant properly (do not dump it).

---

💰 DIY vs Shop Cost

Shop Cost: ₹8,000–₹18,000 (parts + labor)

DIY Cost: ₹2,000–₹6,000 (parts only)

You Save: ₹6,000–₹12,000 by doing it yourself!

Shop labor rates vary but typically run ₹1,000–₹2,500/hour. This repair takes a shop approximately 1.5–3 hours.

---
