🔧 Thermostat - Replacement

On your GLE350, the thermostat controls engine temperature by opening and closing coolant flow to the radiator. When it sticks open or closed, you can get slow warm-up, overheating, weak heat, or a check engine light. Replacing it means draining some coolant, swapping the thermostat/housing, then refilling and bleeding the cooling system.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

Assumption: M276 3.5L uses a thermostat integrated with a front-mounted housing.

---

⚠️ Safety & Precautions

• ⚠️ Never open the coolant cap on a hot engine; wait until fully cool.
• ⚠️ Coolant is toxic—wear gloves and catch all fluid in a drain pan.
• ⚠️ Support the SUV with jack stands before working underneath.
• ⚠️ Keep coolant off belts and electrical connectors; wipe spills immediately.
• ⚠️ Battery disconnect is not usually required, but keep tools away from the electric fan area.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Drain pan (at least 10-quart)
• Funnel (spill-proof)
• Trim clip removal tool
• Pick tool
• Ratchet (3/8" drive)
• Socket set (8mm, 10mm, 13mm)
• E-Torx socket set (E8, E10, E12)
• Torque wrench (5–60 Nm range)
• Hose clamp pliers
• Pliers (slip-joint)
• Flathead screwdriver
• T25 Torx bit
• T30 Torx bit
• Shop towels

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Thermostat assembly (thermostat with housing/seal) - Qty: 1
• Engine coolant (Mercedes-approved, MB 325.0/326.0 equivalent) - Qty: 2-3 gallons (mixed 50/50 as required)
• Distilled water - Qty: 1-2 gallons
• Hose clamp(s) (optional, if originals are weak) - Qty: 1-3
• Coolant sealing washer/O-ring(s) (if equipped on any quick-connect line) - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and install wheel chocks.
• Let the engine cool completely (cool upper radiator hose to the touch).
• Set the HVAC to MAX HEAT before shutdown if possible; it helps coolant circulate through the heater core during bleeding.
• Raise the front using a floor jack and support with jack stands at safe lift points.
• Have a plan to recycle used coolant (most parts stores accept it).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Relieve pressure safely

• Put on safety glasses and nitrile gloves.
• Slowly loosen the coolant reservoir cap with your hand. If you hear hissing, tighten it back and wait longer.

Step 2: Remove the lower splash shield (undertray)

• Use a T25 Torx bit and T30 Torx bit with a ratchet to remove the fasteners.
• Use a trim clip removal tool to pop any plastic clips without breaking them.

Step 3: Drain coolant (partial drain)

• Place a drain pan (at least 10-quart) under the radiator drain area.
• Open the radiator drain carefully using a flathead screwdriver (some versions use a twist valve you turn by hand).
• Let coolant drain until the flow slows down a lot (usually enough to drop the level below the thermostat).

Step 4: Remove the engine cover and intake ducting

• Lift off the engine cover by pulling straight upward (it is press-fit).
• Use an 8mm socket or flathead screwdriver to loosen intake hose clamps.
• Remove any intake snorkel/duct fasteners using a T25 Torx bit.
• Tip: Take a quick photo of hose routing.

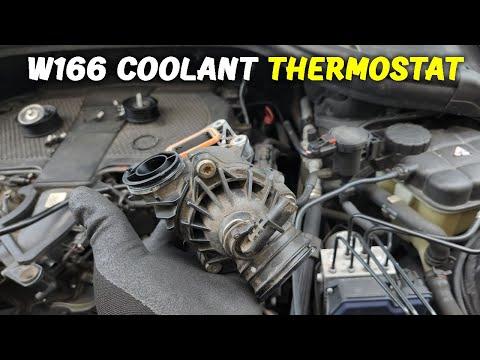

Step 5: Locate the thermostat housing and clear access

• The thermostat housing is typically at the front of the engine where the main coolant hose meets the engine.
• Unclip any electrical connector(s) on the housing using a pick tool (a small pointed tool used to lift locking tabs).
• Move wiring looms aside carefully; do not pull on wires.

Step 6: Remove coolant hoses from the thermostat housing

• Use hose clamp pliers to compress and slide spring clamps back on the hose.
• Twist the hose gently to break it free, then pull it off.
• Catch spills with shop towels and keep coolant off the belt area.

Step 7: Remove the thermostat housing

• Remove the housing fasteners using an E-Torx socket (commonly E10) and a ratchet.
• Pull the thermostat/housing off the engine. If it sticks, tap lightly with your hand—do not pry hard on aluminum surfaces.
• Remove and discard the old seal/O-ring if it stays behind.

Step 8: Clean the sealing surface

• Use shop towels to wipe the mating surface clean and dry.
• Use a pick tool only to lift old rubber residue—do not gouge the aluminum.

Step 9: Install the new thermostat assembly

• Install the new seal/O-ring (usually comes with the thermostat assembly).
• Position the thermostat housing and start all bolts by hand to avoid cross-threading.
• Tighten with a torque wrench:
  • If the bolts are M6: Torque to 10 Nm (89 in-lbs)
  • If the bolts are M8: Torque to 22 Nm (16 ft-lbs)
• Tip: Snug evenly, then final torque.

Step 10: Reconnect hoses and electrical connector(s)

• Push hoses fully onto their fittings.
• Reposition clamps using hose clamp pliers.
• Reconnect any electrical connector(s) until the lock clicks.

Step 11: Reinstall intake parts and undertray

• Reinstall intake ducting and tighten clamps using an 8mm socket or flathead screwdriver.
• Reinstall the engine cover by pressing straight down.
• Reinstall the undertray using T25 Torx bit and T30 Torx bit.

Step 12: Refill and bleed the cooling system

• Lower the SUV from the jack stands using the floor jack.
• Mix coolant with distilled water as required (commonly 50/50) and pour slowly using a funnel (spill-proof).
• Start the engine and set HVAC to MAX HEAT with the fan on medium.
• Let it idle and watch the temperature gauge. As the thermostat opens, the coolant level may drop—top off as needed.
• When warm, squeeze the upper radiator hose carefully (gloved hand) to help move trapped air.
• Install the reservoir cap once the level stabilizes.

---

✅ After Repair

• Check for leaks around the thermostat housing and all hose connections with the engine running.
• Test drive 10–15 minutes, then let it cool and recheck the coolant level; top off to the correct mark.
• If a check engine light was on, scan and clear codes after confirming no leaks (a basic OBD2 scanner is fine for reading codes).
• Make sure cabin heat works normally and the temperature stays steady.

---

💰 DIY vs Shop Cost

Shop Cost: $600-$1,100 (parts + labor)

DIY Cost: $80-$250 (parts only)

You Save: $350-$1,000 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
