🔧 CX-9 - Thermostat Replacement

The thermostat controls coolant flow to keep your engine at the correct operating temperature. If it sticks open you may get low heat and poor warm-up; if it sticks closed you can overheat. This job involves draining coolant, removing the thermostat housing, and refilling/bleeding the cooling system.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

Assumption: Access is through the lower radiator hose/thermostat housing at the front-lower engine; layouts can vary slightly by build.

---

⚠️ Safety & Precautions

• ⚠️ Only work on a fully cool engine (hot coolant can cause severe burns).
• ⚠️ Never open the coolant reservoir cap when hot; loosen slowly only when cold.
• ⚠️ Support the CX-9 with jack stands on solid ground—never rely on a jack alone.
• ⚠️ Keep coolant off belts, electrical connectors, and the alternator area.
• ⚠️ Battery disconnect is not usually required, but keep tools clear of the battery positive terminal to avoid a short.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Wheel chocks
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Drain pan (at least 10-quart)
• Spill-free funnel kit (specialty)
• 3/8" drive ratchet
• 3/8" drive torque wrench (10–80 ft-lbs range)
• Socket set: 8mm, 10mm, 12mm
• 3/8" drive extension set
• Hose clamp pliers (specialty)
• Trim clip removal tool
• Flat-blade screwdriver
• Pick tool set
• Plastic gasket scraper
• Shop rags
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Engine thermostat - Qty: 1
• Thermostat housing seal/O-ring (if not included) - Qty: 1
• Mazda FL22 coolant (premixed) - Qty: 2-3 gallons
• Replacement hose clamps (optional, if originals are weak) - Qty: 1-2

---

📋 Before You Begin

• 🧰 Park on level ground, set the parking brake, and place wheel chocks at the rear wheels.
• 🧊 Let the engine cool completely (ideally sit overnight).
• 🪣 Position a drain pan under the radiator drain area before opening the cooling system.
• 📌 Hose clamp pliers are designed to squeeze spring clamps safely and evenly (they prevent the clamp from slipping).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise the front safely (for access)

• Use a floor jack (rated 3-ton minimum) to lift the front at the proper jacking point.
• Set the vehicle onto jack stands (rated 3-ton minimum).
• Give the vehicle a gentle shake to confirm it’s stable.

Step 2: Remove the lower engine cover (if equipped)

• Use a trim clip removal tool to remove plastic clips.
• Use a 10mm socket and 3/8" drive ratchet to remove any bolts.
• Set the cover and hardware aside in a small pile so nothing gets lost.

Step 3: Drain the coolant

• Place the drain pan (at least 10-quart) under the radiator drain.
• Slowly loosen the coolant reservoir cap by hand (only if the engine is cold).
• Open the radiator drain using a flat-blade screwdriver if needed, and let coolant drain into the pan.
• Keep coolant off drive belts.

Step 4: Access the thermostat housing

• Follow the lower radiator hose to where it meets the engine—this is typically the thermostat housing area.
• If the air intake ducting blocks access, loosen clamps with a flat-blade screwdriver and remove any fasteners with a 10mm socket, then move the duct aside.
• Use a flashlight to confirm you can see the housing bolts and hose connection.

Step 5: Disconnect the lower radiator hose from the housing

• Use hose clamp pliers (specialty) to compress the spring clamp and slide it back on the hose.
• Twist the hose gently to break it free; use a pick tool set carefully around the edge if it’s stuck.
• Pull the hose off and aim it into the drain pan to catch any remaining coolant.
• Twist first—don’t just yank.

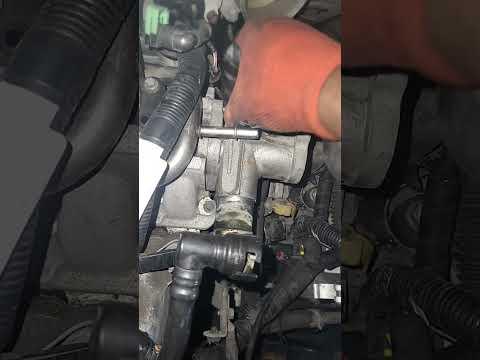

Step 6: Remove the thermostat housing

• Use a 10mm socket, 3/8" drive ratchet, and 3/8" drive extension to remove the thermostat housing bolts.
• Pull the housing straight off. Have shop rags ready—more coolant will spill.
• Remove the thermostat and its seal/O-ring.

Step 7: Clean the sealing surfaces

• Use a plastic gasket scraper to clean old residue off the housing and engine mating surface.
• Wipe clean with shop rags. The surface should be clean and dry.
• Don’t gouge aluminum surfaces.

Step 8: Install the new thermostat and seal

• Install the new seal/O-ring onto the new thermostat (or into the housing, depending on design).
• Install the thermostat in the same orientation as the old one.
• Reinstall the housing and hand-start all bolts to avoid cross-threading.
• Use a 10mm socket to snug bolts evenly.
• Use a 3/8" drive torque wrench (10–80 ft-lbs range) to tighten housing bolts: Torque to 10 N·m (89 in-lbs).

Step 9: Reconnect the hose and reinstall removed parts

• Push the lower radiator hose fully onto the housing.
• Use hose clamp pliers (specialty) to reposition the clamp in the same spot it was originally.
• Reinstall any intake ducting using a flat-blade screwdriver and 10mm socket as needed.
• Reinstall the lower engine cover using a trim clip removal tool and 10mm socket.

Step 10: Refill and bleed the cooling system

• Insert the spill-free funnel kit (specialty) onto the coolant reservoir opening.
• Slowly add Mazda FL22 coolant (premixed) until the level stabilizes.
• Start the engine and let it idle. Set HVAC to full hot and low fan.
• Watch for air bubbles in the funnel; keep the coolant level from dropping too low.
• Let the engine reach operating temp and wait for the radiator fan to cycle at least once.
• Shut off the engine, let it cool, then top off to the “FULL” mark.
• Small bubbles are normal at first.

---

✅ After Repair

• ✅ Test drive 10–15 minutes while watching the temperature gauge.
• ✅ Recheck for leaks around the thermostat housing and the lower radiator hose connection using a flashlight.
• ✅ After the engine fully cools, recheck coolant level and top off with Mazda FL22 coolant (premixed) if needed.
• ✅ If you notice gurgling behind the dash or no cabin heat, there’s likely trapped air—repeat the bleed process.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$650 (parts + labor)

DIY Cost: $60-$180 (parts only)

You Save: $170-$590 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2.0-3.0 hours.

---
