🔧 IS - Thermostat Replacement

The thermostat controls engine warm-up and operating temperature. Replacing it usually means draining some coolant, removing the thermostat housing, installing a new thermostat + seal, then refilling and bleeding air from the cooling system.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

Assumption: 2.0L turbo (8AR-FTS) layout; access may vary slightly.

---

⚠️ Safety & Precautions

• ⚠️ Work only on a fully cold engine; hot coolant can cause severe burns.
• ⚠️ Support the car with jack stands; never rely on a jack alone.
• ⚠️ Keep coolant off belts/alternator connectors; wipe spills immediately.
• ⚠️ Dispose of coolant properly; it’s toxic to people and pets.
• ⚠️ Battery disconnect is not required, but keep the key away from the car while hands are near fans.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• Drain pan (at least 10-quart)
• Funnel
• Spill-free coolant funnel kit
• 3/8" drive ratchet
• 3/8" drive torque wrench (10–80 ft-lbs range)
• 10mm socket
• 12mm socket
• 6" extension (3/8" drive)
• Pliers for hose clamps
• Trim clip removal tool
• Flat-blade screwdriver
• Plastic scraper
• Shop towels

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Engine thermostat - Qty: 1
• Thermostat seal / O-ring gasket - Qty: 1
• Toyota/Lexus Super Long Life Coolant (pink, premixed) - Qty: 2 gallons
• Replacement hose clamp(s) - Qty: 1-2

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear wheels.
• Let the engine cool completely (ideally overnight).
• Set your HVAC to HI heat and low fan later during bleeding (this helps move coolant through the heater core).
• Position a drain pan under the radiator area before opening any drain.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise the front and remove the lower cover

• Use a floor jack (rated 3-ton minimum) to lift the front jack point, then set the car onto jack stands (rated 3-ton minimum).
• Use a trim clip removal tool and 10mm socket to remove the engine undercover/splash shield fasteners.

Step 2: Drain coolant (partial drain is usually enough)

• Place a drain pan (at least 10-quart) under the radiator drain area.
• Slowly remove the coolant reservoir cap (only if cold).
• Open the radiator drain cock using a flat-blade screwdriver if needed, and drain until the level is below the thermostat housing (usually 1–2 gallons).

Step 3: Create access to the thermostat housing

• Use a 10mm socket and flat-blade screwdriver to loosen/remove the air intake ducting or resonator pieces blocking access.
• Bag bolts/clips by step to stay organized.

Step 4: Remove the hose from the thermostat housing

• Locate the thermostat housing at the engine-side end of the radiator hose.
• Use pliers for hose clamps to compress and slide the clamp back on the hose.
• Twist the hose gently to break it loose, then pull it off. Keep the drain pan underneath—more coolant will spill.

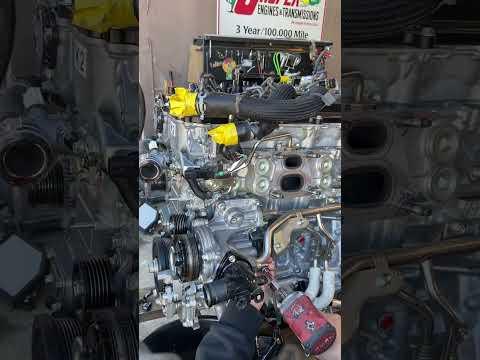

Step 5: Remove the thermostat housing

• Use a 10mm socket (and 6" extension (3/8" drive) as needed) to remove the thermostat housing bolts.
• Carefully separate the housing. If it’s stuck, use a plastic scraper—do not pry hard on aluminum surfaces.

Step 6: Replace the thermostat and seal

• Remove the old thermostat and the old seal / O-ring gasket.
• Clean both mating surfaces using a plastic scraper and shop towels until they are smooth and dry.
• Install the new seal and thermostat in the same orientation as removed (the “jiggle valve”/bleed pin, if present, should be positioned at the top).
• Wrong orientation can cause overheating.

Step 7: Reinstall the thermostat housing

• Reinstall the housing and start bolts by hand to avoid cross-threading.
• Use a 3/8" drive torque wrench (10–80 ft-lbs range) to tighten evenly.
• Torque to 10 N·m (89 in-lbs) for typical Toyota/Lexus thermostat housing bolts.

Step 8: Reconnect hose and reassemble intake/undercover

• Reinstall the radiator hose and position the clamp using pliers for hose clamps.
• Reinstall any intake ducting using a 10mm socket and flat-blade screwdriver.
• Reinstall the splash shield using a trim clip removal tool and 10mm socket.

Step 9: Refill and bleed the cooling system

• Lower the car from jack stands (rated 3-ton minimum) using the floor jack (rated 3-ton minimum).
• Fill the reservoir and/or radiator fill point (as equipped) using a spill-free coolant funnel kit with Toyota/Lexus Super Long Life Coolant (pink, premixed).
• Start the engine and let it idle with the heater set to hot.
• As the engine warms up, watch for air bubbles in the funnel and add coolant as needed.
• When the cooling fans cycle and heat blows hot, lightly rev to ~2,000 rpm for 10–15 seconds a few times to help purge air.
• Shut the engine off, let it cool fully, then top off the reservoir to the correct level using a funnel.

---

✅ After Repair

• Check for leaks around the thermostat housing and hose connections with the engine running.
• Verify the temperature gauge stays normal during a 10–15 minute test drive.
• After the test drive and a full cool-down, recheck the coolant level and top off if needed.
• If you hear gurgling behind the dash, there’s still air in the system—repeat the bleed process.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$750 (parts + labor)

DIY Cost: $60-$180 (parts only)

You Save: $170-$690 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
