🔧 Sedona - Thermostat Replacement

Your Sedona’s thermostat controls engine temperature by opening and closing to let coolant flow to the radiator. If it’s stuck open you may get weak heat and slow warm-ups; if stuck closed you can overheat quickly.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

Assumption: 3.3L V6 thermostat is in the lower radiator hose housing on the engine.

---

⚠️ Safety & Precautions

• ⚠️ Never open the coolant cap on a hot engine; severe burns can occur.
• ⚠️ Support the van with jack stands; never rely on a floor jack alone.
• ⚠️ Keep coolant off belts and electrical connectors; wipe spills immediately.
• ⚠️ Coolant is toxic—collect in a drain pan and dispose properly.
• 🔋 Battery disconnect is not required, but keep tools away from the radiator fan area.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Drain pan (at least 2-gallon)
• Funnel
• Shop towels
• Plastic trim tool
• Flathead screwdriver
• Hose clamp pliers
• Razor scraper
• 10mm socket
• 12mm socket
• 1/4" drive ratchet
• 3/8" drive ratchet
• 3" extension
• Torque wrench (inch-pound or Nm)
• Pick tool

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Engine thermostat - Qty: 1
• Thermostat O-ring / gasket - Qty: 1
• Engine coolant (compatible Asian phosphate-OAT type) - Qty: 2-3 gallons (mixed as directed)
• Hose clamp (worm-gear or OEM-style) - Qty: 1-2 (only if clamps are weak/damaged)
• RTV silicone gasket maker - Qty: 1 (only if your housing uses RTV instead of an O-ring)

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear tires.
• Let the engine cool fully (best: sit overnight).
• Set the HVAC to HOT before refilling later; this helps coolant flow through the heater core.
• Have a plan to capture and store old coolant in a sealed container.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise the front and remove the lower splash shield (if equipped)

• Use a floor jack (rated 3-ton minimum) to lift the front jacking point, then support with jack stands (rated 3-ton minimum).
• Use a plastic trim tool and flathead screwdriver to remove splash shield clips/screws.

Step 2: Drain enough coolant to get below thermostat level

• Place a drain pan (at least 2-gallon) under the radiator drain area.
• Slowly remove the radiator cap (only if fully cool) and open the drain using a flathead screwdriver if needed.
• Drain until flow slows, then close the drain. Use shop towels to wipe spills.
• Save clean coolant only if it’s fresh.

Step 3: Gain access to the thermostat housing

• Remove the air intake duct if it blocks access: loosen clamps with a flathead screwdriver and remove fasteners using a 10mm socket and 1/4" drive ratchet.
• Locate the thermostat housing by following the lower radiator hose to the engine.

Step 4: Remove the lower radiator hose from the thermostat housing

• Use hose clamp pliers to compress the clamp and slide it back on the hose.
• Twist the hose gently to break it loose, then pull it off the housing. Catch remaining coolant in the drain pan.
• If the hose is stuck, use a pick tool carefully around the hose end to release it without tearing the rubber.

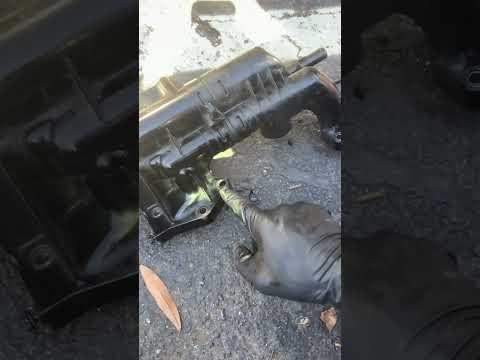

Step 5: Remove the thermostat housing

• Use a 10mm socket or 12mm socket (varies by bolt) with a 3/8" drive ratchet and 3" extension to remove the housing bolts.
• Remove the housing and thermostat. Note the thermostat orientation before removal.

Step 6: Clean surfaces and install the new thermostat

• Use shop towels to dry the area.
• Clean the mating surfaces using a razor scraper (light pressure only). Do not gouge aluminum.
• Install the new thermostat in the same orientation as the old one.
• Install the new thermostat O-ring / gasket. If your setup uses RTV, apply a thin continuous bead of RTV silicone gasket maker as directed on the product label.

Step 7: Reinstall the housing and hose

• Reinstall housing bolts by hand first to avoid cross-threading.
• Use a torque wrench (inch-pound or Nm) (a torque wrench measures tightening force) to tighten evenly: Torque to 10 Nm (89 in-lb).
• Reinstall the lower hose and position the clamp using hose clamp pliers.
• Reinstall the intake duct using a 10mm socket and flathead screwdriver.

Step 8: Refill and bleed air from the cooling system

• Use a funnel to refill with the correct engine coolant.
• Start the engine and let it idle with the radiator cap off until the thermostat opens (upper hose gets hot) and the coolant level stabilizes.
• Top off as needed. Watch for bubbles (air purging) and keep the level from dropping too low.
• Install the cap, then let the engine reach normal temperature while checking for leaks at the housing and hose.
• Heat on high helps purge trapped air.

---

✅ After Repair

• Check for leaks with the engine running and again after a full cool-down.
• Verify the temperature gauge stays normal and the cabin heater blows hot.
• After 1-2 drive cycles, recheck coolant level and top off using a funnel.
• If the engine overheats or you get no heat, shut it off and re-bleed—air may still be trapped.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$750 (parts + labor)

DIY Cost: $40-$150 (parts only)

You Save: $200-$600 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
