🔧 Wrangler - Thermostat Replacement

On your Wrangler, the thermostat regulates engine temperature by controlling coolant flow to the radiator. If it sticks open you may run cool (poor heat, slow warm-up); if it sticks closed you can overheat. Replacing it means draining some coolant, swapping the thermostat/housing at the front of the engine, then refilling and bleeding air out.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

Assumption: 3.6L Pentastar uses a thermostat integrated in a front housing with the upper radiator hose attached.

---

⚠️ Safety & Precautions

• ⚠️ Never open the cooling system hot; wait until the engine is fully cool.
• ⚠️ Coolant is toxic; keep away from kids/pets and clean spills immediately.
• ⚠️ Support the Jeep safely if you raise it; never rely on a jack alone.
• ⚠️ Dispose of old coolant properly; do not pour onto the ground.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Drain pan (at least 10 quarts)
• Funnel
• Trim clip removal tool
• Flathead screwdriver
• 8mm socket
• 10mm socket
• 13mm socket
• 3/8" ratchet
• 3/8" extensions (3" and 6")
• Torque wrench (inch-pound)
• Hose clamp pliers
• Gasket scraper (plastic)
• Shop towels

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Thermostat assembly (thermostat with housing) - Qty: 1
• Engine coolant (OAT, 50/50 premix) - Qty: 2-3 gallons
• Upper radiator hose clamp - Qty: 1
• Upper radiator hose - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Let the engine cool completely (radiator hoses should feel cool).
• Set the HVAC to HI heat (this helps coolant flow through the heater core during bleeding).
• Place a large drain pan under the radiator area before opening anything.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the air intake tube for access

• Use a flathead screwdriver or 8mm socket to loosen the intake hose clamps.
• Unclip/remove the intake tube and set it aside.
• Take a quick photo first for routing.

Step 2: Drain coolant to below thermostat level

• Position the drain pan (at least 10 quarts) under the radiator.
• Slowly remove the coolant pressure cap (only when cool).
• If equipped with a radiator drain (petcock), open it using a flathead screwdriver and drain 1–2 gallons.
• If no petcock access, you can loosen the lower radiator hose clamp using hose clamp pliers and carefully crack the hose loose to drain.

Step 3: Disconnect the upper radiator hose at the thermostat housing

• Follow the upper radiator hose to the front of the engine where it meets the thermostat housing.
• Use hose clamp pliers to slide the clamp back, then twist/pull the hose off.
• Catch any remaining coolant with the drain pan.
• Twist the hose to break it free.

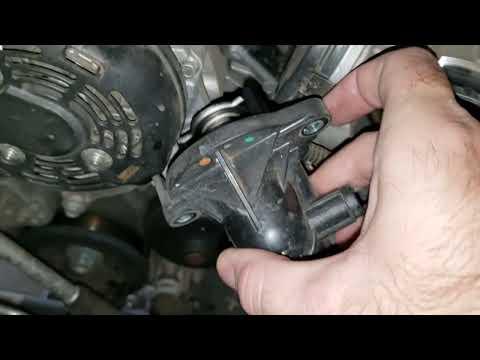

Step 4: Remove the thermostat housing

• Remove the housing mounting bolts using a 10mm socket, 3/8" ratchet, and extensions as needed.
• Lift the thermostat housing off and remove the old sealing surface material carefully.
• Use a gasket scraper (plastic) and shop towels to clean the mating surface until it is smooth and dry.

Step 5: Install the new thermostat assembly

• Place the new thermostat/housing into position (do not pinch the seal).
• Start all bolts by hand to avoid cross-threading.
• Tighten bolts evenly using a 10mm socket, then final-tighten using a torque wrench (inch-pound).
• Torque to 12 Nm (106 in-lbs)
• Snug first, then torque in a crisscross pattern.

Step 6: Reconnect hoses and reinstall the intake

• Reinstall the upper radiator hose and position the clamp using hose clamp pliers.
• If you’re replacing the clamp, install the new one in the same location as the original.
• Reinstall the air intake tube and tighten clamps using a flathead screwdriver or 8mm socket.

Step 7: Refill and bleed the cooling system

• Close the radiator drain (or reinstall/secure the lower hose) using a flathead screwdriver or hose clamp pliers.
• Refill with engine coolant (OAT, 50/50 premix) using a funnel until full.
• If your housing has a bleeder screw, crack it open with an 8mm socket while filling until coolant flows without bubbles, then close it.
• Start the engine and let it idle; keep the heater set to HI.
• As the engine warms up, top off coolant as the level drops. Watch for leaks around the housing and hose connection.
• When the temperature stabilizes and you have steady heat from the vents, shut the engine off and let it cool fully, then recheck and top off again.

---

✅ After Repair

• Inspect for leaks at the thermostat housing and hose clamps with the engine running and again after a full cool-down.
• Verify normal operating temperature on the gauge and confirm strong cabin heat.
• Recheck coolant level the next morning (cold) and top off if needed.
• Rinse any spilled coolant off painted surfaces with water.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$650 (parts + labor)

DIY Cost: $60-$180 (parts only)

You Save: $170-$590 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
