🔧 QX50 - Thermostat Replacement

Replacing the thermostat fixes overheating, slow warm-up, or weak cabin heat caused by a thermostat that’s stuck closed or open. On your QX50, the thermostat sits in the coolant outlet/housing at the front of the engine and requires draining coolant and resealing the housing.

Difficulty Level: Intermediate | Estimated Time: 1.5-3 hours

---

⚠️ Safety & Precautions

• ⚠️ Only work on a fully cold engine; hot coolant can spray and burn you.
• ⚠️ Wear safety glasses and gloves; coolant is toxic and slippery.
• ⚠️ Keep coolant away from pets and kids; clean spills immediately.
• ⚠️ Support the vehicle securely on jack stands if you raise it.
• ⚠️ Do not open the radiator cap when hot; pressure can cause a geyser.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Drain pan (10-quart minimum)
• Funnel
• Metric socket set 8mm-14mm
• 3/8" drive ratchet
• 3/8" drive torque wrench (10-80 ft-lbs)
• Extension set (3" and 6")
• Phillips screwdriver
• Hose clamp pliers
• Trim clip tool
• Plastic gasket scraper
• Brake cleaner spray
• Shop rags
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Engine thermostat - Qty: 1
• Thermostat O-ring / gasket - Qty: 1
• Engine coolant (Asian vehicle blue, 50/50) - Qty: 2-3 gallons
• Radiator drain plug gasket (if equipped) - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear wheels.
• Let the engine cool completely (overnight is best).
• Set the climate control to full HOT before you start; this helps air purge later.
• Raise the front only if you need room to access the splash shield; support with jack stands.
• Assumption: Stock cooling system, no aftermarket hoses or intake.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the lower splash shield (if needed)

• Remove the underbody clips and bolts using a trim clip tool and 10mm socket.
• Slide the shield out and set it aside.

Step 2: Drain coolant

• Place a drain pan under the radiator drain area.
• Slowly remove the radiator cap by hand (engine cold only).
• Open the radiator drain cock by hand or with Phillips screwdriver (depending on style) and drain coolant.

Step 3: Remove the intake duct for access

• Loosen the intake duct clamps using a Phillips screwdriver.
• Remove any duct/airbox bolts using a 10mm socket, then lift the ducting out.

Step 4: Remove the coolant hose(s) from the thermostat housing

• Use hose clamp pliers to compress the spring clamp and slide it back on the hose.
• Twist the hose gently by hand to break it free, then pull it off.
• If it’s stuck, twist—don’t pry hard.

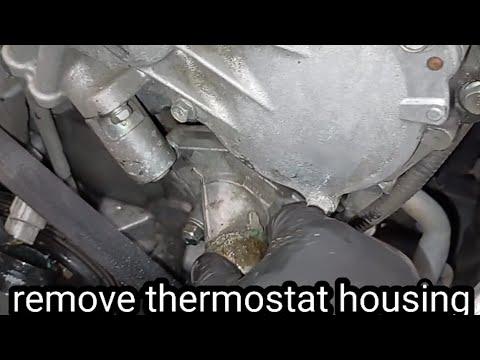

Step 5: Remove the thermostat housing

• Remove the housing bolts using a 10mm socket with a 3" extension.
• Pull the housing straight off; some coolant will spill, so keep the drain pan underneath.

Step 6: Replace the thermostat and seal

• Note the thermostat orientation before removal (spring side typically faces the engine).
• Remove the old thermostat by hand.
• Remove the old O-ring/gasket and clean both mating surfaces using a plastic gasket scraper, brake cleaner spray, and shop rags.
• Install the new thermostat and new O-ring/gasket (lightly wet the O-ring with fresh coolant so it doesn’t pinch).

Step 7: Reinstall the housing and hose(s)

• Reinstall the housing and start all bolts by hand to avoid cross-threading.
• Tighten evenly using a 3/8" drive torque wrench; Torque to OEM specification.
• Reinstall the hose(s) fully seated, then move the clamp back into position using hose clamp pliers.

Step 8: Reinstall intake ducting and splash shield

• Reinstall the intake duct and tighten clamps using a Phillips screwdriver.
• Reinstall duct/airbox bolts using a 10mm socket.
• Reinstall the splash shield using a 10mm socket and trim clip tool.

Step 9: Refill and bleed the cooling system

• Close the radiator drain cock by hand (snug only).
• Refill coolant slowly at the radiator fill neck using a funnel until full, then fill the overflow tank to the MAX line.
• Start the engine and let it idle with the radiator cap off until the coolant level stabilizes.
• Turn the heater to HOT and the fan to medium; watch for steady heat (this confirms coolant flow through the heater core).
• As the thermostat opens, the level may drop—top off as needed.
• Install the radiator cap, then bring RPM to about 2,000 for 30-60 seconds and let it return to idle.
• Shut off, let it cool полностью, then recheck and top off the radiator and overflow tank.

---

✅ After Repair

• Check for leaks around the thermostat housing and hose connections while idling.
• Verify the temperature gauge stays normal and cabin heat works.
• Test drive 10-15 minutes, then recheck coolant level after a full cool-down.
• If you see overheating or no heat, stop driving and re-bleed the system.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$750 (parts + labor)

DIY Cost: $40-$140 (parts only)

You Save: $310-$610 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3 hours.

---
