🔧 Veloster - Thermostat Replacement

Your A4’s thermostat regulates engine temperature by controlling coolant flow to the radiator. If it sticks open you’ll run cool (poor heat, low MPG), and if it sticks closed you’ll overheat—replacing it restores proper temperature control.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Never open the coolant cap on a hot engine; pressurized coolant can cause burns.
• ⚠️ Support the car with jack stands; never rely on a floor jack alone.
• ⚠️ Keep coolant off belts and electrical connectors; wipe spills immediately.
• ⚠️ Coolant is toxic to people and pets; catch and dispose of it properly.
• Battery disconnect is not required for this repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Drain pan (at least 10-quart)
• Funnel
• Shop rags
• Trim clip remover
• Flathead screwdriver
• Needle-nose pliers
• 3/8" ratchet
• 3/8" extension (6")
• 10mm socket
• 12mm socket
• Torque wrench (5–30 Nm range)
• Plastic gasket scraper

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Engine thermostat - Qty: 1
• Thermostat housing gasket / O-ring - Qty: 1
• Hyundai/Kia long-life coolant (P-OAT), premixed 50/50 - Qty: 2 gallons
• Hose clamps (worm-gear or OEM-style) - Qty: 2

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear wheels.
• Let the engine cool fully (cold upper radiator hose is a good sign).
• Set the HVAC to heat later during bleeding (this helps move coolant through the heater core).
• Assumption: Thermostat is in the engine-side coolant outlet housing on the 1.6L turbo; access is from the top/front area.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise the front and remove the lower splash shield

• Use a floor jack to lift the front jacking point and place jack stands under the front support points.
• Use a trim clip remover and 10mm socket to remove the clips/bolts holding the lower splash shield (undertray), then set it aside.

Step 2: Drain the coolant

• Place a drain pan (at least 10-quart) under the radiator drain area.
• Slowly loosen the coolant reservoir cap to relieve any remaining pressure.
• Open the radiator drain (petcock) using a flathead screwdriver (turn gently—plastic is easy to strip).
• Let coolant drain until flow slows to a drip, then close the petcock snugly by hand with the flathead screwdriver (do not overtighten).
• Tip: Pour drained coolant into sealed containers.

Step 3: Remove intake ducting for access (top side)

• Open the hood and remove the engine cover if equipped (pull up firmly by hand).
• Use a flathead screwdriver to loosen the hose clamps on the intake duct, then remove the duct and set it aside.
• If any clips are in the way, use a trim clip remover to pop them out without breaking them.

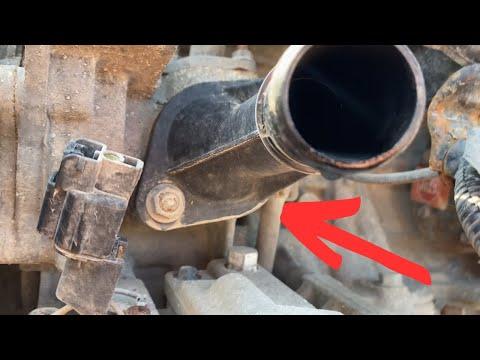

Step 4: Locate the thermostat housing and remove hoses

• Find the thermostat housing by following the upper radiator hose to where it meets the engine.
• Use needle-nose pliers to slide spring clamps back (a spring clamp is a pinch-style clamp that reuses tension instead of a screw).
• Twist the hose to break it free, then pull it off. Catch drips with shop rags and the drain pan.

Step 5: Remove the thermostat housing

• Use a 10mm socket with a 3/8" ratchet and 3/8" extension (6") to remove the thermostat housing bolts.
• Carefully separate the housing from the engine. If it’s stuck, tap gently by hand—do not pry hard on aluminum mating surfaces.
• Remove the thermostat and the old gasket/O-ring.

Step 6: Clean the sealing surface

• Use a plastic gasket scraper to clean the engine mating surface and housing surface.
• Wipe clean with shop rags until dry and smooth.
• Tip: No gouges—scratches can cause leaks.

Step 7: Install the new thermostat and gasket/O-ring

• Install the new thermostat in the same orientation as the old one.
• Install the new gasket/O-ring (lightly wetting an O-ring with fresh coolant can help it seat).
• Reinstall the housing and start bolts by hand to avoid cross-threading.
• Tighten housing bolts evenly using a 10mm socket.
• Torque to 10 Nm (7 ft-lbs) using a torque wrench (5–30 Nm range).

Step 8: Reconnect hoses and reinstall intake ducting

• Slide hoses fully onto their fittings, then reposition clamps using needle-nose pliers.
• If any clamp feels weak or distorted, replace it with new hose clamps.
• Reinstall the intake ducting and tighten clamps using a flathead screwdriver.

Step 9: Reinstall the splash shield and lower the car

• Reinstall the undertray using a 10mm socket and trim clip remover.
• Lower the car safely using the floor jack, then remove jack stands and wheel chocks.

Step 10: Refill and bleed the cooling system

• Insert a funnel and fill the reservoir with Hyundai/Kia long-life coolant (P-OAT), premixed 50/50 up to the MAX line.
• Start the engine and set the heater to HOT and fan to medium.
• Let it idle. As it warms up, add coolant as the level drops.
• Once the thermostat opens (upper radiator hose gets hot), hold idle around 1,500 RPM for 30–60 seconds and continue topping off.
• Turn the engine off, let it cool, then recheck and top off to MAX.
• Tip: Squeeze upper hose to burp air.

---

✅ After Repair

• Check for leaks around the thermostat housing and hose connections with the engine running.
• Road test 10–15 minutes and watch the temperature gauge for normal operation.
• After a full cool-down, recheck coolant level and top off to the MAX line.
• If you get overheating or no cabin heat, stop and re-bleed—air is still trapped.

---

💰 DIY vs Shop Cost

Shop Cost: $300-$650 (parts + labor)

DIY Cost: $45-$140 (parts only)

You Save: $255-$510 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
