🔧 Elantra - Thermostat Replacement

The thermostat controls engine temperature by opening and closing coolant flow to the radiator. If it sticks open you may get low heat and poor fuel economy; if it sticks closed the engine can overheat. This job involves draining some coolant, removing the thermostat housing, and refilling/bleeding the cooling system.

Difficulty Level: Intermediate | Estimated Time: 1.5-3 hours

---

⚠️ Safety & Precautions

• ⚠️ Never open the radiator cap on a hot engine; hot coolant can spray and burn.
• ⚠️ Support the car with jack stands before going underneath; never rely on a floor jack alone.
• ⚠️ Keep coolant off paint, belts, and the alternator; wipe spills immediately.
• ⚠️ Dispose of used coolant properly; it’s toxic to people and pets.
• ⚠️ Battery disconnect is not required, but keep hands/tools away from the cooling fan; it can turn on unexpectedly.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• Drain pan (at least 2-gallon)
• Metric socket set (8mm, 10mm, 12mm)
• 3/8" drive ratchet
• 3/8" drive extension set
• Torque wrench (inch-pound or small Nm range)
• Pliers for hose clamps
• Trim clip tool
• Flat screwdriver
• Funnel
• Shop towels
• Plastic scraper

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Engine thermostat - Qty: 1
• Thermostat housing gasket/O-ring - Qty: 1
• Engine coolant (Hyundai/Kia long-life, pre-mixed 50/50 or concentrate + distilled water) - Qty: 1-2 gallons
• Distilled water (if using concentrate coolant) - Qty: 1 gallon
• Hose clamp (optional, if original is weak) - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear wheels.
• Let the engine cool completely (coolant hoses should feel cool to the touch).
• Set the cabin heat to HOT during the refill/bleed later (this helps coolant flow through the heater core).
• Take a photo of hose routing first.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise the front and access the lower area

• Use a floor jack to lift the front jack point.
• Set the car onto jack stands and give the car a gentle push to confirm it’s stable.
• If equipped, remove the lower engine splash shield using a 10mm socket and trim clip tool.

Step 2: Drain enough coolant

• Place a drain pan under the radiator drain area.
• Slowly loosen the radiator cap to the first stop to release any leftover pressure (engine must be cold).
• Open the radiator drain (petcock) if accessible using a flat screwdriver, and drain about 1–2 gallons (enough so the thermostat housing area won’t spill heavily).
• Close the drain when finished (snug it; do not overtighten).

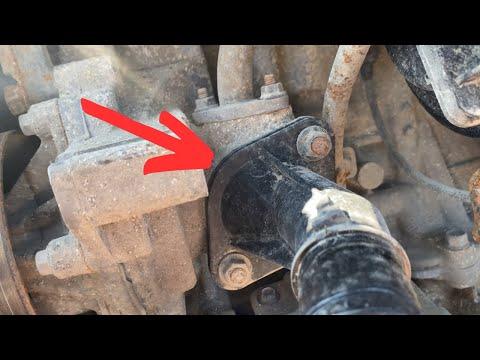

Step 3: Locate the thermostat housing

• From the front of the engine bay, follow the lower radiator hose to where it meets the engine—this connection is the thermostat housing area.
• Use shop towels to protect nearby components and catch drips.

Step 4: Remove the lower radiator hose from the housing

• Use pliers for hose clamps to compress the clamp and slide it back on the hose.
• Twist the hose by hand to break it free, then pull it off the housing (keep the drain pan underneath for spills).
• Twist first; pulling straight can tear the hose.

Step 5: Remove the thermostat housing

• Remove the thermostat housing bolts using a 10mm socket, 3/8" ratchet, and extension as needed.
• Carefully separate the housing; more coolant will drain, so keep the drain pan positioned.
• Remove the thermostat and the old gasket/O-ring.

Step 6: Clean the sealing surfaces

• Use a plastic scraper and shop towels to clean the mating surfaces.
• Do not gouge aluminum surfaces; they need to be smooth to seal.

Step 7: Install the new thermostat and gasket/O-ring

• Install the new thermostat in the same orientation as the old one.
• If your thermostat uses a “jiggle valve” (a tiny vent), position it at the top to help air escape.
• Install the new gasket/O-ring (do not reuse the old one).

Step 8: Reinstall the thermostat housing

• Start the housing bolts by hand to avoid cross-threading.
• Tighten evenly with a 10mm socket.
• Final tighten using a torque wrench (a torque wrench applies precise tightening force): Torque to 10 Nm (89 in-lbs).
• Overtightening can crack the housing.

Step 9: Reinstall the hose and clamps

• Push the hose fully onto the housing.
• Use pliers for hose clamps to move the clamp back to its original position.
• Wipe everything dry with shop towels so you can spot leaks later.

Step 10: Refill coolant

• Place a funnel in the radiator fill neck.
• Fill with Hyundai/Kia long-life coolant (50/50 mix). If using concentrate, mix with distilled water only.
• Fill the overflow reservoir to the correct line as well.

Step 11: Bleed air from the cooling system

• Start the engine and let it idle with the radiator cap off.
• Turn the heater to HOT and fan on low.
• Watch the coolant level; add coolant as it drops.
• Once the engine warms up, the thermostat should open and you’ll see flow and a level drop; top off again.
• “Bleeding” means removing trapped air so the engine doesn’t overheat; keep an eye out for bubbles.
• When bubbles mostly stop and the level stabilizes, install the radiator cap.

Step 12: Reinstall splash shield and lower the car

• Reinstall the splash shield using a 10mm socket and trim clip tool.
• Raise slightly with the floor jack, remove jack stands, and lower the car.

---

✅ After Repair

• Let the engine reach normal operating temperature and verify the heater blows hot.
• Check for leaks around the thermostat housing and hose connection using a flashlight and shop towels.
• After a full heat-soak and cool-down, recheck the reservoir level and top off if needed.
• If the temperature gauge rises abnormally or you hear gurgling, shut it off and re-bleed (air is still trapped).

---

💰 DIY vs Shop Cost

Shop Cost: $250-$500 (parts + labor)

DIY Cost: $40-$140 (parts only)

You Save: $110-$460 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3 hours.

---

🎯 Ready to get started?

Assumption: Torque listed is the typical spec for small thermostat housing bolts on your Elantra; if you have an OEM manual spec label/source, match it exactly.
