🔧 Civic - Thermostat Replacement

The thermostat controls coolant flow to help your engine warm up quickly and then stay at the correct temperature. If it sticks open you may get low heat and poor MPG; if it sticks closed the engine can overheat. This job is mostly access + careful coolant handling.

Difficulty Level: Intermediate | Estimated Time: 1.5-3 hours

Assumption: Stock cooling system with Honda-type coolant.

---

⚠️ Safety & Precautions

• ⚠️ Never open the cooling system hot; wait until fully cool.
• ⚠️ Coolant is toxic; keep away from kids/pets and clean spills.
• ⚠️ Support the car with jack stands before going underneath.
• ⚠️ Keep hands/tools clear of the radiator fan; it can turn on automatically.
• 🔋 Battery disconnect is not required, but keep the key away from the car while working near the fan.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• Drain pan (at least 2 gallons)
• Funnel with long neck
• Socket set: 8mm, 10mm, 12mm sockets
• 1/4" ratchet
• 3/8" ratchet
• 3" and 6" extensions
• Torque wrench (5–50 Nm range)
• Hose clamp pliers
• Trim clip remover
• Flathead screwdriver
• Shop rags

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Engine thermostat - Qty: 1
• Thermostat gasket / O-ring - Qty: 1
• Honda-compatible premixed coolant (Type 2 equivalent) - Qty: 1-2 gallons
• Replacement hose clamps (optional) - Qty: 1-2

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Let the engine cool completely (upper radiator hose should feel cool).
• Set your HVAC to heat later during bleeding: temperature to HOT, fan on LOW.
• If you raise the front, use a floor jack and support with jack stands at the proper lift points.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the lower splash shield (if equipped)

• Use a trim clip remover and flathead screwdriver to remove the clips/screws holding the under-cover.
• Set the clips aside so you don’t lose them.

Step 2: Drain the coolant

• Place a drain pan under the radiator drain.
• Open the drain plug slowly (typically hand-turn or small tool assist). Use shop rags to control splashes.
• Open the coolant fill cap to help it drain (only if the engine is fully cool).
• Tip: Keep coolant off belts and connectors.

Step 3: Remove the air intake duct (for access)

• Use an 8mm socket or flathead screwdriver to loosen the intake hose clamp(s).
• Use a 10mm socket to remove any air duct mounting bolts.
• Lift the duct/air tube out of the way carefully.

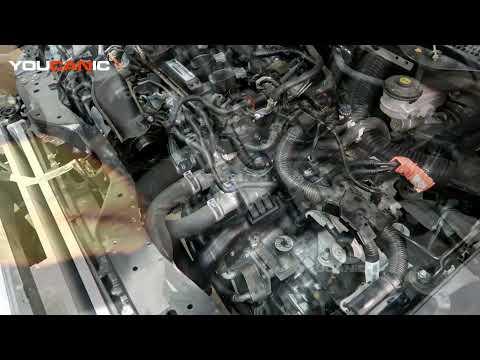

Step 4: Locate the thermostat housing

• The thermostat sits in the housing at the engine-side end of the lower radiator hose.
• Use a flashlight and look for the hose that runs from the radiator to the engine; follow it to the housing.

Step 5: Remove the lower radiator hose from the housing

• Use hose clamp pliers to squeeze the spring clamp and slide it back on the hose.
• Twist the hose gently to break it free, then pull it off.
• Have the drain pan positioned—more coolant will come out.
• Tip: Twisting breaks the seal without tearing the hose.

Step 6: Remove the thermostat housing

• Use a 10mm socket with a ratchet and extension to remove the thermostat housing bolts (usually 2 bolts).
• Pull the housing straight off. Use shop rags to catch coolant.

Step 7: Replace the thermostat and gasket

• Remove the old thermostat and gasket/O-ring.
• Clean the mating surfaces using shop rags (do not gouge the aluminum).
• Install the new gasket/O-ring and thermostat in the same orientation as removed.
• Tip: Do not use RTV unless the part kit specifies it.

Step 8: Reinstall the housing and hose

• Reinstall the housing bolts by hand first to avoid cross-threading.
• Use a torque wrench to tighten the housing bolts: Torque to 12 Nm (9 ft-lbs).
• Reinstall the lower radiator hose and position the clamp using hose clamp pliers.

Step 9: Reinstall the intake duct and splash shield

• Reinstall the intake duct using a 10mm socket as needed.
• Tighten the hose clamps with an 8mm socket or flathead screwdriver (snug, not stripped).
• Reinstall the under-cover using a trim clip remover and flathead screwdriver.

Step 10: Refill and bleed the cooling system

• Close the radiator drain plug firmly (do not over-tighten). If using a torque wrench: Torque to 3.5 Nm (2.6 ft-lbs).
• Use a funnel to fill with Honda-compatible premixed coolant to the proper level.
• Start the engine and let it idle with the cap off (if applicable) until the coolant begins to circulate and the level drops; keep topping up.
• Set cabin heat to HOT and fan LOW to help push air out of the heater core (the small radiator for cabin heat).
• Hold engine speed around 1,500–2,000 rpm for 30–60 seconds a few times to move air through.
• When bubbles stop and the radiator fan cycles on/off, install the cap and fill the overflow bottle to the MAX line.

---

✅ After Repair

• Check for leaks around the thermostat housing and hose connection while the engine is warm.
• Test drive 10–15 minutes, then recheck coolant level after the engine cools and top off if needed.
• Verify the heater blows hot and the temperature gauge stays normal.
• Dispose of old coolant properly (do not pour it on the ground).

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor)

DIY Cost: $35-$90 (parts only)

You Save: $160-$415 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3 hours.

---
