F-150 - Thermostat Replacement 🔧

Got it—you want to replace the thermostat on your 5.0L F-150. I’ll walk you through it step by step.

Quick check first: Are you replacing it because of an overheating / running cold issue, or just as maintenance?

Also, do you have a basic socket set and a drain pan already?

I’ll assume you’re working at home with basic tools and go from there.

Tools & Supplies 🧰

• 🔧 Tools
  • 1/4" and 3/8" drive ratchets – basic hand wrenches for sockets.
  • Socket set including: 8mm, 10mm, 13mm (Ford hose housing/engine cover sizes).
  • Short extensions (2–6") – help reach bolts comfortably.
  • Flat-blade screwdriver – to help with hose clamps if needed.
  • Pliers – for spring-style hose clamps.
  • Torque wrench (inch‑lb or low ft‑lb) – to tighten bolts correctly without cracking the housing.
  • Drain pan – shallow container to catch coolant.
  • Plastic trim tool (optional) – to help pry hoses gently without damage.
• 🧴 Parts & Fluids
  • Thermostat with housing & seal (recommended) – for the 5.0L, Ford often uses a housing-integrated thermostat; get an OEM-style assembly.
  • New hose clamp(s) (optional but smart if originals are rusty or weak).
  • Coolant: Motorcraft Orange OAT coolant (or equivalent that meets Ford spec for your year) – premixed 50/50 or concentrate plus distilled water.
  • Rags / paper towels.
  • Safety glasses & gloves.

F-150 - Safety & Prep ⚠️

• 🛑 Engine cool only
  • Make sure the engine is completely cool. Never open the cooling system on a hot engine—you can get burned by hot coolant and steam.
• 🔌 Battery safety
  • Not strictly required, but you can disconnect the negative battery cable with a 10mm socket if you want extra safety while working around the engine.
• 🌍 Coolant disposal
  • Coolant is toxic to pets and people. Keep it in a sealed container and dispose of it at a recycling center or shop.

F-150 - Thermostat Location 📍

• 📌 On the 5.0L:
  • Follow the upper radiator hose from the radiator toward the engine.
  • It connects to a thermostat housing bolted to the front of the engine (front passenger side area of the engine).
  • The thermostat sits inside this housing.

F-150 - Coolant Drain (Partial) 💧

You don’t need to drain the whole system, just enough so it doesn’t spill everywhere when you remove the housing.

• 🪣 Drain some coolant
  • Place your drain pan under the radiator drain (petcock) on the bottom of the radiator, usually on the passenger side.
  • Open the radiator cap slowly to release any residual pressure.
  • Open the drain valve and let out about 1–1.5 gallons of coolant.
  • Close the drain valve once done.

F-150 - Remove Components for Access 🧱

• 🔩 Engine cover (if equipped)
  • If your 5.0L has a plastic engine cover, remove any 8mm/10mm bolts or just pull up if it’s held by clips.
• 🧵 Upper radiator hose
  • Use pliers to squeeze the spring clamp (or screwdriver for a screw clamp) at the thermostat housing end.
  • Slide the clamp back along the hose.
  • Twist the hose gently to break it loose, then pull it off the housing. Don’t yank hard; you don’t want to crack the plastic housing.

F-150 - Remove Thermostat Housing & Thermostat 🛠️

• 🔧 Remove housing bolts
  • Locate the bolts holding the thermostat housing to the engine (usually 2 or 3 bolts, typically 8mm or 10mm).
  • Use your ratchet and appropriate socket to remove them.
  • Keep track of bolt length and position if they’re different.
• 📤 Separate the housing
  • Gently wiggle and pull the housing away from the engine.
  • A little coolant will spill—this is normal.
• ♨️ Remove the thermostat
  • Note the orientation of the old thermostat (which side faces the engine, which faces the hose).
  • Pull the thermostat out. It may have a rubber seal or O‑ring around it or integrated into the housing.

F-150 - Clean Surfaces 🧽

• 🧼 Clean the mating surfaces
  • Use a clean rag to wipe the engine-side surface where the housing seals.
  • Remove old gasket material or debris carefully. Do not scratch the aluminum surface.
  • Make sure the groove in the housing (if reusing) is clean for the new seal/O‑ring.

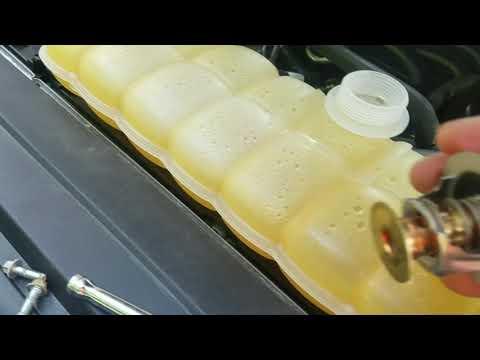

F-150 - Install New Thermostat ✅

• 📦 Prepare the new thermostat
  • If your new thermostat comes with a rubber seal/O‑ring, make sure it’s seated correctly in its groove.
  • On many Ford thermostats, the spring side faces the engine. Match the orientation of the old one.
• 📥 Install thermostat
  • Place the thermostat into the engine opening in the same orientation as the original.
  • Ensure it sits flat and fully seated.
• 🔁 Reinstall housing
  • Position the housing over the thermostat carefully.
  • Install the bolts by hand first to avoid cross-threading.
  • Tighten them evenly in a crisscross pattern.
  • Torque spec (typical Ford 5.0L housing bolts): about 89 in‑lb (10 Nm). Snug, not gorilla tight—the housing is usually plastic or light alloy.

F-150 - Reattach Hose & Refill Coolant 🧊

• 🧵 Reinstall upper radiator hose
  • Slide the hose back onto the thermostat housing until it seats fully.
  • Move the clamp back into its original position over the hose barb.
• 🧴 Refill coolant
  • Make sure the radiator drain is closed.
  • Fill the coolant reservoir with the correct coolant mix (50/50 if premixed, or as directed).
  • Fill to the MAX or FULL line on the reservoir.

F-150 - Bleed Air & Check Operation 🌡️

• 🚗 Warm up the engine
  • Start the engine with the reservoir cap off or loose (follow label on cap; some prefer loose, not fully off).
  • Turn the heater to full hot and fan on medium. This helps coolant circulate through the heater core.
  • Let the engine idle until it reaches normal operating temperature.
• 💨 Watch for air bubbles
  • As the engine warms, you may see bubbles in the reservoir—this is air purging from the system.
  • Top off coolant as the level drops, keeping it near the FULL line.
• 🌡️ Check thermostat function
  • Feel the upper radiator hose: it should stay cooler at first, then get hot once the thermostat opens.
  • Watch the temperature gauge: it should rise to normal and stay steady, not overheat.
• 🔒 Final steps
  • Once fully warm and stable, install and tighten the reservoir cap.
  • Shut off the engine and let it cool completely.
  • Recheck coolant level when cool and top off if needed.
  • Inspect around the thermostat housing and hose for any leaks.

F-150 - Common Beginner Tips 💡

• 🧠 Take pictures
  • Snap a photo of the thermostat orientation and hose routing before removal. Great backup if you forget how it was.
• 🪛 Stuck hose trick
  • If the hose is stuck, gently twist it back and forth instead of prying hard. You can slide a small flat screwdriver under the edge to break the seal, but be gentle.
• 💦 Coolant on belt
  • If coolant gets on the serpentine belt, wipe it off. A wet belt can squeal.
