🔧 Escape - Thermostat Replacement

Your thermostat controls engine temperature by opening and closing coolant flow to the radiator. If it sticks open you may get slow warm-up and poor heat; if it sticks closed you can overheat quickly. This job involves draining some coolant, swapping the thermostat, then refilling and bleeding air out of the cooling system.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Never open the coolant cap on a hot engine; let it cool fully first.
• ⚠️ The electric cooling fan can turn on by itself; disconnect the negative battery cable before working near the fan.
• ⚠️ Catch all coolant in a drain pan; coolant is toxic to people and pets.
• ⚠️ Support the Escape with jack stands if you go underneath; never rely on a jack alone.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Drain pan (at least 10-quart)
• Funnel
• 7mm socket
• 8mm socket
• 10mm socket
• 1/4" drive ratchet
• 1/4" drive extension set
• Torque wrench (inch-pound)
• Hose clamp pliers
• Trim clip removal tool
• Plastic scraper
• Shop rags
• Work light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Engine thermostat with seal - Qty: 1
• Thermostat housing gasket or O-ring - Qty: 1
• Engine coolant (Motorcraft Orange 50/50 prediluted) - Qty: 2 gallons
• Radiator hose clamp - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear wheels.
• Let the engine cool completely (ideally overnight).
• Disconnect the negative battery cable using a 10mm socket to prevent the cooling fan from starting unexpectedly.
• Place a drain pan under the radiator area. The radiator drain is a small valve called a draincock (a twist-open drain).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise the front and remove the lower splash shield

• Lift the front with a floor jack (rated 3-ton minimum) and support it on jack stands (rated 3-ton minimum).
• Remove the lower splash shield fasteners using a 7mm socket, 8mm socket, and trim clip removal tool.

Step 2: Drain coolant to below thermostat level

• Place the drain pan (at least 10-quart) under the radiator drain area.
• Open the radiator draincock slowly (by hand if possible, or carefully with the 8mm socket if applicable) and drain until the flow slows down.
• Close the draincock snugly when done. Don’t over-tighten plastic drains.

Step 3: Remove the air intake ducting for access

• Loosen the air intake clamps using a 7mm socket.
• Unclip/remove the intake duct and set it aside.

Step 4: Locate the thermostat housing and disconnect the hose

• Find the thermostat housing at the front of the engine where a radiator hose connects.
• Use hose clamp pliers to compress the hose clamp, slide it back, then twist and pull the hose off.
• Catch any remaining coolant with the drain pan and shop rags.

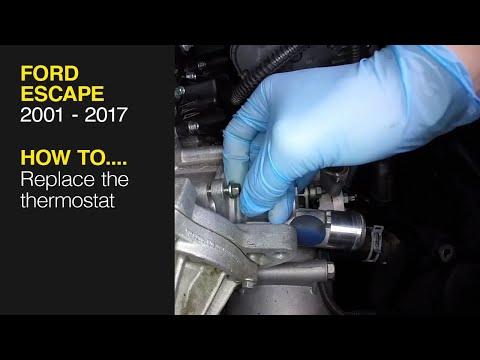

Step 5: Remove the thermostat housing

• Remove the thermostat housing bolts using a 10mm socket with a 1/4" drive ratchet and 1/4" drive extension set.
• Pull the housing off carefully. If it sticks, tap gently by hand and work it loose—do not pry hard against aluminum.

Step 6: Replace the thermostat and seal

• Remove the old thermostat and seal.
• Clean the mating surfaces using a plastic scraper and shop rags. The surface should be clean and dry.
• Install the new thermostat and new seal/gasket exactly as the old one sat.

Step 7: Reinstall thermostat housing and torque bolts

• Reinstall the thermostat housing and hand-start all bolts.
• Tighten evenly using a 10mm socket.
• Final tighten with a torque wrench (inch-pound): Torque to 10 Nm (89 in-lb).
• A torque wrench is a tool that tightens bolts to a specific safe tightness.

Step 8: Reconnect hose and reassemble intake

• Reinstall the coolant hose and position the clamp using hose clamp pliers.
• Reinstall the air intake duct and tighten clamps with a 7mm socket.

Step 9: Refill coolant and bleed air

• Lower the Escape off the jack stands (rated 3-ton minimum) using the floor jack (rated 3-ton minimum).
• Refill through the coolant reservoir (also called the degas bottle, which is the pressurized overflow tank) using a funnel.
• Reconnect the negative battery cable using a 10mm socket.
• Start the engine and set the heater to hottest temp and medium fan.
• Let it idle until it reaches normal temperature; keep an eye on the temperature gauge.
• Shut off engine, let it cool, then top off coolant to the correct level.
• Heat cycles help burp trapped air.

Step 10: Reinstall the lower splash shield

• If removed earlier, reinstall the splash shield using the 7mm socket, 8mm socket, and trim clip removal tool.

---

✅ After Repair

• Check for leaks around the thermostat housing and hose connection with the engine running and again after a short drive.
• Verify the heater blows hot and the temperature gauge stays steady at normal.
• Recheck coolant level the next morning when fully cold; top off if needed.
• Dispose of old coolant properly (most parts stores accept it).

---

💰 DIY vs Shop Cost

Shop Cost: $450-$850 (parts + labor)

DIY Cost: $60-$180 (parts only)

You Save: $270-$790 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
