🔧 Crosstrek - Thermostat Replacement

Your thermostat controls coolant flow so the engine warms up quickly and then stays at the correct temperature. If it’s stuck open you may get low heat and a slow warm-up; if stuck closed you can overheat. Replacing it means draining some coolant, swapping the thermostat and seal, then bleeding air from the cooling system.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

Assumption: 2.0L engine thermostat at lower radiator hose outlet.

---

⚠️ Safety & Precautions

• ⚠️ Only work on a fully cool engine; hot coolant can cause severe burns.
• ⚠️ Support the vehicle with jack stands; never rely on a floor jack alone.
• ⚠️ Keep coolant off belts/alternator and off the ground; it’s toxic to pets.
• ⚠️ If you raise the front, chock rear wheels and keep the car stable.
• 🔋 Battery disconnect is not required, but keep hands/tools away from the radiator fans (they can turn on unexpectedly).

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• Drain pan (at least 2-gallon)
• Shop towels
• 10mm socket
• 3/8" drive ratchet
• 3" extension (3/8" drive)
• Torque wrench (3/8" drive, 5–60 Nm range)
• Hose clamp pliers
• Pick tool
• Plastic trim clip tool
• Flat-blade screwdriver
• Spill-free coolant funnel kit (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Engine thermostat - Qty: 1
• Thermostat seal/O-ring - Qty: 1
• Subaru-compatible coolant (blue, premixed 50/50) - Qty: 2 gallons
• Lower radiator hose clamp - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Let the engine cool completely (radiator hoses should feel cool).
• Raise the front with a floor jack and support with jack stands under the front pinch welds or approved support points.
• Remove the radiator cap only after the engine is cool to release any leftover pressure safely.
• Hose clamp pliers squeeze spring clamps safely.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the lower splash shield (if equipped)

• Place a drain pan (at least 2-gallon) under the front of the engine.
• Use a plastic trim clip tool to pop out the plastic clips.
• Use a 10mm socket with a 3/8" drive ratchet to remove any 10mm bolts.
• Set the shield and clips aside.

Step 2: Drain enough coolant to get below thermostat level

• Slowly remove the radiator cap by hand (engine must be cool).
• Open the radiator drain (petcock) and let coolant drain into the drain pan (at least 2-gallon).
• If your Crosstrek has no easy petcock access, loosen the lower radiator hose clamp instead using hose clamp pliers and drain from the hose.
• Drain until the coolant level is below the lower radiator hose outlet.

Step 3: Access the thermostat housing

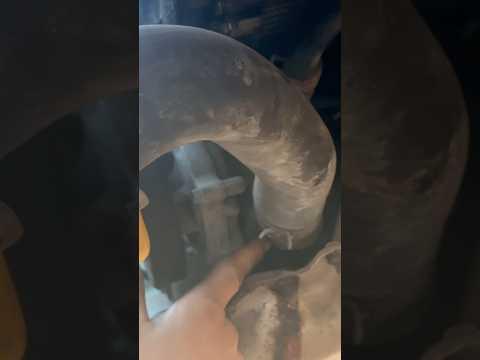

• Locate the lower radiator hose and follow it to where it connects to the engine (this is typically the thermostat housing area).
• Use hose clamp pliers to compress the spring clamp and slide it back on the hose.
• Twist the hose to break it loose, then pull it off. Use shop towels to catch remaining coolant.
• Twist first—don’t pry on plastic fittings.

Step 4: Remove the thermostat housing

• Use a 10mm socket, 3/8" drive ratchet, and 3" extension (3/8" drive) to remove the thermostat housing bolts.
• Carefully pull the housing off. Expect some coolant to spill; keep the drain pan underneath.
• Remove the thermostat and seal. Use a pick tool to lift the old seal if it sticks.

Step 5: Clean the sealing surfaces

• Wipe the engine-side and housing-side sealing surfaces with shop towels.
• Do not gouge the aluminum surface. If needed, use a plastic trim clip tool edge gently to lift stuck residue.

Step 6: Install the new thermostat and seal

• Install the new seal/O-ring onto the new thermostat (or into the housing, depending on design).
• Fit the thermostat in the same orientation as removed.
• Reinstall the housing and start the bolts by hand to avoid cross-threading.
• Tighten bolts evenly using a 10mm socket.
• Final tighten using a torque wrench (3/8" drive): Torque to 18 Nm (13 ft-lbs).

Step 7: Reinstall the lower radiator hose

• Push the hose fully onto the housing until it bottoms out.
• Use hose clamp pliers to move the clamp back into its original position.
• If the clamp is weak or deformed, replace it with the new lower radiator hose clamp.

Step 8: Refill coolant and bleed air

• Close the radiator drain (petcock) by hand (snug only).
• Install the spill-free coolant funnel kit (specialty) onto the radiator fill neck.
• Slowly pour in Subaru-compatible coolant (blue, premixed 50/50) until the funnel level stabilizes.
• Start the engine and set the cabin heat to HOT and fan to LOW.
• Let it idle. Watch for air bubbles in the funnel and keep the level up.
• When the radiator hose gets hot and you see a noticeable flow change, the thermostat has opened.
• Continue until bubbles stop and the heater blows consistently hot air.
• Shut the engine off, let it cool, then remove the funnel and install the radiator cap.

Step 9: Reinstall the splash shield

• Reinstall the splash shield using the 10mm socket and 3/8" drive ratchet.
• Reinstall clips using the plastic trim clip tool.
• Lower the vehicle safely using the floor jack.

---

✅ After Repair

• With the engine warm, inspect for leaks around the thermostat housing and lower radiator hose.
• After the first full cool-down, recheck the overflow reservoir and top off to the “FULL COLD” line if needed.
• Monitor the temperature gauge during your next few drives; it should warm up normally and stay steady.
• Dispose of old coolant properly (many parts stores accept used coolant).

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor)

DIY Cost: $40-$120 (parts only)

You Save: $210-$330 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
