🔧 HR-V - Thermostat Replacement

The thermostat controls coolant flow so your engine warms up correctly and doesn’t overheat. On your HR-V, it sits in the thermostat housing where the lower radiator hose meets the engine. You’ll drain some coolant, swap the thermostat and seal, then refill and bleed air out of the cooling system.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Never open the cooling system hot; let it cool completely.
• ⚠️ Coolant is toxic; keep away from kids and pets, and clean spills.
• ⚠️ Support the vehicle on jack stands if you raise it; never rely on a jack.
• ⚠️ Use only Honda/compatible premixed coolant; mixing types can cause corrosion.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Drain pan (at least 2-gallon)
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 3/8" drive ratchet
• 3/8" drive extension set
• 10mm socket
• 12mm socket
• Torque wrench (5–60 Nm range)
• Flathead screwdriver
• Hose clamp pliers
• Funnel
• Trim clip removal tool
• Shop towels

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Engine thermostat - Qty: 1
• Thermostat seal / O-ring - Qty: 1
• Honda Type 2 coolant (premixed 50/50) - Qty: 1-2 gallons

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Let the engine cool fully (upper radiator hose should feel cool).
• Set the cabin heat to HOT later during bleeding (this helps purge air).
• If you raise the front, lift with a floor jack and support with jack stands.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the lower engine cover (if equipped)

• Raise the front with a floor jack and place jack stands under the front support points.
• Use a trim clip removal tool and 10mm socket to remove the clips/bolts holding the under-cover.

Step 2: Drain coolant (partial drain)

• Place a drain pan (at least 2-gallon) under the radiator drain area.
• Slowly loosen the radiator cap (if present) to release any residual pressure.
• Open the radiator drain cock using a flathead screwdriver (some are hand-turn; use gentle force).
• Drain until the level is below the thermostat housing area, then close the drain cock snugly.
• Tip: Save clean coolant only if it’s fresh.

Step 3: Access the thermostat housing

• From the engine bay, locate the lower radiator hose and follow it to where it attaches to the engine (this is the thermostat housing area).
• If the air intake ducting blocks access, loosen the clamps with a flathead screwdriver and move the duct aside.
• A “hose clamp” is the metal band that squeezes the hose onto the fitting.

Step 4: Remove the lower radiator hose from the housing

• Use hose clamp pliers to squeeze the clamp and slide it back on the hose.
• Twist the hose gently to break it loose, then pull it off the housing.
• Expect some coolant spill; use shop towels and keep the drain pan positioned.

Step 5: Remove the thermostat housing and thermostat

• Remove the thermostat housing bolts using a 10mm socket with a 3/8" drive ratchet and extension as needed.
• Carefully separate the housing; don’t pry hard on aluminum surfaces.
• Remove the thermostat and the old seal/O-ring by hand.

Step 6: Install the new thermostat and seal

• Clean the mating surfaces using shop towels (no deep scraping).
• Install the new seal/O-ring on the new thermostat (or into the housing, depending on the design).

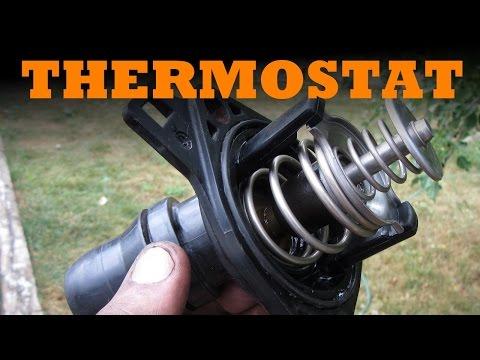

• Install the thermostat in the same orientation as removed (spring side goes toward the engine).

Step 7: Reinstall the thermostat housing

• Start the housing bolts by hand to avoid cross-threading.
• Tighten bolts evenly using a 10mm socket.
• Final tighten with a torque wrench (5–60 Nm range): Torque to 12 Nm (9 ft-lbs).

Step 8: Reconnect the lower radiator hose

• Push the hose fully onto the housing fitting.
• Use hose clamp pliers to move the clamp back to its original position.
• Double-check the clamp is centered over the nipple/bead on the fitting.

Step 9: Reinstall intake ducting and under-cover

• Reposition the intake duct and tighten clamps with a flathead screwdriver.
• Reinstall the under-cover using the 10mm socket and trim clip removal tool.

Step 10: Refill coolant and bleed air

• Place a funnel in the radiator fill neck (or coolant fill point) and add Honda Type 2 coolant (premixed 50/50) until full.
• Fill the overflow reservoir to the MAX line.
• Start the engine and set HVAC to HOT, fan on low.
• Let it idle and watch the temperature gauge; as the thermostat opens, the coolant level may drop—add coolant as needed.
• Once the radiator fan cycles on/off and you have steady cabin heat, shut the engine off and let it cool.
• Recheck radiator and reservoir level after cool-down; top off as needed.

---

✅ After Repair

• Check for leaks around the thermostat housing and lower hose connection while idling.
• Confirm the temperature gauge stays normal during a 10–15 minute test drive.
• After the next full cool-down, recheck the reservoir level and top off if needed.
• If you ever see overheating, shut down and recheck for trapped air or leaks.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor)

DIY Cost: $40-$120 (parts only)

You Save: $130-$410 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
