🔧 MX-5 Miata - Thermostat Replacement

The thermostat controls engine warm-up and operating temperature. If it’s stuck open you’ll get slow warm-up/poor heat, and if it’s stuck closed you can overheat. This job involves draining some coolant, swapping the thermostat and seal, then refilling and bleeding air from the cooling system.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Only work on a fully cool engine; hot coolant can cause severe burns.
• ⚠️ Support the car with jack stands on solid, level ground—never rely on a floor jack alone.
• ⚠️ Keep coolant off paint and away from pets; dispose of old coolant properly.
• ⚠️ Don’t open the coolant cap when hot; release pressure slowly when cool.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• Drain pan (at least 10-quart)
• Funnel
• Trim clip removal tool
• 10mm socket
• 12mm socket
• 1/4" ratchet
• 3/8" ratchet
• 3" extension
• Torque wrench (in-lb or low-range Nm)
• Hose clamp pliers
• Pick tool
• Shop rags

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Engine thermostat - Qty: 1
• Thermostat O-ring / seal - Qty: 1
• Mazda FL22 coolant (premixed) - Qty: 1-2 gallons

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Let the engine cool completely (ideally overnight).
• Set your HVAC to HOT later during bleeding so coolant can flow through the heater core (the small radiator that provides cabin heat).
• Place a large drain pan under the radiator area before opening anything.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise the front of the car safely

• Use a floor jack to lift the front at the approved front jacking point.
• Set the car down onto jack stands and confirm it’s stable before getting underneath.

Step 2: Remove the front under cover (undertray)

• Use a trim clip removal tool to pop out the plastic clips.
• Use a 10mm socket with a 1/4" ratchet to remove any 10mm bolts holding the under cover.
• Set clips/bolts aside in a small container. Mixing clips is a common mistake.

Step 3: Drain the coolant (partial drain)

• Place the drain pan under the radiator drain area.
• Slowly loosen the coolant reservoir cap by hand to relieve any remaining pressure (engine must be cool).
• Open the radiator drain cock if accessible, or loosen the lower radiator hose clamp (see next step) to drain into the pan.

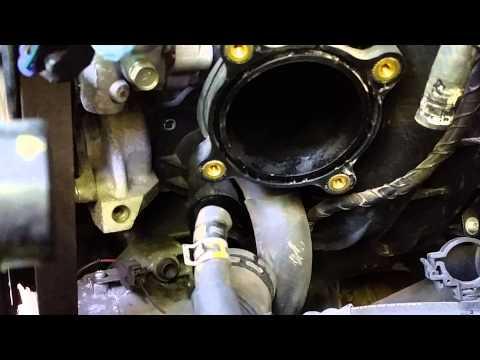

Step 4: Access the thermostat housing

• Locate the thermostat housing at the engine-side end of the lower radiator hose.
• Use hose clamp pliers to slide the spring clamp back on the hose.
• Twist the hose gently to break it free, then pull it off. Use a pick tool carefully if it’s stuck. Don’t gouge the plastic/metal neck.

Step 5: Remove the thermostat housing/cover

• Use a 10mm socket (and 3" extension if needed) to remove the thermostat housing bolts.
• Pull the housing/cover straight off and expect more coolant to drain—keep the drain pan underneath.

Step 6: Replace the thermostat and seal

• Remove the old thermostat and the old O-ring/seal by hand.
• Clean the mating surfaces with shop rags (no heavy scraping).
• Install the new thermostat in the same orientation as the old one.
• Install the new O-ring/seal, making sure it sits flat and is not pinched.

Step 7: Reinstall the housing and tighten correctly

• Reinstall the housing/cover and start bolts by hand to avoid cross-threading.
• Use a torque wrench to tighten the thermostat housing bolts evenly.
• Torque to 10 Nm (89 in-lbs)
• Reconnect the lower radiator hose and reposition the clamp using hose clamp pliers.

Step 8: Refill coolant

• Use a funnel to fill the coolant reservoir with Mazda FL22 coolant (premixed) up to the FULL line.
• Reinstall the reservoir cap snugly by hand.

Step 9: Bleed air from the cooling system

• Start the engine and let it idle.
• Set HVAC to HOT and fan to medium.
• Watch for the temperature gauge to rise normally; as it warms, carefully check for leaks at the thermostat housing and hose connection.
• After the radiator fan cycles on and off at least once, shut the engine off and let it cool fully.
• Once cool, recheck the reservoir level and top off with Mazda FL22 coolant (premixed) if needed.

Step 10: Reinstall the under cover and lower the car

• Reinstall the undertray using the 10mm socket and the original clips with the trim clip removal tool.
• Raise slightly with the floor jack, remove the jack stands, then lower the car.

---

✅ After Repair

• Check for leaks after the first drive (look under the front and around the hose connection).
• Confirm cabin heat works and the temperature gauge stays normal.
• Recheck coolant level the next morning when fully cold and top off to the FULL line if needed.

---

💰 DIY vs Shop Cost

Shop Cost: $300-$550 (parts + labor)

DIY Cost: $60-$140 (parts only)

You Save: $240-$410 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
