🔧 Tacoma - Thermostat Replacement

Your Tacoma’s thermostat controls coolant flow to keep engine temperature stable. If it sticks open you may get slow warm-up/poor heat; if it sticks closed you can overheat. This job involves draining coolant, replacing the thermostat and seal, then refilling and bleeding air from the cooling system.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Never open the radiator cap on a hot engine; hot coolant can spray and burn you.
• ⚠️ Support the truck safely if you raise it; never rely on a jack alone.
• ⚠️ Coolant is toxic to people and pets; catch it all and dispose properly.
• ⚠️ Keep hands/tools clear of the fan and belts while the engine is running.
• 🔋 Battery disconnect is not required, but keep tools away from the alternator power terminal.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 3/8" drive ratchet
• 3" extension (3/8" drive)

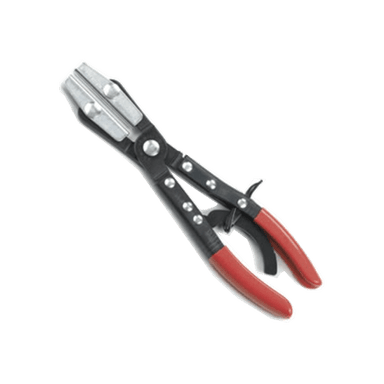

• Hose clamp pliers
• Pick tool
• Drain pan (at least 3-gallon)
• Spill-free funnel kit (specialty)
• Torque wrench (inch-pound or low-range Nm)
• Shop towels
• Nitrile gloves
• Safety glasses
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Engine thermostat - Qty: 1
• Thermostat seal / O-ring - Qty: 1
• Toyota Super Long Life Coolant (pink, premixed 50/50) - Qty: 3 gallons

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Let the engine cool fully (ideally overnight).
• If you raise the front end for access, use a floor jack and support with jack stands at the frame points.
• Set the cabin HVAC to heat later during bleeding: Temperature to HOT (you’ll do this before running the engine).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Relieve pressure and set up to drain coolant

• Put on safety glasses and nitrile gloves.
• Remove the radiator cap only when cold (turn slowly to the first stop, then remove).
• Place a drain pan under the radiator drain (lower corner of radiator).

Step 2: Drain the coolant

• Open the radiator drain cock and let coolant drain into the drain pan.
• Tip: Save coolant only if it’s clean/new.
• Close the drain cock once flow slows to a drip.

Step 3: Remove the air intake ducting for access

• Loosen the intake tube clamps using a 10mm socket and ratchet.
• Disconnect any small hoses/clips as needed (use a pick tool gently if a hose is stuck).
• Lift the intake duct out of the way.

Step 4: Remove the lower radiator hose from the thermostat housing

• Position the drain pan under the thermostat housing area (more coolant will spill).
• Use hose clamp pliers to compress the spring clamp and slide it back on the hose.
• Twist the hose to break it free, then pull it off the housing (use a pick tool carefully if it’s stuck).

Step 5: Remove the thermostat housing

• Remove the thermostat housing bolts using a 10mm socket, ratchet, and 3" extension.
• Pull the housing straight off. Expect coolant to spill—keep the drain pan underneath.

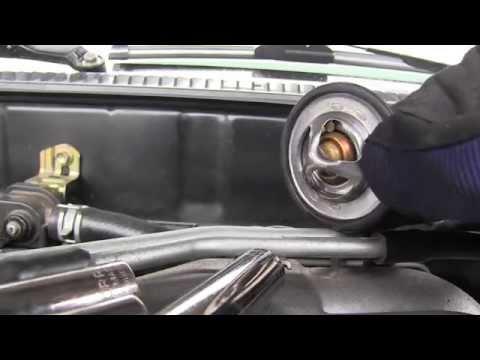

Step 6: Replace the thermostat and seal

• Remove the old thermostat and old seal/O-ring.
• Clean the mating surfaces with shop towels (no gouging/scratching).
• Install the new thermostat with the jiggle valve/bleed pin positioned at the top (12 o’clock).
• Install the new seal/O-ring in the correct groove (make sure it is not twisted).

Step 7: Reinstall the thermostat housing and hose

• Reinstall the thermostat housing and start bolts by hand to avoid cross-threading.
• Tighten the housing bolts using a torque wrench: Torque to 10 Nm (89 in-lbs).
• Reinstall the lower radiator hose and reposition the spring clamp using hose clamp pliers.

Step 8: Reinstall the air intake ducting

• Reinstall the intake duct and any hoses/clips you removed.
• Tighten intake clamps using a 10mm socket and ratchet.

Step 9: Refill and bleed the cooling system

• Install the spill-free funnel kit onto the radiator fill neck.
• Fill with Toyota Super Long Life Coolant (pink, premixed) until the funnel level stays steady.
• Set HVAC to heat: Temperature HOT, fan on low.
• Start the engine and let it idle. Watch the coolant level in the funnel and add as needed.
• As the engine warms up, squeeze the upper radiator hose a few times (with nitrile gloves) to help push air out.
• When you see fewer bubbles and the heater blows hot, let it idle a few more minutes.
• Shut the engine off, let it cool, then remove the funnel and install the radiator cap.
• Fill the overflow reservoir to the “FULL” line.

---

✅ After Repair

• Start the engine and check carefully for leaks around the thermostat housing and lower hose.
• Test drive while watching the temp gauge; it should reach normal and stay steady.
• After the engine fully cools, recheck the radiator level and overflow bottle and top off if needed.
• Recheck for drips the next morning (cold engine).

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor)

DIY Cost: $45-$120 (parts only)

You Save: $130-$405 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
