🔧 Focus - Thermostat Replacement

Your Focus’s thermostat controls coolant flow to keep engine temperature stable. If it’s stuck closed you can overheat; if it’s stuck open the engine may run cold and the heater may be weak. This job involves draining some coolant, swapping the thermostat/housing, then refilling and bleeding air out.

Difficulty Level: Intermediate | Estimated Time: 1.5-3 hours

Assumption: 2.0L uses a thermostat housed in a bolt-on outlet/housing.

---

⚠️ Safety & Precautions

• ⚠️ Never open the coolant reservoir cap on a hot engine; let it cool fully first.
• ⚠️ Support the car with jack stands if you lift it; never rely on a jack alone.
• ⚠️ Coolant is toxic; keep it away from kids/pets and clean spills immediately.
• ⚠️ Dispose of old coolant properly; do not pour it on the ground.
• ⚠️ If you disconnect any electrical connectors near the housing, keep the key off.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Drain pan (at least 2-gallon)
• Funnel
• 3/8" drive ratchet
• 3/8" drive extension set
• 8mm socket
• 10mm socket
• 13mm socket
• Torque wrench (5–30 Nm range)
• Hose clamp pliers
• Trim clip removal tool
• Flathead screwdriver
• Pliers
• Plastic razor scraper
• Shop towels

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Thermostat (with seal/gasket) - Qty: 1
• Thermostat housing/outlet (if thermostat is integrated) - Qty: 1
• Coolant (Motorcraft Orange or correct equivalent, prediluted 50/50) - Qty: 1-2 gallons
• Hose clamps (replacement, if originals are weak) - Qty: 2

---

📋 Before You Begin

• 🅿️ Park on level ground, set the parking brake, and chock the rear wheels.
• 🧊 Let the engine cool completely (upper radiator hose should feel cool).
• 📦 Lay out parts and tools; keep coolant off painted surfaces.
• 🔌 Optional: Disconnect the negative battery cable using a 10mm socket if you’ll be moving wiring connectors around (this prevents accidental shorts).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Relieve cooling system pressure (cold engine only)

• Slowly loosen the coolant reservoir cap by hand to release any leftover pressure, then remove it.
• If you hear strong hissing, tighten it back up and wait longer for the engine to cool.

Step 2: Lift the front safely (if needed for access)

• Use a floor jack to lift the front pinch weld/jacking point.
• Place jack stands under solid support points and gently lower the car onto them.
• Place wheel chocks behind the rear wheels.

Step 3: Drain enough coolant

• Place a drain pan (at least 2-gallon) under the radiator area.
• If equipped with a drain valve, open it using a flathead screwdriver and drain until the level is below the thermostat housing.
• If there’s no easy drain access, use pliers or hose clamp pliers to release the lower radiator hose clamp and carefully crack the hose loose to drain.
• Tip: Keep rags ready; coolant will splash.

Step 4: Remove the air intake pieces for access

• Loosen the intake tube clamp(s) using an 8mm socket or flathead screwdriver.
• Unclip/remove the air duct/airbox as needed using a trim clip removal tool and 10mm socket.
• Set parts aside so you can clearly see the thermostat housing area and hoses.

Step 5: Disconnect hoses/electrical connector at the thermostat housing

• Identify the thermostat housing/outlet (a plastic or aluminum housing where a radiator hose meets the engine).
• Use hose clamp pliers to squeeze spring clamps and slide them back on the hose.
• Twist the hose gently to break it free, then pull it off (don’t pry hard on plastic nipples).
• If an electrical connector is present (some housings include a sensor), press the lock tab and unplug it by hand.
• Hose clamp pliers squeeze clamps evenly and safely.

Step 6: Remove the thermostat housing

• Use a 10mm socket with a 3/8" drive ratchet and extensions to remove the housing bolts.
• Keep bolts organized so they go back in the same locations.
• Pull the housing straight off; expect a little coolant to spill into the drain pan.

Step 7: Clean the sealing surface

• Use a plastic razor scraper and shop towels to clean old gasket material or crust from the engine mating surface.
• Do not gouge the aluminum surface; it must be smooth and clean for a good seal.

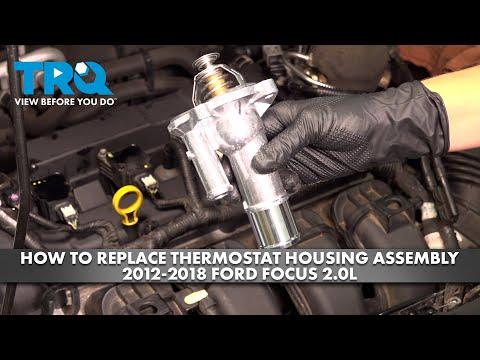

Step 8: Install the new thermostat/housing

• Install the new thermostat/housing with the new seal/gasket (do not reuse the old seal).
• Start all bolts by hand first to avoid cross-threading.
• Tighten bolts evenly using a 10mm socket.
• Torque to 10 Nm (89 in-lbs) using a torque wrench (5–30 Nm range).

Step 9: Reconnect hoses and any connector

• Push hoses fully onto the fittings, then reposition clamps using hose clamp pliers.
• Reconnect any unplugged electrical connector until it clicks.
• Wipe everything dry with shop towels so you can spot leaks later.

Step 10: Reinstall the intake parts

• Reinstall the airbox/ducting and tighten clamps using an 8mm socket or flathead screwdriver.
• Reinstall any bolts/clips removed using a 10mm socket and trim clip removal tool.

Step 11: Refill and bleed air from the cooling system

• Close the radiator drain (if opened) using a flathead screwdriver.
• Using a funnel, fill the coolant reservoir with Motorcraft Orange or correct equivalent, prediluted 50/50 to the MAX line.
• Start the engine and let it idle with the reservoir cap off.
• Turn the cabin heat to HOT and fan to LOW (this helps purge air).
• As the engine warms up, add coolant as the level drops.
• Once the radiator fan cycles and you get steady heat from the vents, install the reservoir cap.
• Tip: Don’t rev; let it warm up slowly.

Step 12: Lower the car (if lifted)

• Lift slightly with the floor jack, remove jack stands, then lower the car safely.

---

✅ After Repair

• 🧪 With the engine running, check around the thermostat housing and hose connections for leaks.
• 🌡️ Watch the temperature gauge on a short test drive; it should warm up normally and stay steady.
• 🧊 After the engine cools completely, recheck the coolant level and top off to the MAX line if needed.
• 🧼 Recheck for dried coolant trails the next day; they can point to a slow seep.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$700 (parts + labor)

DIY Cost: $60-$200 (parts only)

You Save: $290-$500 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3 hours.

---
