🔧 Yukon - Thermostat Replacement

The thermostat controls coolant flow to help your A/C-heater and engine temperature stay stable. If it sticks open you may run cool and set a check-engine light; if it sticks closed you can overheat. You’ll remove the thermostat housing at the front of the engine, swap the thermostat and seal, then refill/bleed the cooling system.

Difficulty Level: Intermediate | Estimated Time: 1.5-3 hours

Assumption: Stock 6.2L cooling layout with thermostat in the water pump inlet housing.

---

⚠️ Safety & Precautions

• ⚠️ Never open the coolant cap on a hot engine; let it cool fully first.
• ⚠️ Coolant is toxic; use a drain pan and keep it away from pets/kids.
• ⚠️ Support the truck with jack stands if you lift it; never rely on a jack.
• ⚠️ Keep hands/tools clear of the cooling fan and belt drive.
• ⚠️ Battery disconnect is not required, but avoid shorting tools on the alternator.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Drain pan (at least 3-gallon)
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 3/8" drive ratchet
• 3/8" drive extension set
• 10mm socket
• 8mm socket
• Flat-blade screwdriver
• Hose clamp pliers
• Plastic trim tool
• Torque wrench (3/8" drive, inch-lb/ft-lb)
• Funnel with spill-free coolant fill adapter (specialty)
• Shop rags

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Engine thermostat (with seal/O-ring) - Qty: 1
• Dex-Cool coolant (premixed 50/50) - Qty: 2-3 gallons
• Lower radiator hose clamp - Qty: 1
• Shop towels/absorbent pads - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Let the engine cool completely (upper hose should feel cool).
• Slowly loosen the coolant surge tank cap to relieve any leftover pressure.
• If you lift the front for access, use a floor jack and support with jack stands under the frame.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the engine cover and intake duct (for access)

• Pull up to remove the engine cover by hand (it’s held by rubber grommets).
• Use an 8mm socket or flat-blade screwdriver to loosen the air intake clamps.
• Use a plastic trim tool to help pop any intake resonator clips loose without breaking them.

Step 2: Drain enough coolant to get below the thermostat level

• Place a drain pan under the radiator area.
• If equipped with a drain valve (petcock), open it carefully; otherwise you’ll drain by loosening the lower hose at the thermostat housing.
• Use hose clamp pliers to slide the clamp back on the lower radiator hose.
• Twist and pull the hose off slowly and let coolant drain into the pan.
• Tip: Twist the hose to break the seal.

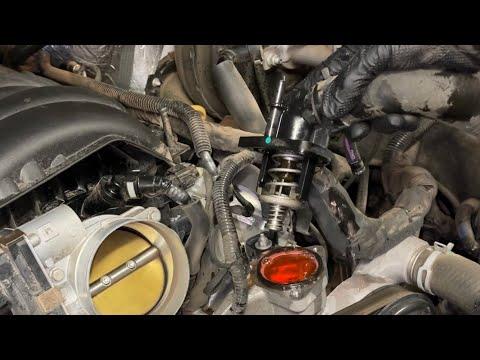

Step 3: Locate the thermostat housing

• The thermostat sits in the front water pump inlet where the lower radiator hose connects.
• Wipe the area with shop rags so dirt doesn’t fall inside when opened.

Step 4: Remove the thermostat housing bolts

• Use a 10mm socket with a 3/8" drive ratchet and extensions to remove the thermostat housing bolts.
• Hold the housing as the last bolt comes out so it doesn’t spill coolant everywhere.

Step 5: Remove the old thermostat and seal

• Pull the thermostat out of the housing/water pump opening by hand.
• Remove the old seal/O-ring completely.
• Clean the mating surfaces with shop rags (no gouging or sanding).
• Tip: Any old seal left behind can cause leaks.

Step 6: Install the new thermostat and seal

• Install the new seal/O-ring onto the new thermostat (or into the housing, depending on design).
• Set the new thermostat into place the same way the old one came out.
• Reinstall the thermostat housing.
• Start all bolts by hand to avoid cross-threading.
• Use a torque wrench to tighten the housing bolts evenly: Torque to 10 Nm (89 in-lbs).

Step 7: Reinstall the lower radiator hose and intake duct

• Push the hose fully onto the thermostat neck.
• Use hose clamp pliers to position the clamp back in its original spot.
• Reinstall the intake duct and tighten clamps with an 8mm socket: snug, not stripped.
• Press the engine cover back onto its grommets by hand.

Step 8: Refill coolant and bleed out air

• Close the radiator drain (if you opened it).
• Fill the surge tank using a funnel with spill-free coolant fill adapter (specialty) with Dex-Cool coolant (premixed 50/50).
• Start the engine and set the HVAC to HOT with the fan on medium.
• Let it idle until it reaches operating temperature and the heater blows hot air.
• Shut the engine off, let it cool, then recheck and top off to the “COLD” line.
• Tip: Air pockets can cause temp swings.

---

✅ After Repair

• Check for leaks around the thermostat housing and lower hose while idling.
• Verify the temperature gauge warms up normally and stays steady on a short test drive.
• After the engine cools again, recheck the coolant level and top off if needed.
• If a check-engine light was on for coolant temperature, clear it with a scan tool (if available) and confirm it doesn’t return.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$700 (parts + labor)

DIY Cost: $60-$180 (parts only)

You Save: $170-$640 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3 hours.

---
