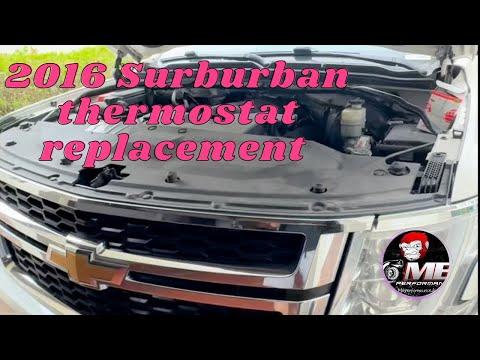

🔧 Suburban - Thermostat Replacement

The thermostat controls coolant flow to help your engine warm up quickly and then stay at the correct operating temperature. Replacing it on your Suburban involves draining some coolant, removing the thermostat housing at the front of the engine, installing the new thermostat and seal, then refilling and bleeding the cooling system.

Difficulty Level: Intermediate | Estimated Time: 1-2 hours

Assumption: Stock 5.3L cooling system with surge tank.

---

⚠️ Safety & Precautions

• ⚠️ Never open the surge tank cap on a hot engine; hot coolant can spray and burn you.
• ⚠️ Support the truck with jack stands if you raise it; never rely on a jack.
• ⚠️ Keep coolant away from kids/pets; it’s poisonous and has a sweet smell.
• ⚠️ Wear safety glasses and gloves; coolant can irritate eyes/skin.
• Battery disconnect is not required for this repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Drain pan (at least 3-gallon)
• Funnel
• 10mm socket
• 3/8" drive ratchet
• 3" extension
• Torque wrench (in-lb)
• Hose clamp pliers
• Flathead screwdriver
• Pick tool
• Shop towels

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Engine thermostat - Qty: 1
• Thermostat seal / O-ring - Qty: 1
• DEX-COOL coolant (orange) concentrate - Qty: 1-2 gallons
• Distilled water - Qty: 1-2 gallons
• Lower radiator hose clamp - Qty: 1 (optional, if original is weak)

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Let the engine cool completely (best is sitting overnight).
• Place wheel chocks behind the rear wheels.
• If you need more room, raise the front with a floor jack and support with jack stands.
• Set the HVAC to Heat when you do the final warm-up; this helps move coolant through the heater core.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Relieve any leftover pressure (engine COLD)

• Slowly loosen the surge tank cap by hand to make sure there is no pressure, then remove it.
• If it hisses, stop and let it cool more.

Step 2: Drain enough coolant to get below the thermostat level

• Position a drain pan (at least 3-gallon) under the radiator.
• Use a flathead screwdriver to open the radiator drain petcock (if equipped), and drain 1-2 gallons.
• If you can’t access a drain, use hose clamp pliers to loosen the lower radiator hose clamp and carefully crack the hose loose to drain into the pan.

Step 3: Remove the intake duct (for access)

• Use a flathead screwdriver to loosen the hose clamps on the air intake duct.
• Lift the duct out of the way so you can clearly see the front of the engine and radiator hoses.

Step 4: Locate the thermostat housing

• Follow the lower radiator hose to the front of the engine—where it connects is the thermostat housing/water pump inlet.
• Use shop towels under the area to catch spills.

Step 5: Remove the lower radiator hose from the thermostat housing

• Use hose clamp pliers to compress the clamp and slide it back on the hose.
• Twist the hose to break it free, then pull it off the housing.
• If it’s stuck, use a pick tool gently around the edge to free it (don’t gouge the plastic/aluminum neck).

Step 6: Remove the thermostat housing bolts

• Use a 10mm socket, 3/8" drive ratchet, and 3" extension to remove the thermostat housing bolts.
• Pull the housing straight off and set it aside.
• Note the thermostat orientation as you remove it.

Step 7: Replace the thermostat and seal

• Remove the old thermostat and old seal / O-ring.
• Clean the mating surfaces with shop towels (no heavy scraping).
• Install the new seal on the new thermostat, then place the thermostat in the same orientation as the old one.
• A light film of coolant helps the O-ring seat.

Step 8: Reinstall the housing and torque the bolts

• Position the housing and start the bolts by hand to avoid cross-threading.
• Use a 10mm socket to snug the bolts evenly.
• Use a torque wrench (in-lb) to finish tightening: Torque to 89 in-lb (10 Nm).

Step 9: Reinstall the lower radiator hose

• Push the hose fully onto the thermostat housing neck.
• Use hose clamp pliers to move the clamp back into its original position.

Step 10: Refill coolant (DEX-COOL)

• Use a funnel to refill the surge tank.
• Use a 50/50 mix of DEX-COOL concentrate and distilled water (or pre-mixed coolant if that’s what you bought).
• Fill to the surge tank’s COLD line.

Step 11: Bleed air and verify operation

• Start the engine and let it idle with the surge tank cap off.
• Set HVAC to Heat and fan on medium.
• Watch the coolant level; add as needed using the funnel.
• When the engine warms up, the upper radiator hose should get hot as the thermostat opens.
• Install the surge tank cap once the level stabilizes and no more bubbles appear.

Step 12: Reinstall the intake duct and clean up

• Reinstall the intake duct and tighten clamps with a flathead screwdriver.
• Wipe any spilled coolant with shop towels and properly dispose of old coolant.

---

✅ After Repair

• Test drive 10-15 minutes, then park and let it cool.
• Recheck coolant level at the surge tank and top off to the COLD line if needed.
• Inspect for leaks around the thermostat housing and lower radiator hose connection.
• If you had a check engine light for coolant temperature, it may clear after a few drive cycles; otherwise it can be cleared with a scan tool.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor)

DIY Cost: $40-$120 (parts only)

You Save: $130-$410 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
