🔧 Legacy - Thermostat Replacement

The thermostat controls engine temperature by opening to let coolant flow through the radiator. If it’s stuck closed, your Legacy can overheat; if it’s stuck open, it may run too cool and set a check engine light.

Difficulty Level: Intermediate | Estimated Time: 2-3 hours

Assumption: Stock FB25 engine layout; thermostat at lower hose inlet.

---

⚠️ Safety & Precautions

• ⚠️ Never open the radiator cap on a hot engine; hot coolant can spray and burn you.
• ⚠️ Support the car with jack stands; never rely on a floor jack alone.
• ⚠️ Coolant is toxic to people and pets; catch all spills and dispose properly.
• ⚠️ Keep hands clear of fans; they can turn on automatically.
• Battery disconnect is not required for this job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• Drain pan (at least 10-liter)
• 10mm socket
• 12mm socket
• 3/8" ratchet
• 3/8" torque wrench (5-60 Nm range)
• Extension set (3" and 6")
• Flathead screwdriver
• Hose clamp pliers
• Trim clip removal tool
• Funnel
• Spill-free coolant funnel kit (specialty)
• Shop towels

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Engine thermostat - Qty: 1
• Thermostat gasket / O-ring seal - Qty: 1
• Subaru-compatible coolant (pre-mix) - Qty: 2 gallons
• Lower radiator hose clamp - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Let the engine cool fully (at least 2-3 hours).
• Set the heater to full HOT before bleeding later (this opens the heater circuit).
• Have a clean drain pan ready; you may be able to reuse coolant only if it’s fresh and perfectly clean, but safest is replacing with new coolant.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise and support the front of the car

• Use a floor jack to lift the front jack point.
• Place jack stands under the proper front support points and lower the car onto them.
• Use wheel chocks at the rear wheels.

Step 2: Remove the lower engine cover (undertray)

• Use a trim clip removal tool to pop out plastic clips.
• Use a 10mm socket and 3/8" ratchet to remove any bolts.
• Set the cover and fasteners aside.

Step 3: Drain the coolant

• Place a drain pan under the radiator drain area.
• Slowly remove the radiator cap on the radiator using your hand with a shop towel (only when fully cool).
• Open the radiator drain cock using a flathead screwdriver if needed (turn gently; plastic can break).
• Let coolant drain until the flow slows to a drip.

Step 4: Access the thermostat area (lower radiator hose connection)

• Locate the lower radiator hose (the larger hose at the bottom of the radiator running to the engine).
• Move the spring clamp back using hose clamp pliers (these pliers squeeze the clamp so you can slide it).
• Twist the hose gently by hand to break it free, then pull it off. Keep the drain pan positioned—more coolant will spill.

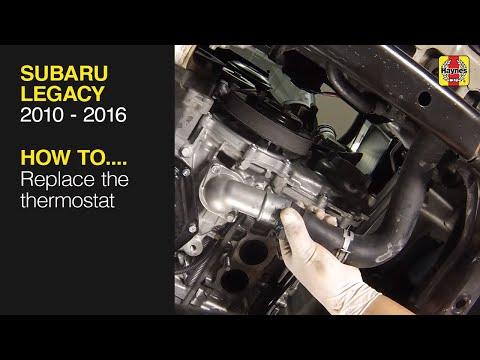

Step 5: Remove the thermostat housing / inlet

• Clean around the housing with shop towels so dirt doesn’t fall inside.
• Remove the housing bolts using a 10mm socket (some cars may use 12mm socket).
• Use an extension set if access is tight.
• Carefully pull the housing off; note how the thermostat sits before removing it.

Step 6: Replace the thermostat and seal

• Remove the old thermostat by hand and remove the old gasket / O-ring.
• Wipe the mating surfaces clean with shop towels. Do not gouge the aluminum.
• Install the new thermostat in the same orientation as the old one.
• If the thermostat has a small “jiggle valve”/air pin, position it at the top. Helps air escape while filling.
• Install the new gasket / O-ring seal (do not reuse the old seal).

Step 7: Reinstall the housing and hose

• Reinstall the housing and start bolts by hand to avoid cross-threading.
• Tighten housing bolts evenly using a 10mm socket and 3/8" torque wrench: Torque to 10 Nm (7 ft-lbs).
• Reinstall the lower radiator hose fully, then reinstall the clamp using hose clamp pliers.

Step 8: Close the drain and refill coolant

• Close the radiator drain cock by hand, then snug gently using a flathead screwdriver if needed (do not overtighten).
• Fill the radiator using a funnel with Subaru-compatible coolant (pre-mix) until full.
• Fill the overflow reservoir to the “FULL” line.

Step 9: Bleed air from the cooling system

• Install a spill-free coolant funnel kit (specialty) on the radiator fill neck.
• Start the engine and let it idle. Keep the heater set to HOT.
• As the engine warms up, watch for air bubbles in the funnel and keep coolant level above the funnel’s lower opening.
• Lightly rev to ~2,000 rpm for 10 seconds a few times to help purge air.
• When the upper radiator hose becomes hot and you see steady flow, the thermostat has opened.
• Wait until the radiator fans cycle on and off once, then shut the engine off.
• Let it cool 20-30 minutes, then remove the funnel and install the radiator cap.

Step 10: Reinstall undertray and lower the car

• Reinstall the undertray using the 10mm socket and trim clip removal tool.
• Raise slightly with the floor jack, remove jack stands, and lower the car.

---

✅ After Repair

• With the engine fully warmed up, check for leaks around the thermostat housing and lower hose connection.
• After the car cools completely, recheck the overflow reservoir and top off to the “FULL” line if needed.
• Monitor the temperature gauge for the next few drives; it should stay steady at normal.
• If you hear sloshing behind the dash or get intermittent heat, there’s still air—repeat the bleeding process.

---

💰 DIY vs Shop Cost

Shop Cost: ₹6,000-₹12,000 (parts + labor)

DIY Cost: ₹2,500-₹6,000 (parts only)

You Save: ₹3,500-₹6,000 by doing it yourself!

Shop labor rates vary but typically run ₹800-₹2,000/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
