🔧 Sonata - Thermostat Replacement

The thermostat controls engine temperature by opening and closing coolant flow. If it sticks closed, your A4—(correction) your Sonata—can overheat; if it sticks open, it may run cold and set a check-engine light.

Assumption: 2.4L thermostat is in the water inlet/outlet housing where the lower radiator hose connects; exact bolt count/torque can vary slightly by housing.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Never open the coolant cap on a hot engine; scalding risk.
• ⚠️ Support the car with jack stands before working underneath.
• ⚠️ Coolant is toxic; keep away from kids/pets and clean spills.
• ⚠️ Keep hands/clothes away from the radiator fan; it can turn on unexpectedly.
• 🔋 Battery disconnect is not usually required, but disconnecting the negative terminal is safer if you’ll be working near the radiator fan wiring.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• Drain pan (at least 2-gallon)
• Funnel
• Spill-free funnel kit (specialty)
• Trim clip remover
• Flathead screwdriver
• 8mm socket
• 10mm socket
• 12mm socket
• 1/4" ratchet
• 3/8" ratchet
• 3" extension
• 6" extension
• Torque wrench (inch-pound or small Nm)
• Hose clamp pliers
• Plastic scraper
• Shop towels

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Engine thermostat - Qty: 1
• Thermostat gasket / O-ring - Qty: 1
• Hyundai-compatible long-life coolant (50/50 premix) - Qty: 2-3 gallons
• Coolant-safe distilled water - Qty: 1 gallon
• Lower radiator hose clamp - Qty: 1 (replace if weak/rusted)

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Let the engine cool fully (ideally 2+ hours).
• Set the HVAC to full heat later during bleeding (this helps move coolant through the heater core).
• If disconnecting the battery: use a 10mm socket to remove the negative cable and isolate it.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise the front and remove the lower splash shield

• Use a floor jack to lift the front center jacking point, then support with jack stands.
• Use a trim clip remover and 10mm socket to remove the lower engine splash shield fasteners.

Step 2: Drain the coolant

• Place a drain pan (at least 2-gallon) under the radiator drain (petcock) area.
• Slowly loosen the radiator cap to relieve any leftover pressure.
• Open the radiator drain using a flathead screwdriver (if slotted) and let coolant drain.
• If your drain is not accessible or drains too slowly, you can drain by removing the lower radiator hose in Step 4 (expect a fast gush).

Step 3: Make room at the front of the engine

• From above, remove the engine cover (pull upward by hand if equipped).
• Loosen the air duct clamps with an 8mm socket or flathead screwdriver, then move the duct out of the way if it blocks access.
• Tip: Take a quick photo before removing hoses.

Step 4: Remove the lower radiator hose from the thermostat housing

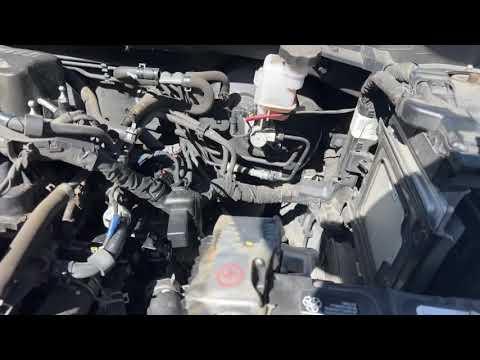

• Locate the lower radiator hose where it connects to the engine-side coolant housing.
• Use hose clamp pliers to compress the clamp and slide it back on the hose.
• Twist the hose gently by hand to break it loose, then pull it off.
• Have the drain pan positioned—more coolant will drain out.

Step 5: Remove the thermostat housing

• Clean around the housing with shop towels so dirt doesn’t fall inside.
• Remove the housing bolts using a 10mm socket (some variants may use 12mm socket).
• Carefully separate the housing. If it’s stuck, tap lightly with your hand—do not pry hard on aluminum.

Step 6: Replace the thermostat and seal

• Remove the old thermostat and note its orientation (spring side typically faces the engine).
• Remove the old gasket/O-ring.
• Clean the mating surfaces using a plastic scraper and shop towels. Don’t gouge the aluminum.
• Install the new thermostat in the same orientation.
• Install the new gasket/O-ring (lightly wet it with fresh coolant so it doesn’t pinch).

Step 7: Reinstall the thermostat housing

• Reinstall the housing and start the bolts by hand to avoid cross-threading.
• Tighten bolts evenly using a 10mm socket.
• Final tighten with a torque wrench: Torque to 10–12 Nm (7–9 ft-lbs).

Step 8: Reconnect the lower radiator hose

• Push the hose fully onto the housing.
• Use hose clamp pliers to position the clamp in the original spot.
• Wipe everything dry with shop towels so leaks are easy to spot later.

Step 9: Reinstall splash shield and lower the car

• Reinstall the splash shield fasteners using a trim clip remover and 10mm socket.
• Lift slightly with the floor jack, remove jack stands, then lower the vehicle.

Step 10: Refill and bleed air from the cooling system

• Install a spill-free funnel kit (specialty) at the radiator fill neck or coolant reservoir fill point (whichever your Sonata uses for filling).
• Slowly add Hyundai-compatible long-life coolant (50/50 premix) until full.
• Start the engine and set HVAC to max heat; let it idle.
• Watch for air bubbles in the funnel and keep the level topped up.
• When the engine reaches operating temp and you feel hot air from vents, the thermostat has opened.
• Shut the engine off, let it cool, then set the final coolant level and install the cap.

---

✅ After Repair

• With the engine running, check for leaks at the thermostat housing and lower hose connection using a bright light.
• Test drive 10–15 minutes and watch the temperature gauge for normal operation.
• After the engine cools completely, recheck coolant level and top off if needed.
• If a check-engine light appears, scan it; a thermostat code can set if air remains trapped.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$650 (parts + labor)

DIY Cost: $40-$140 (parts only)

You Save: $210-$610 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
