🔧 Forester - Thermostat Replacement

Your A/C and heater both rely on the engine holding the correct coolant temperature. A stuck thermostat can cause overheating, weak heat, or slow warm-up. On your Forester, the thermostat sits in the coolant inlet/outlet housing at the front/lower area of the engine and is serviced by draining some coolant and swapping the thermostat + seal.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Never open the coolant cap on a hot engine; wait until fully cool.
• ⚠️ Support the vehicle with jack stands; never rely on a floor jack alone.
• ⚠️ Coolant is toxic and slippery—clean spills immediately and keep away from pets.
• ⚠️ Keep fingers/tools clear of radiator fans; they can turn on unexpectedly.
• 🔋 Battery disconnect is not required, but keep the key away from the vehicle while working near fans.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• Drain pan (at least 10 liters)
• Funnel
• Spill-free funnel kit (specialty)
• Trim clip remover tool
• Flathead screwdriver
• Phillips screwdriver
• 10mm socket
• 12mm socket
• 3/8" ratchet
• 3" extension
• Torque wrench (5–60 Nm range)
• Hose clamp pliers
• Pliers
• Plastic scraper
• Shop towels

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Engine thermostat - Qty: 1
• Thermostat seal / gasket (O-ring) - Qty: 1
• Engine coolant (Subaru Super Coolant equivalent, premixed) - Qty: 2-3 gallons (8-12 liters)
• Lower radiator hose clamp - Qty: 1 (only if yours is weak/damaged)

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Let the engine cool completely (radiator hoses should feel cool).
• Set your HVAC to full hot later during bleeding (this helps coolant flow through the heater core).
• Place a drain pan under the front of the engine area before loosening any hose.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise the front safely

• Use a floor jack (rated 2-ton minimum) to lift the front at the proper jacking point.
• Place the vehicle onto jack stands (rated 2-ton minimum) and add wheel chocks at the rear.

Step 2: Remove the lower engine cover (undertray)

• Use a trim clip remover tool and 10mm socket with a 3/8" ratchet to remove the clips/bolts.
• Set the cover and hardware aside in a small pile so nothing gets lost.

Step 3: Drain coolant (partial drain is usually enough)

• Place a drain pan (at least 10 liters) under the radiator drain area.
• Slowly loosen the radiator cap to the first stop to release any leftover pressure, then remove it fully once safe.
• Open the radiator drain and let coolant drain into the pan. Use a flathead screwdriver only if your drain style requires it; many are hand-turn.
• Tip: Draining 5–7 liters is often enough.

Step 4: Access the thermostat housing

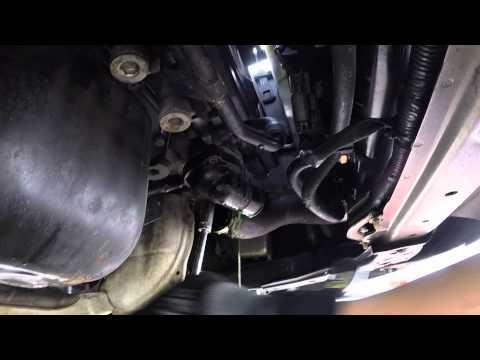

• Find the lower radiator hose (large hose) and follow it to where it meets the engine at the thermostat housing.
• Use hose clamp pliers to slide the clamp back, then twist and pull the hose off carefully.
• Keep the drain pan directly underneath—more coolant will spill here.
• Tip: Twist the hose first to break the seal.

Step 5: Remove the thermostat housing/cover

• Use a 10mm socket (or 12mm socket if equipped) with a 3/8" ratchet and 3" extension to remove the housing bolts.
• Carefully separate the housing—don’t pry hard on aluminum surfaces.
• Remove the thermostat and the old seal/gasket.

Step 6: Clean the sealing surfaces

• Use a plastic scraper and shop towels to clean the mating surfaces.
• Do not gouge the aluminum. The goal is clean and smooth.

Step 7: Install the new thermostat and seal

• Install the new thermostat seal / gasket (O-ring) onto the thermostat or into the housing groove (whichever matches your part design).
• Install the thermostat in the correct orientation (it must seat fully and evenly).
• Tip: If it doesn’t sit flat, re-check orientation.

Step 8: Reinstall the housing and torque the bolts

• Start all bolts by hand to avoid cross-threading.
• Use a torque wrench (5–60 Nm range) to tighten evenly in a crisscross pattern.
• Torque to 18 Nm (13 ft-lbs)

Step 9: Reinstall the lower radiator hose

• Slide the hose fully onto the housing neck.
• Use hose clamp pliers to move the clamp back into its original position (past the bead on the neck).
• If the clamp feels weak or won’t hold position, replace it.

Step 10: Refill coolant

• Close the radiator drain.
• Use a spill-free funnel kit (specialty) and funnel to refill with Subaru Super Coolant equivalent, premixed.
• Fill the radiator, then fill the overflow reservoir to the “FULL” line.

Step 11: Bleed air from the cooling system

• Start the engine and set HVAC to full hot with the fan on low.
• Let the engine idle while watching the fluid level in the funnel; add coolant as the level drops.
• As it warms up, gently squeeze the upper radiator hose (wear gloves) to help move trapped air.
• When the thermostat opens, you should feel a noticeable change in hose temperature and see flow in the funnel.
• Once bubbles stop and heat is strong inside the cabin, shut the engine off and let it cool, then top off as needed.

Step 12: Reinstall the undertray and lower the vehicle

• Use the 10mm socket and trim clip remover tool to reinstall the undertray.
• Lower the vehicle using the floor jack (rated 2-ton minimum).

---

✅ After Repair

• With the engine fully warm, check for leaks around the thermostat housing and lower hose connection.
• After a complete cool-down (later the same day or next morning), re-check the radiator level and overflow tank and top off if needed.
• Watch the temperature gauge on your next drive; stop immediately if it climbs abnormally.
• Dispose of old coolant properly (do not pour onto the ground).

---

💰 DIY vs Shop Cost

Shop Cost: ₹8,000-₹18,000 (parts + labor)

DIY Cost: ₹2,500-₹7,500 (parts only)

You Save: ₹5,500-₹10,500 by doing it yourself!

Shop labor rates vary but typically run ₹1,000-₹2,500/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
