🔧 Rogue - Thermostat Replacement

You’ll be removing the thermostat housing on the front of the engine, swapping the thermostat, and refilling/bleeding the coolant. This restores proper engine temperature control and can fix overheating or engine running too cold.

Difficulty Level: Intermediate | Estimated Time: 2–3 hours

---

⚠️ Safety & Precautions

• 🔥 Never open the cooling system on a hot engine; let it cool completely to avoid serious burns.
• 🧊 Coolant is toxic; avoid skin contact and keep away from children and animals.
• 🔌 Disconnect the negative battery cable if you’ll be working near the fan or electrical connectors; the cooling fan can turn on even with the engine off.
• 🧱 Support the front of your Rogue securely with jack stands; never rely on the floor jack alone.
• ♨️ Keep rags handy; some coolant will still spill when you remove hoses.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Ratchet 3/8"
• Ratchet 1/4"
• 10mm socket
• 12mm socket
• 14mm socket
• Short extension 3/8"
• Torque wrench 3/8" drive (5–80 ft-lbs range)
• Flathead screwdriver (medium)
• Phillips screwdriver (medium)
• Pliers (standard slip-joint)
• Hose clamp pliers (specialty)
• Drain pan (at least 10-liter capacity)
• Plastic trim clip removal tool (specialty)
• Shop rags or paper towels
• Small wire brush
• Plastic scraper
• Funnel (coolant-safe)
• Coolant spill-free funnel kit (specialty)
• Safety glasses
• Mechanic gloves
• Flashlight or work light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Engine thermostat with housing (QR25DE) - Qty: 1
• Thermostat housing gasket or O-ring - Qty: 1
• Engine coolant (blue, long-life, premixed 50/50) - Qty: 6–7 liters
• New hose clamps (for lower radiator hose, as needed) - Qty: 2
• Plastic push clips for engine under cover - Qty: 4–6
• Anti-seize compound - Qty: 1 small tube
• Brake cleaner or parts cleaner spray - Qty: 1 can

---

📋 Before You Begin

• Park your Rogue on level ground, engage the parking brake, and place wheel chocks behind the rear wheels.
• Let the engine cool completely (at least 1–2 hours after driving).
• Open the hood and remove the coolant reservoir cap slowly to relieve any remaining pressure once the engine is cool.
• Disconnect the negative battery terminal with a 10mm socket if you’ll be working close to the cooling fan and wiring.
• Have a clean area ready to place removed parts in order, so reassembly is easier.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise and secure the front of the vehicle

• Use a Floor jack (rated 3-ton minimum) to lift the front of your Rogue at the front jacking point behind the front crossmember.
• Place Jack stands (rated 3-ton minimum) under the proper pinch welds or frame points on both sides and lower the vehicle onto them.
• Double-check stability by gently rocking the vehicle before going underneath. If it moves, reposition stands.

Step 2: Remove the lower engine splash shield

• Use a 10mm socket to remove the bolts holding the front lower engine cover (splash shield).
• Use a Plastic trim clip removal tool (specialty) to pop out any plastic clips.
• Set the shield and hardware aside where you can find them easily.

Step 3: Drain some engine coolant

• Place a Drain pan (at least 10-liter capacity) under the radiator drain plug on the passenger side bottom of the radiator.
• Use a Flathead screwdriver (medium) to gently open the plastic drain cock (petcock) and let coolant flow into the pan.
• Drain about 4–5 liters so the level is below the thermostat; then close the drain cock snugly by hand. Do not overtighten. Check for drips after closing.

Step 4: Remove air intake components for access (if needed)

• The thermostat housing is low on the front of the engine near the lower radiator hose. If access from above is tight:
• Use a 10mm socket to remove the bolts holding the air intake duct/box.
• Loosen hose clamps on the intake tube using a Flathead screwdriver (medium) and gently pull the tube off.
• Lift out the air box assembly and set it aside.

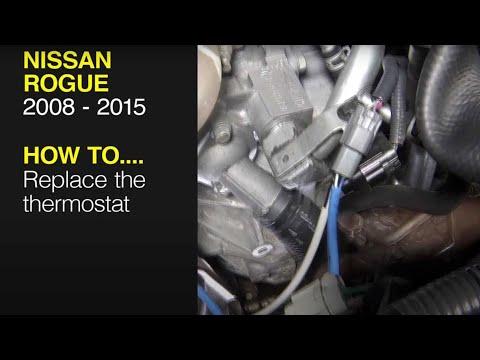

Step 5: Locate the thermostat housing

• Follow the lower radiator hose from the radiator to where it meets the engine block—this metal or plastic piece it attaches to is the thermostat housing.
• Use a Flashlight or work light to clearly see the bolts and any nearby wiring or hoses.

Step 6: Remove the lower radiator hose from thermostat housing

• Place the Drain pan (at least 10-liter capacity) under the thermostat area to catch any remaining coolant.
• Use Pliers (standard slip-joint) or Hose clamp pliers (specialty) to squeeze the hose clamp and slide it back along the hose.
• Twist the hose gently to break it loose, then pull it off the thermostat housing; let any coolant drain into the pan. Twist first, then pull.

Step 7: Disconnect any sensors or small hoses on the housing

• If there is a coolant temperature sensor or small bypass hose on the housing, carefully unplug it:
• For sensors: press the tab on the connector with your finger and pull straight off.
• For small hoses: use Pliers (standard slip-joint) to move the clamp, then twist and pull the hose free.

Step 8: Remove thermostat housing bolts

• Use a 10mm socket with Short extension 3/8" and Ratchet 3/8" to remove the bolts holding the thermostat housing to the engine.
• Note the length and position of each bolt so they go back in the same place.
• Carefully pull the housing straight off. Some coolant may spill; keep the pan underneath.

Step 9: Remove the old thermostat

• Take note of how the thermostat is oriented (which side faces the engine and which faces the hose).
• Pull the thermostat out of its seat; you may need to wiggle it gently.
• Remove the old gasket or O-ring from the housing or engine side.

Step 10: Clean the sealing surfaces

• Use a Plastic scraper to carefully clean the gasket surface on the engine and housing. Do not scratch the metal.
• Use a Small wire brush very lightly if there is stubborn residue, but avoid gouging.
• Spray a bit of Brake cleaner or parts cleaner spray on a rag and wipe both surfaces clean and dry. Surfaces must be smooth and clean.

Step 11: Install the new thermostat

• Place the new gasket or O-ring onto the thermostat or into the groove in the housing, depending on design.
• Install the new thermostat in the exact same orientation as the old one (usually the jiggle pin or small bleed hole at the top).
• Hold it in place and ensure it sits flat and fully seated.

Step 12: Reinstall the thermostat housing

• Position the housing back onto the engine, making sure the thermostat and gasket do not shift.
• Start all housing bolts by hand to avoid cross-threading.
• Use a 10mm socket and Ratchet 3/8" to snug the bolts evenly in a criss-cross pattern.
• Then use the Torque wrench 3/8" drive (5–80 ft-lbs range) and 10mm socket to tighten the housing bolts to 10–12 Nm (7–9 ft-lbs).

Step 13: Reconnect hoses and sensors

• Reattach the lower radiator hose onto the thermostat housing.
• Use Pliers (standard slip-joint) or Hose clamp pliers (specialty) to move the clamp back into its original position.
• Reconnect any small hoses and electrical connectors you removed earlier; push connectors until they click.

Step 14: Reinstall air intake components

• Reinstall the air box and intake duct if removed.
• Use a 10mm socket to tighten the air box bolts snugly (do not overtighten).
• Use a Flathead screwdriver (medium) to tighten the hose clamps on the intake tube.

Step 15: Reinstall the lower splash shield

• Lift the lower engine cover back into place.
• Use the Plastic trim clip removal tool (specialty) to push new or reused clips back in.
• Use a 10mm socket to reinstall and snug all bolts holding the shield.

Step 16: Lower the vehicle

• Use the Floor jack (rated 3-ton minimum) to lift the front slightly off the jack stands.
• Remove the Jack stands (rated 3-ton minimum), then slowly lower the vehicle back to the ground.

Step 17: Refill the cooling system

• Make sure the radiator drain cock is closed.
• Remove the radiator cap if present, or fill through the reservoir if your Rogue is designed that way.
• Place a Funnel (coolant-safe) or Coolant spill-free funnel kit (specialty) in the opening.
• Pour in the correct premixed coolant slowly until it reaches the “FULL” or “MAX” line and the radiator (if accessible) is full.

Step 18: Bleed air from the cooling system

• Reconnect the negative battery terminal with a 10mm socket if you removed it.
• Start the engine and let it idle with the heater set to maximum heat and the blower on low.
• Watch the coolant level in the funnel and add more as it drops.
• Gently squeeze the upper and lower radiator hoses by hand to help push air out. Use gloves, hoses get warm.
• Let the engine warm up until the temperature gauge reaches normal (middle) and the heater blows hot air.
• Once bubbles stop appearing and the level stabilizes, shut off the engine and let it cool completely.
• After it cools, top off coolant to the proper level if it dropped.

Step 19: Final checks for leaks

• With the engine running at normal temperature, inspect the thermostat housing area and lower hose with a Flashlight or work light for any signs of leaks.
• Check under the vehicle for dripping coolant.
• If no leaks are found, reinstall the coolant reservoir cap tightly.

---

✅ After Repair

• Take a short test drive and watch the temperature gauge; it should warm up to the middle and stay steady.
• After the drive, let the engine cool and recheck the coolant level in the reservoir; top off if needed.
• Inspect again for any coolant leaks around the thermostat housing, hoses, and drain plug.
• Over the next few days, check the coolant level and watch for any overheating or no-heat issues.

---

💰 DIY vs Shop Cost

Shop Cost: $280–$450 (parts + labor)

DIY Cost: $70–$140 (parts and coolant)

You Save: $210–$310 by doing it yourself!

Shop labor rates typically run $100–$150/hour. This repair takes a shop approximately 1.5–2.0 hours.

---
