🔧 CX-5 - Thermostat Replacement

On your CX-5, the thermostat controls coolant flow to keep engine temperature stable. Replacing it typically involves draining some coolant, removing the thermostat/housing at the engine, then refilling and bleeding the cooling system.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• 🛑 Never open the coolant reservoir/radiator when hot; hot coolant can spray and burn.
• 🧤 Wear gloves and safety glasses; coolant is toxic and slippery.
• ♻️ Capture coolant in a drain pan and dispose of it properly (keep away from pets).
• 🔌 If you’ll be working near the cooling fan wiring, disconnect the negative battery cable to prevent accidental fan operation.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• Drain pan (at least 10-quart)
• Funnel
• Metric socket set (8mm, 10mm, 12mm)
• 3/8" drive ratchet
• 3/8" drive extensions (3" and 6")
• Torque wrench (3/8" drive, Nm/ft-lb capable)
• Hose clamp pliers
• Pliers
• Trim clip tool
• Flathead screwdriver
• Shop towels

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Engine thermostat - Qty: 1
• Thermostat housing gasket/O-ring - Qty: 1
• Engine coolant (Mazda FL-22 equivalent, pre-mixed) - Qty: 1-2 gallons
• Replacement hose clamps - Qty: 2

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Let the engine cool completely (ideally overnight).
• Set the HVAC to full HOT before bleeding later (this opens the heater circuit).
• If you’ll be near the fan/shroud wiring, disconnect the negative battery cable using a 10mm socket.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm which thermostat design you have

• Before you take anything apart, look at your replacement part: is it a thermostat + housing assembly or a thermostat insert that installs into your existing housing?
• This changes the removal steps and the bolt torque specs.

Step 2: Raise the front (if needed for access)

• Use a floor jack (rated 3-ton minimum) to lift the front at the approved front jacking point.
• Support the vehicle with jack stands (rated 3-ton minimum).

Step 3: Remove the lower engine cover/splash shield

• Use a trim clip tool to pop plastic clips (a clip tool is a fork-shaped pry tool that removes push-clips without breaking them).
• Remove any bolts using a 10mm socket and 3/8" drive ratchet.

Step 4: Drain coolant to below thermostat level

• Place a drain pan (at least 10-quart) under the radiator drain area.
• Open the drain (if equipped) carefully using a flathead screwdriver as needed, and drain enough coolant so the level is below the thermostat.
• Tip: drain only what you need.

Step 5: Access the thermostat area

• In the engine bay, locate the upper/lower radiator hose routing to the engine.
• Remove any intake ducting in the way using an 8mm socket or 10mm socket (fasteners vary by duct).

Step 6: Disconnect hoses at the thermostat housing

• Use hose clamp pliers to compress the spring clamp and slide it back on the hose.
• Twist the hose to break it free, then pull it off. Use shop towels to catch spills.

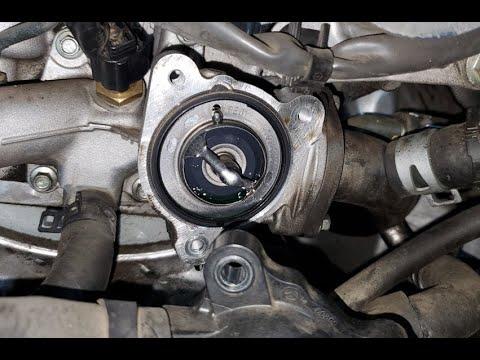

Step 7: Remove the thermostat/housing

• Remove mounting bolts using a 10mm socket and 3/8" drive ratchet with a 3/8" drive extension (3" or 6") as needed.
• Remove the housing and thermostat. Note the orientation (the “jiggle valve”/air bleed pin must face the correct direction when installed).

Step 8: Clean sealing surfaces

• Wipe the mating surfaces clean using shop towels.
• Do not gouge the aluminum sealing surface with a screwdriver.

Step 9: Install the new thermostat and gasket/O-ring

• Install the new thermostat in the same orientation as the old one.
• Install the new gasket/O-ring (never reuse the old seal).

Step 10: Reinstall the housing and torque bolts

• Start bolts by hand to avoid cross-threading.
• Tighten evenly using a torque wrench (3/8" drive, Nm/ft-lb capable).
• Torque spec depends on whether your CX-5 uses the thermostat insert or housing assembly.

Step 11: Reconnect hoses

• Push hoses fully onto the fittings.
• Reposition clamps using hose clamp pliers. Replace weak clamps with new ones.

Step 12: Refill coolant and bleed air

• Refill with Engine coolant (Mazda FL-22 equivalent, pre-mixed) using a funnel.
• Start the engine and let it idle with the heater set to HOT.
• Top off as the level drops and watch for bubbles. Keep an eye on temperature.

Step 13: Reinstall splash shield and lower the vehicle

• Reinstall the shield using a 10mm socket and trim clip tool.
• Lower the vehicle using the floor jack after removing jack stands.

---

✅ After Repair

• Warm the engine to operating temperature and confirm the heater blows hot.
• Check for leaks around the thermostat housing and hose connections.
• After a full cool-down, recheck coolant level and top off if needed.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$550 (parts + labor)

DIY Cost: $40-$150 (parts only)

You Save: $110-$510 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-3 hours.

---
