🔧 Sierra 1500 - Thermostat Replacement

Your Sierra’s thermostat controls engine temperature by opening and closing to let coolant flow to the radiator. If it sticks closed, the engine can overheat; if it sticks open, it may run cold and set a check-engine light.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Never open the coolant cap on a hot engine; pressurized coolant can spray and burn you.
• ⚠️ Support the truck securely if you raise it; never rely on a jack alone.
• ⚠️ Keep coolant off paint and away from pets; it’s toxic and can be fatal if swallowed.
• 🔋 Battery disconnect is not required for this job, but keep hands/tools clear of the electric cooling fan area.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Drain pan (at least 3-gallon)
• Funnel
• Shop towels
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Flat-blade screwdriver
• Hose clamp pliers
• Ratchet
• 10mm socket
• Torque wrench (inch-pound)
• Trim clip removal tool

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Engine thermostat - Qty: 1
• Thermostat seal (O-ring) - Qty: 1
• Coolant (Dex-Cool 50/50 premix) - Qty: 2-3 gallons (as needed to refill)

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear tires.
• Let the engine cool completely (radiator hose should feel cool).
• Set the cabin HVAC to HEAT (full hot) so coolant can circulate through the heater core during refill.
• If you plan to raise the front for easier access, lift with a floor jack and support with jack stands under the frame.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Relieve any leftover pressure

• Put on safety glasses and nitrile gloves.
• Slowly loosen the coolant reservoir cap by hand. If you hear pressure, tighten it back and wait longer for the engine to cool.

Step 2: Drain enough coolant to get below the thermostat level

• Place a drain pan under the radiator drain area.
• If equipped with a radiator drain cock, open it carefully by hand or with a flat-blade screwdriver (turn slowly).
• Drain until the coolant level is below the upper radiator hose connection at the engine.
• Tip: Save clean coolant in a clean container.

Step 3: Remove the air intake duct (for room)

• Use a flat-blade screwdriver to loosen the intake duct clamps.
• Disconnect any plastic retainers using a trim clip removal tool.
• Lift the intake duct out and set it aside.

Step 4: Remove the upper radiator hose from the thermostat housing

• Use hose clamp pliers to squeeze the hose clamp and slide it back on the hose.
• Twist the hose gently by hand to break it loose, then pull it off the thermostat housing.
• Catch any spill with shop towels and keep the drain pan underneath.
• Tip: Don’t pry hard—plastic fittings can crack.

Step 5: Remove the thermostat housing

• Use a ratchet and 10mm socket to remove the thermostat housing bolts.
• Lift the housing off carefully. Note the thermostat orientation before removing it.

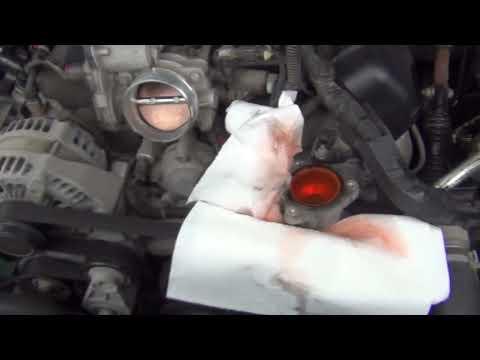

Step 6: Replace the thermostat and seal

• Remove the old thermostat and old O-ring seal by hand.
• Clean the sealing surfaces with shop towels (no gouging/scraping).
• Install the new thermostat in the same orientation as the original.
• Install the new O-ring seal (lightly wet it with fresh coolant so it seats smoothly).

Step 7: Reinstall and torque the thermostat housing

• Reinstall the thermostat housing by hand-starting the bolts to avoid cross-threading.
• Use a torque wrench (inch-pound) to tighten the housing bolts evenly: Torque to 89 in-lbs (10 Nm).

Step 8: Reconnect the upper radiator hose

• Push the hose fully onto the housing until it bottoms out.
• Use hose clamp pliers to move the clamp back into its original position.

Step 9: Reinstall the air intake duct

• Reinstall the duct and tighten the clamps with a flat-blade screwdriver.
• Reinstall any clips using the trim clip removal tool.

Step 10: Refill coolant and purge air

• Use a funnel to refill the coolant reservoir with Dex-Cool 50/50 premix to the proper mark.
• Start the engine and let it idle with the cap off (keep hands clear of belts/fan area).
• As the engine warms up, watch the coolant level and add as needed.
• When the upper radiator hose gets hot, the thermostat has opened—top off again and install the cap.

---

✅ After Repair

• Check for leaks around the thermostat housing and upper radiator hose with the engine running.
• Take a 10-15 minute test drive while watching the temperature gauge.
• Let the engine cool fully, then recheck the coolant level and top off if needed.
• If a check-engine light was on for temperature-related codes, it may clear after a few drive cycles; otherwise, it may need to be cleared with a scan tool.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor)

DIY Cost: $35-$90 (parts only)

You Save: $160-$415 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-2.0 hours.

---
