🔧 Malibu - Thermostat Replacement

The thermostat controls coolant flow so your A4—sorry, your Malibu—can reach and hold the correct operating temperature. On your Malibu, the thermostat is built into (or mounts to) the thermostat housing at the engine, so you’ll drain some coolant, swap the housing/thermostat seal, then refill and bleed air out.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Never open the coolant cap when hot; let the engine cool fully.
• ⚠️ Coolant is toxic—keep it off skin and away from pets; capture all drained coolant.
• ⚠️ Support the car with jack stands if you raise it; never rely on a jack.
• ⚠️ Keep hands/tools clear of the radiator fan; it can turn on unexpectedly.
• Disconnecting the battery is not required for this job, but it’s OK to disconnect the negative terminal if you’ll be working near wiring connectors.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Drain pan (at least 2-gallon)
• Funnel
• Shop towels
• Trim clip tool
• Flathead screwdriver
• Hose clamp pliers
• Ratchet
• Extension set
• 8mm socket
• 10mm socket
• Torque wrench (inch-pound capable)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Engine thermostat assembly - Qty: 1
• Thermostat housing gasket / seal - Qty: 1
• Coolant (Dex-Cool 50/50 premix) - Qty: 2 gallons
• Distilled water - Qty: 1 gallon

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear tires.
• Let the engine cool completely (upper radiator hose should feel cool).
• Set your HVAC to HEAT (full hot) later during bleeding so coolant can circulate through the heater core.
• Tip: Take a photo of hose routing first.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Relieve pressure and access the cooling system

• Put on safety glasses and nitrile gloves.
• Slowly loosen the coolant surge tank cap to the first stop to release any residual pressure, then remove it fully.
• Remove the engine cover (if equipped) by pulling upward firmly by hand.

Step 2: Raise the front (optional but helpful)

• Use a floor jack (rated 3-ton minimum) at the front center jack point and lift the front of the car.
• Set the car down onto jack stands (rated 3-ton minimum) placed at the proper front support points.

Step 3: Drain coolant to below thermostat level

• Place a drain pan (at least 2-gallon) under the radiator drain area.
• Open the radiator drain cock (if equipped) by hand or with a flathead screwdriver as needed, and drain until flow slows.
• If there is no easy drain cock access, remove the lower radiator hose clamp using hose clamp pliers and carefully crack the hose loose to drain.
• Close the drain cock or reinstall the lower hose once drained.

Step 4: Remove the air intake ducting for access

• Loosen intake clamps using an 8mm socket (or flathead screwdriver, depending on clamp type).
• Disconnect any small breather tube(s) by hand (twist gently, then pull).
• Lift out the intake duct and set it aside.

Step 5: Disconnect hoses from the thermostat housing

• Locate the thermostat housing at the engine coolant outlet area.
• Use hose clamp pliers to slide the spring clamps back on the hose(s).
• Twist the hose ends to break them free, then pull them off. Use shop towels to catch spills.
• Tip: Don’t pry hard on plastic fittings.

Step 6: Unplug any electrical connector on the housing (if equipped)

• If your housing has a sensor/connector, press the lock tab and unplug it by hand.
• If the connector is stubborn, use a trim clip tool gently to lift the lock tab.

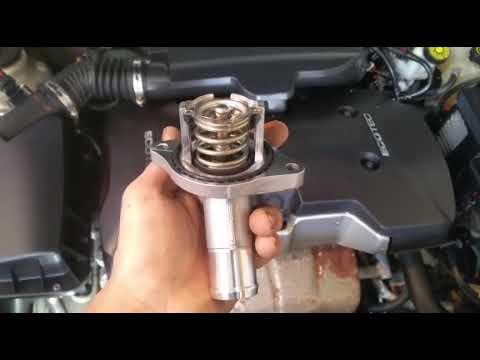

Step 7: Remove the thermostat housing/thermostat

• Remove the housing bolts using a 10mm socket with a ratchet and extension set.
• Pull the housing straight off. Expect some coolant to spill—keep the drain pan underneath.
• Remove the old gasket/seal and wipe the mating surface clean with shop towels.

Step 8: Install the new thermostat and gasket/seal

• Install the new gasket/seal in the same orientation as the old one.
• Position the thermostat/housing and start all bolts by hand (this prevents cross-threading).
• Tighten housing bolts evenly using a 10mm socket.
• Final tighten with a torque wrench (inch-pound capable): Torque to 10 Nm (89 in-lbs).

Step 9: Reconnect hoses and clamps

• Push hoses fully onto their ports.
• Reposition clamps to their original locations using hose clamp pliers.
• Reconnect any electrical connector by hand until it clicks.

Step 10: Reinstall the air intake ducting

• Reinstall the intake duct and any breather tube(s).
• Tighten clamps with an 8mm socket (or flathead screwdriver).

Step 11: Refill coolant and bleed air

• Lower the car from jack stands (rated 3-ton minimum) using the floor jack (rated 3-ton minimum).
• Fill the surge tank slowly using a funnel with Dex-Cool 50/50 premix to the COLD line.
• If you used concentrate, mix with distilled water (never tap water) to a 50/50 mix before filling.
• Start the engine and let it idle with the cap off; set HVAC to full heat.
• As the engine warms up, top off as the level drops. Watch for a steady return flow into the tank.
• If your thermostat housing has a small bleeder screw, crack it open slightly to release air, then close it once coolant (no bubbles) flows. Use a flathead screwdriver if needed.
• Once warm and stable, install the surge tank cap.

---

✅ After Repair

• Let the engine reach normal operating temp and confirm the cabin heat works normally.
• Check carefully for leaks around the thermostat housing and hose connections with a bright light.
• After a complete cool-down, recheck coolant level at the surge tank and top off to the COLD mark.
• If the check engine light comes on or temperature fluctuates, stop and recheck for trapped air or a loose connector.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$650 (parts + labor)

DIY Cost: $60-$180 (parts only)

You Save: $170-$590 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
