🔧 Forte - Thermostat Replacement

The thermostat controls engine temperature by opening and closing coolant flow. If it sticks closed, the engine can overheat; if it sticks open, the engine may run cold and set a check engine light.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

Assumption: 2.0L thermostat is in the engine-side housing connected to the lower radiator hose.

---

⚠️ Safety & Precautions

• ⚠️ Never open the coolant cap on a hot engine; wait until fully cool.
• ⚠️ Use jack stands anytime you’re under the car; never rely on a floor jack alone.
• ⚠️ Coolant is toxic—keep it away from kids/pets and clean spills immediately.
• ⚠️ Wear gloves and eye protection; coolant can irritate skin and eyes.
• 🔋 Battery disconnect is not required for this repair unless you’ll remove electrical connectors near the radiator fan.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• Drain pan (at least 10-quart)
• Funnel
• Trim clip removal tool
• Ratchet
• Extension set (3" and 6")
• 10mm socket
• 12mm socket
• Flathead screwdriver
• Pliers
• Hose clamp pliers
• Torque wrench (10–80 ft-lbs range)
• Plastic gasket scraper
• Shop towels

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Engine thermostat - Qty: 1
• Thermostat gasket or O-ring seal - Qty: 1
• Hyundai/Kia long-life coolant (P-OAT) premix - Qty: 2 gallons
• Small hose clamps - Qty: 2

---

📋 Before You Begin

• 🧰 Park on level ground, set the parking brake, and place wheel chocks behind the rear wheels.
• 🌡️ Let the engine cool completely (upper radiator hose should feel cool).
• 🧼 Put a drain pan under the radiator area to catch coolant.
• 📌 If you remove any plastic undercovers, keep the clips grouped so they go back in the same spots.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise the front of the car safely

• Use a floor jack to lift the front jacking point.
• Set the car onto jack stands at the proper support points.
• Place wheel chocks behind the rear wheels.

Step 2: Remove the lower splash shield (if equipped)

• Use a trim clip removal tool to pop out plastic clips.
• Use a 10mm socket and ratchet to remove any bolts.

Step 3: Drain enough coolant to get below thermostat level

• Place a drain pan (at least 10-quart) under the radiator drain area.
• Slowly loosen the coolant reservoir cap by hand to release any leftover pressure.
• Open the radiator drain (petcock) using pliers or a flathead screwdriver (whichever fits your drain style).
• Drain until the flow slows down; you typically don’t need the system bone-dry for a thermostat swap.

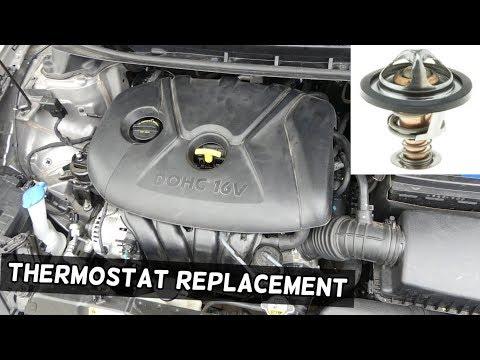

Step 4: Access the thermostat housing

• From above, remove the intake snorkel/ducting if it blocks access using a flathead screwdriver (worm clamp) and a 10mm socket (bolts).
• Locate the lower radiator hose where it meets the engine—this is commonly attached to the thermostat housing.
• Tip: Follow the lower hose from radiator to engine.

Step 5: Disconnect the hose from the thermostat housing

• Slide the hose clamp back using hose clamp pliers (this tool squeezes spring clamps so you can move them).
• Twist the hose gently to break it free, then pull it off the housing.
• Catch leftover coolant with the drain pan and use shop towels to control spills.

Step 6: Remove the thermostat housing

• Remove the housing bolts using a 10mm socket (some setups may use 12mm socket) with a ratchet and extension set.
• Carefully separate the housing from the engine. Don’t pry aggressively—aluminum surfaces can gouge easily.

Step 7: Replace the thermostat and seal

• Note the thermostat orientation before removal (spring side typically faces the engine).
• Remove the old thermostat by hand and remove the old gasket/O-ring.
• Clean the mating surfaces using a plastic gasket scraper and shop towels.
• Install the new thermostat and the new gasket/O-ring.
• Tip: Do not use sealant unless specified.

Step 8: Reinstall the thermostat housing

• Start all bolts by hand first to prevent cross-threading.
• Tighten bolts evenly using a ratchet.
• Final-tighten using a torque wrench: Torque to OEM specification.

Step 9: Reconnect the hose and reassemble access parts

• Push the hose fully onto the housing.
• Reposition the clamp using hose clamp pliers so it sits past the bead on the neck.
• Reinstall intake ducting using a flathead screwdriver and 10mm socket.
• Reinstall the splash shield using a trim clip removal tool and 10mm socket.

Step 10: Refill and bleed the cooling system

• Lower the car off the jack stands using the floor jack.
• Refill coolant slowly using a funnel at the reservoir (or radiator fill point if equipped).
• Start the engine and set the heater to full hot (this helps purge air from the heater core).
• Let the engine idle and watch the temperature gauge. Add coolant as the level drops.
• Once warm, gently squeeze the upper radiator hose (with gloves) to help burp trapped air.
• When the radiator fan cycles on/off and heat blows consistently hot, top off to the “FULL” line.

---

✅ After Repair

• 🧪 Check for leaks around the thermostat housing and hose connection with the engine running.
• 🌡️ Road test 10–15 minutes and confirm the temperature gauge stays normal.
• 🧴 Recheck coolant level after the engine cools fully; top off if needed.
• 🧹 Properly dispose of old coolant at a recycling center or auto parts store that accepts it.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$750 (parts + labor)

DIY Cost: $60-$180 (parts only)

You Save: $170-$690 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
