🔧 Grand Cherokee - Thermostat Replacement

Your Grand Cherokee uses a thermostat in the coolant outlet housing to control engine temperature. Replacing it requires draining some coolant, removing the housing, installing a new thermostat/seal, then refilling and bleeding the cooling system so no air pockets remain.

Difficulty Level: Intermediate | Estimated Time: 1.5-2.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Only work on a completely cold engine. Hot coolant can spray out and cause serious burns.
• ⚠️ Coolant is toxic to people and pets. Catch it in a drain pan and wipe spills right away.
• ⚠️ Do not remove the coolant pressure cap when the engine is hot.
• ⚠️ Disconnecting the battery is not required for this repair, but keep tools away from the positive battery terminal.
• ⚠️ Use the correct OAT coolant type. Mixing coolant types can cause sludge and cooling system damage.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 8mm socket
• 10mm socket
• 13mm socket
• 3/8-inch drive ratchet
• 3/8-inch drive 6-inch extension
• Torque wrench inch-pound range
• Flat-blade screwdriver
• Hose clamp pliers
• Plastic trim tool
• Coolant drain pan 2-gallon minimum
• Funnel with spill-free adapter kit
• Shop towels
• Plastic scraper
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Engine thermostat - Qty: 1
• Thermostat seal/O-ring - Qty: 1
• Mopar-compatible OAT coolant concentrate or premix - Qty: 1-2 gallons
• Distilled water - Qty: 1 gallon if using concentrate

---

📋 Before You Begin

• Park your Grand Cherokee on level ground and let the engine cool fully, ideally for several hours.
• Set the parking brake and keep the transmission in Park.
• Open the hood and remove the engine cover by lifting it upward by hand.
• A spill-free funnel helps remove trapped air from the cooling system. It attaches to the coolant bottle like a tall funnel.
• Use only coolant that meets Chrysler/Jeep OAT specification. Do not use universal green coolant.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the Engine Cover

• Put on safety glasses and nitrile gloves.
• Grip the engine cover with both hands and pull straight upward by hand.
• Set the cover aside where it will not get stepped on.
• Tip: Pull upward, not sideways.

Step 2: Relieve Cooling System Pressure

• Make sure the engine is cold before continuing.
• Slowly loosen the coolant pressure cap on the coolant reservoir by hand.
• If you hear pressure escaping, stop and wait until it finishes before removing the cap completely.

Step 3: Drain Some Coolant

• Place the coolant drain pan 2-gallon minimum under the passenger-side lower radiator area.
• Use a flat-blade screwdriver if needed to open the radiator drain cock carefully.
• Drain about 1 gallon of coolant, then close the drain cock snugly by hand or with the flat-blade screwdriver.
• Do not overtighten the plastic drain cock.
• Tip: Save coolant only if clean and fresh.

Step 4: Clear Access to the Thermostat Housing

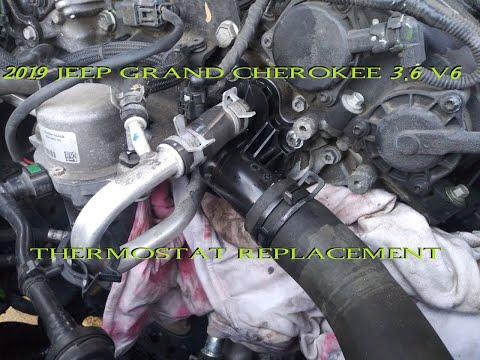

• The thermostat housing is at the front of the 3.6L engine where the lower radiator hose connects.
• If the intake air duct blocks your hand access, use an 8mm socket or flat-blade screwdriver to loosen the air duct clamp.
• Use a 10mm socket to remove any small bracket fasteners that block direct access.
• Move the duct or bracket aside gently without forcing wiring or hoses.

Step 5: Remove the Lower Radiator Hose from the Housing

• Place shop towels under the thermostat housing to catch drips.
• Use hose clamp pliers to squeeze the spring clamp on the lower radiator hose.
• Slide the clamp back onto the hose.
• Twist the hose gently by hand to break it loose, then pull it off the thermostat housing.
• If the hose is stuck, use a plastic trim tool to carefully loosen the hose edge.
• Do not pry hard on the plastic housing.

Step 6: Remove the Thermostat Housing Bolts

• Use a 10mm socket, 3/8-inch drive ratchet, and 3/8-inch drive 6-inch extension to remove the thermostat housing bolts.
• Support the housing with your free hand so it does not fall when the last bolt comes out.
• Pull the housing away from the engine carefully.
• Note the thermostat direction before removing it. The spring side faces into the engine.

Step 7: Remove the Old Thermostat and Seal

• Remove the old thermostat by hand.
• Remove the old seal/O-ring by hand or with a plastic trim tool.
• Use a plastic scraper and shop towels to clean the sealing surface.
• Do not gouge or scratch the aluminum sealing surface.
• Tip: Clean surfaces prevent leaks.

Step 8: Install the New Thermostat

• Install the new thermostat seal/O-ring onto the new engine thermostat.
• Place the thermostat into the housing/engine in the same direction as the old one.
• Make sure the thermostat sits flat and the seal is not pinched.
• Do not use RTV silicone unless the replacement part instructions specifically require it.

Step 9: Reinstall the Thermostat Housing

• Position the thermostat housing squarely against the engine by hand.
• Start all bolts by hand first to avoid cross-threading.
• Use a 10mm socket, 3/8-inch drive ratchet, and 3/8-inch drive 6-inch extension to snug the bolts evenly.
• Use a torque wrench inch-pound range to tighten the thermostat housing bolts to Torque to 12 Nm (106 in-lbs).

Step 10: Reconnect the Lower Radiator Hose

• Push the lower radiator hose fully onto the thermostat housing by hand.
• Use hose clamp pliers to move the spring clamp back to its original position.
• Make sure the clamp sits behind the hose bead, not on the very edge of the hose.

Step 11: Reinstall Moved Components

• If you removed or loosened the intake air duct, reinstall it now.
• Use an 8mm socket or flat-blade screwdriver to tighten the duct clamp snugly.
• If any brackets were removed, use a 10mm socket or 13mm socket as applicable to reinstall them.
• Do not overtighten small plastic or sheet-metal fasteners.

Step 12: Refill the Cooling System

• Install the funnel with spill-free adapter kit onto the coolant reservoir.
• Add the correct Mopar-compatible OAT coolant concentrate or premix.
• If using concentrate, mix it 50/50 with distilled water before filling.
• Fill slowly until the coolant level reaches the proper mark on the reservoir.

Step 13: Bleed Air from the Cooling System

• Leave the funnel with spill-free adapter kit installed and partly filled with coolant.
• Start the engine and let it idle.
• Set the climate control to full heat and low fan speed from the center controls.
• Watch for bubbles in the funnel as trapped air comes out.
• When the upper radiator hose gets warm and the cabin heater blows hot air, the thermostat has opened.
• Add coolant as needed to keep the reservoir from running low.
• Turn the engine off once bubbling slows and the temperature gauge stays normal.

Step 14: Final Level Check

• Let the engine cool completely.
• Remove the funnel with spill-free adapter kit and reinstall the coolant pressure cap by hand.
• Check the coolant level in the reservoir and top off to the correct cold fill mark.
• Wipe the area dry with shop towels so new leaks are easier to spot.

---

✅ After Repair

• ✅ Start the engine and check around the thermostat housing and hose connection for leaks.
• ✅ Take a short test drive while watching the temperature gauge. It should stay near the normal middle range.
• ✅ After the engine cools, recheck the coolant level and top off if needed.
• ✅ If the check engine light was on for a thermostat code, clear it with a scan tool after confirming the repair.
• ✅ Recheck for leaks again after one full heat cycle and after the next drive.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor)

DIY Cost: $45-$120 (parts only)

You Save: $205-$330 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1-2 hours.

---
