🔧 Tucson - Thermostat Replacement

Replacing the thermostat on your Tucson helps restore proper engine warm-up and cooling system control. The thermostat sits in the coolant outlet housing and opens as the engine warms, allowing coolant to flow through the radiator.

Difficulty Level: Beginner-Intermediate | Estimated Time: 1.5-2.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Only work on a completely cold engine; hot coolant can cause severe burns.
• ⚠️ Coolant is toxic to people and pets. Catch it in a drain pan and clean spills immediately.
• ⚠️ Do not open the radiator cap or reservoir cap when the engine is hot.
• ⚠️ Disconnecting the battery is not normally required for this thermostat repair.
• ⚠️ Keep coolant off belts and electrical connectors near the thermostat area.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 12mm socket
• 3/8-inch ratchet
• 3/8-inch extension set
• Torque wrench rated 5-50 Nm
• Flat-blade screwdriver
• Pliers
• Hose clamp pliers (specialty)
• Plastic trim tool
• Drain pan 2-gallon minimum
• Funnel with narrow spout
• Plastic gasket scraper
• Shop towels
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Engine thermostat - Qty: 1
• Thermostat seal or gasket - Qty: 1
• Hyundai-compatible ethylene glycol coolant concentrate or premix - Qty: 1 gallon
• Distilled water - Qty: 1 gallon if using concentrate

---

📋 Before You Begin

• Park your Tucson on level ground and let the engine cool fully, ideally overnight.
• Set the parking brake and place the transmission in Park.
• Open the hood and remove the engine cover if equipped by lifting it upward by hand.
• Set the cabin heater temperature to full hot before draining coolant. This helps coolant circulate during refilling.
• Have a clean drain pan ready. A drain pan is a low, wide container used to catch old coolant.
• Use only coolant compatible with Hyundai aluminum engines. Do not mix random coolant types.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the Lower Splash Shield if Needed

• Put on safety glasses and nitrile gloves.
• Use a 10mm socket and 3/8-inch ratchet to remove any lower splash shield bolts blocking access to the radiator drain area.
• Use a plastic trim tool to remove any plastic push clips carefully.
• Keep fasteners grouped by location.

Step 2: Drain Some Coolant

• Place the drain pan 2-gallon minimum under the radiator drain area.
• Slowly loosen the radiator drain plug by hand or with pliers if it is tight.

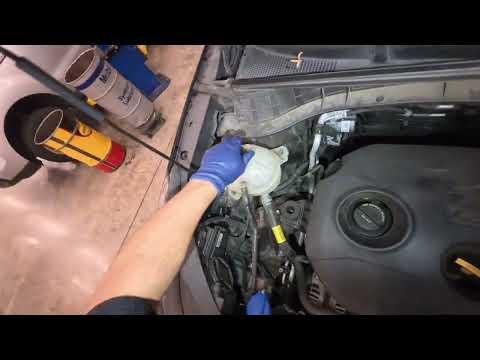

• Open the coolant reservoir cap by hand after the drain starts flowing to help coolant drain smoothly.
• Drain about 1 gallon, or enough so the coolant level drops below the thermostat housing.
• Close the radiator drain plug by hand once the flow slows. Do not overtighten plastic drain plugs.

Step 3: Find the Thermostat Housing

• Follow the large lower radiator hose to where it connects to the engine. That connection point is the thermostat housing.
• The thermostat housing is the small coolant outlet cover that holds the thermostat in place.
• Use shop towels to wipe dirt away from the housing area before opening it.

Step 4: Move the Radiator Hose Clamp Back

• Use hose clamp pliers (specialty) or pliers to squeeze the lower radiator hose clamp tabs together.
• Slide the clamp back along the hose several inches.
• A hose clamp plier is a tool that squeezes spring clamps more safely than regular pliers.
• Twist the hose gently, do not pry hard.

Step 5: Remove the Lower Radiator Hose

• Use your hand to twist the hose gently to break it loose from the housing.
• If stuck, use a flat-blade screwdriver carefully at the hose edge only. Do not gouge the metal housing.
• Pull the hose off and aim it toward the drain pan 2-gallon minimum because more coolant may spill.

Step 6: Remove the Thermostat Housing Bolts

• Use a 12mm socket, 3/8-inch extension set, and 3/8-inch ratchet to remove the thermostat housing bolts.
• Support the housing by hand as the last bolt comes out.
• Pull the housing straight away from the engine.
• If it sticks, tap gently by hand. Do not pry between sealing surfaces with metal tools.

Step 7: Remove the Old Thermostat

• Note the direction of the old thermostat before removing it.
• Pull the thermostat out by hand.
• Remove the old thermostat seal or gasket by hand.
• Use a plastic gasket scraper to clean the sealing surface if residue remains.
• Do not let old gasket pieces fall into the coolant passage.

Step 8: Install the New Thermostat

• Install the new engine thermostat in the same direction as the old one.
• Fit the new thermostat seal or gasket evenly around the thermostat or housing as designed.
• If the thermostat has a small jiggle valve or bleed pin, position it at the top.
• The jiggle valve is a tiny loose pin that lets trapped air pass during filling.
• Correct direction matters for cooling.

Step 9: Reinstall the Thermostat Housing

• Place the housing squarely against the engine by hand.
• Start all housing bolts by hand first to avoid cross-threading.
• Use a 12mm socket, 3/8-inch extension set, and 3/8-inch ratchet to snug the bolts evenly.
• Use a torque wrench rated 5-50 Nm to tighten the thermostat housing bolts to Torque to 18-22 Nm (13-16 ft-lbs).
• Do not overtighten. The housing can crack or warp.

Step 10: Reconnect the Lower Radiator Hose

• Push the lower radiator hose fully onto the thermostat housing by hand.
• Use hose clamp pliers (specialty) or pliers to move the spring clamp back to its original position.
• Make sure the clamp sits behind the raised bead on the housing neck.
• Wipe the area dry with shop towels so leaks are easier to spot later.

Step 11: Refill the Cooling System

• Use a funnel with narrow spout to fill the coolant reservoir with Hyundai-compatible coolant mixture.
• If using concentrate, mix coolant and distilled water at 50/50 before pouring.
• Fill to the “F” or “MAX” mark on the reservoir.
• Reinstall the reservoir cap by hand.

Step 12: Bleed Air from the Cooling System

• Start the engine and let it idle with the cabin heater set to full hot and blower on low.
• Watch the temperature gauge. It should rise slowly toward normal and stay steady.
• Use shop towels to check around the thermostat housing and lower hose for leaks.
• When the radiator fan cycles on, shut the engine off and let it cool completely.
• After cooling, use the funnel with narrow spout to top off the coolant reservoir to the “F” or “MAX” mark.

Step 13: Reinstall the Lower Splash Shield

• Use a plastic trim tool to reinstall any push clips.
• Use a 10mm socket and 3/8-inch ratchet to reinstall splash shield bolts.
• Tighten small splash shield bolts snugly by hand tool only. Do not overtighten plastic retainers.

---

✅ After Repair

• ✅ Road test your Tucson for 10-15 minutes while watching the temperature gauge.
• ✅ After the engine cools fully, recheck the coolant level and top off if needed.
• ✅ Inspect the thermostat housing, hose connection, and radiator drain plug for leaks.
• ✅ If the heater blows cold air or the temperature gauge rises too high, stop driving and let the engine cool. Air may still be trapped.
• ✅ Dispose of old coolant at a recycling center or repair shop. Do not pour it on the ground or into drains.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$350 (parts + labor)

DIY Cost: $35-$90 (parts only)

You Save: $145-$260 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
