🔧 Tucson - Thermostat Replacement

Your Tucson’s thermostat controls coolant flow so the engine reaches (and holds) the correct operating temperature. Replacing it usually fixes issues like slow warm-up, overheating, or a P0128-type “coolant temperature” code.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Never open the radiator or reservoir cap on a hot engine; hot coolant can burn you.
• ⚠️ Support the vehicle with jack stands; never rely on a floor jack alone.
• ⚠️ Keep coolant off belts/electrical connectors; wipe spills immediately.
• ⚠️ Dispose of coolant properly; it’s toxic to people and animals.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Wheel chocks
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Drain pan (10-quart minimum)
• Spill-free coolant funnel kit (specialty)
• Shop rags
• Trim clip removal tool
• Flat-blade screwdriver
• Hose clamp pliers
• 10mm socket
• 12mm socket
• 3/8" ratchet
• 3/8" extension (6")
• Torque wrench (3/8" drive)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Engine thermostat - Qty: 1
• Thermostat seal / O-ring - Qty: 1
• Hyundai-compatible coolant (P-OAT long-life) - Qty: 1 (enough for drain/refill)
• Distilled water - Qty: 1 (only if using концентrate coolant)
• Replacement hose clamp - Qty: 1 (only if original clamp is weak/damaged)

---

📋 Before You Begin

• Park on level ground, set the parking brake, and let the engine go fully cold.
• Raise the front safely with a floor jack and place it on jack stands; use wheel chocks at the rear wheels.
• Set your HVAC to full heat before the final bleed (this helps coolant flow through the heater core).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the lower splash shield (if equipped)

• Use a floor jack (rated 3-ton minimum) and jack stands (rated 3-ton minimum) to safely support the front.
• Use a trim clip removal tool and 10mm socket with a 3/8" ratchet to remove the fasteners and drop the under-cover.

Step 2: Drain the coolant

• Place a drain pan (10-quart minimum) under the radiator drain area.
• Slowly loosen the coolant reservoir cap by hand (only if the engine is cold) to relieve any residual pressure.
• Open the radiator drain (petcock) using a flat-blade screwdriver and drain coolant into the pan.
• Tip: Keep the stream controlled to reduce mess.

Step 3: Make room to access the thermostat housing

• Open the hood and remove any top engine cover by pulling up firmly by hand (if present).
• Use a flat-blade screwdriver to loosen the intake duct clamps as needed, then move the intake ducting aside for access.
• Wipe any dirt around the thermostat housing area using shop rags so debris doesn’t fall into the cooling system.

Step 4: Disconnect the radiator hose from the thermostat housing

• Use hose clamp pliers to compress the spring clamp and slide it back on the hose.
• Twist the hose gently by hand to break it free, then pull it off the thermostat housing.
• Catch remaining coolant with the drain pan (10-quart minimum).
• Tip: Twisting helps more than pulling.

Step 5: Remove the thermostat housing

• Use a 10mm socket (and a 3/8" extension (6") if needed) with a 3/8" ratchet to remove the thermostat housing bolts.
• Remove the housing and thermostat. Keep note of the thermostat’s orientation as it comes out.
• Clean the mating surface with shop rags; do not gouge the aluminum sealing surface.

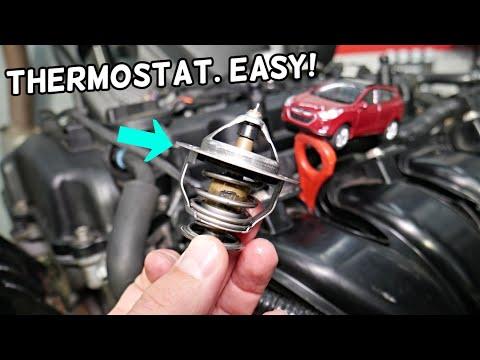

Step 6: Install the new thermostat and seal

• Install the new thermostat seal / O-ring onto the thermostat or into the housing (match the original placement).
• Install the new engine thermostat in the same orientation as removed.
• Reinstall the thermostat housing and hand-start all bolts to prevent cross-threading.
• Use a torque wrench (3/8" drive) to tighten housing bolts evenly: Torque to 10.8 Nm (8.0 ft-lbs).

Step 7: Reconnect the hose and reassemble

• Push the radiator hose fully onto the thermostat housing.
• Use hose clamp pliers to move the clamp back into its original position.
• Reinstall the intake ducting and tighten clamps using a flat-blade screwdriver.
• Reinstall the under-cover using a trim clip removal tool and 10mm socket.

Step 8: Refill and bleed air from the cooling system

• Install a spill-free coolant funnel kit (specialty) onto the reservoir/radiator fill point (whichever your Tucson uses for filling).
• Refill with Hyundai-compatible coolant (P-OAT long-life) (premix, or mix concentrate with distilled water to the correct ratio).
• Start the engine and let it idle. Set HVAC to hottest temperature and medium fan.
• Watch for air bubbles purging; keep the funnel level topped up.
• Once the radiator fan cycles and heat is steady from the vents, shut the engine off and let it cool fully, then set the coolant level to the “FULL” mark.

---

✅ After Repair

• Check for leaks around the thermostat housing and hose connection with the engine running.
• Verify the temperature gauge behaves normally and cabin heat works.
• Recheck coolant level the next morning (cold engine) and top off if needed.
• If you had a warning light/code, clear it and confirm it does not return after a few drive cycles.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$550 (parts + labor)

DIY Cost: $40-$160 (parts only)

You Save: $210-$390 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
