🔧 Tucson - Thermostat Replacement

Replacing the thermostat on your Tucson involves draining part of the cooling system, removing the thermostat housing, installing a new thermostat and seal, then refilling and bleeding the cooling system. The thermostat controls coolant flow so the engine warms up properly and does not overheat.

Difficulty Level: Intermediate | Estimated Time: 1.5-2.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Only work on the cooling system when the engine is completely cold. Hot coolant can cause severe burns.
• ⚠️ Do not remove the radiator cap or coolant reservoir cap when the engine is hot.
• ⚠️ Keep coolant away from pets and children. It is toxic and often tastes sweet.
• ⚠️ Support the front of your Tucson with jack stands if you raise it. Never rely on a floor jack alone.
• ⚠️ Battery disconnect is not normally required for this thermostat replacement.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 12mm socket
• 3/8-inch drive ratchet
• 3/8-inch drive 6-inch extension
• Torque wrench 5-50 Nm
• Flat-blade screwdriver
• Hose clamp pliers
• Plastic trim clip remover
• Drain pan 2-gallon minimum
• Coolant funnel kit spill-free
• Floor jack rated 2-ton minimum
• Jack stands rated 2-ton minimum
• Wheel chocks
• Shop towels
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Engine coolant thermostat - Qty: 1
• Thermostat housing seal or O-ring - Qty: 1
• Hyundai-compatible phosphate-enhanced ethylene glycol coolant concentrate or premix - Qty: 1 gallon
• Distilled water - Qty: 1 gallon if using concentrate

---

📋 Before You Begin

• 🅿️ Park your Tucson on level ground, shift to Park, and set the parking brake.
• 🧊 Let the engine cool fully for several hours before opening the cooling system.
• 🛞 Place wheel chocks behind the rear wheels before lifting the front.
• 💧 A spill-free funnel is a funnel that locks into the radiator or reservoir opening to help remove trapped air while refilling coolant.
• 🔍 Inspect the radiator hoses before starting. If a hose is swollen, cracked, or oil-soaked, replace it while the coolant is drained.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise and Secure the Front

• Use wheel chocks behind the rear wheels.
• Use a floor jack rated 2-ton minimum at the front center jacking point to raise your Tucson slightly.
• Place jack stands rated 2-ton minimum under the proper front support points.
• Gently lower the vehicle onto the jack stands.
• Give the vehicle a small shake test.

Step 2: Remove the Lower Engine Cover

• Use a 10mm socket and 3/8-inch drive ratchet to remove the lower splash shield bolts.
• Use a plastic trim clip remover to remove any plastic retainers.
• Set the shield and hardware aside in order.

Step 3: Open the Cooling System Safely

• Put on safety glasses and nitrile gloves.
• Make sure the engine is cold.
• Slowly loosen the coolant reservoir cap by hand to release any leftover pressure.
• Remove the cap fully once there is no pressure sound.

Step 4: Drain Some Coolant

• Place a drain pan 2-gallon minimum under the radiator drain area.
• Use a flat-blade screwdriver if needed to open the radiator drain plug carefully.
• Drain enough coolant so the level is below the thermostat housing, usually about 1 gallon.
• Close the radiator drain plug by hand until snug. Do not overtighten plastic drain plugs.

Step 5: Locate the Thermostat Housing

• Follow the lower radiator hose from the radiator toward the engine.
• The hose connects to the thermostat housing on the engine side.
• Use shop towels around the housing area to catch small spills.

Step 6: Remove the Lower Radiator Hose from the Housing

• Use hose clamp pliers to squeeze the spring clamp tabs together.
• A spring clamp is a reusable metal clamp that squeezes the hose tightly onto the fitting.
• Slide the clamp back onto the hose.
• Twist the hose gently by hand to break it loose.
• Use a flat-blade screwdriver carefully at the hose edge only if it is stuck.
• Pull the hose off the thermostat housing and aim any coolant into the drain pan 2-gallon minimum.

Step 7: Remove the Thermostat Housing

• Use a 10mm socket, 3/8-inch drive ratchet, and 3/8-inch drive 6-inch extension to remove the thermostat housing bolts.
• Remove the housing from the engine.
• Note the direction of the old thermostat before removing it.
• Take a phone photo before removal.

Step 8: Remove the Old Thermostat and Seal

• Pull the old thermostat out by hand.
• Remove the old seal or O-ring by hand.
• Use shop towels to clean the mating surfaces.
• Do not scrape aluminum sealing surfaces with metal tools.

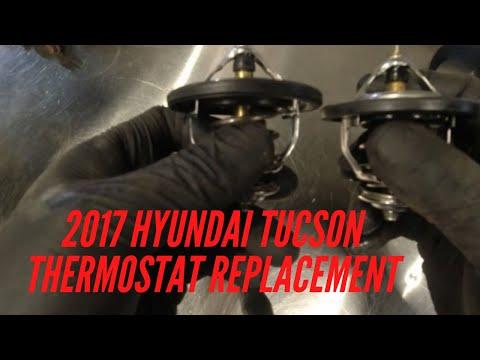

Step 9: Install the New Thermostat

• Install the new engine coolant thermostat in the same direction as the original.
• Install the new thermostat housing seal or O-ring.
• If the thermostat has a small jiggle valve or bleed pin, position it at the top.
• A jiggle valve is a tiny loose pin that helps trapped air escape during filling.

Step 10: Reinstall the Thermostat Housing

• Position the thermostat housing squarely by hand.
• Start all bolts by hand first to avoid cross-threading.
• Use a 10mm socket, 3/8-inch drive ratchet, and 3/8-inch drive 6-inch extension to snug the bolts evenly.
• Use a torque wrench 5-50 Nm to tighten the housing bolts to Torque to 10-12 Nm (7-9 ft-lbs).

Step 11: Reconnect the Lower Radiator Hose

• Push the radiator hose fully onto the thermostat housing neck by hand.
• Use hose clamp pliers to move the spring clamp back to its original position.
• Make sure the clamp sits behind the raised bead on the housing neck.

Step 12: Refill the Cooling System

• Install the coolant funnel kit spill-free at the coolant fill point.
• Fill with Hyundai-compatible phosphate-enhanced ethylene glycol coolant concentrate or premix.
• If using concentrate, mix it 50/50 with distilled water before pouring.
• Fill slowly to reduce trapped air.

Step 13: Bleed Air from the Cooling System

• Start the engine while the coolant funnel kit spill-free is installed.
• Set the cabin heat to full hot and fan to low using the climate controls.
• Let the engine idle until it reaches normal operating temperature.
• Watch for air bubbles coming up through the funnel.
• Add coolant as the level drops.
• Once the upper radiator hose gets hot and the bubbles slow down, the thermostat has opened.

Step 14: Check for Leaks

• Use a flashlight if available to inspect the thermostat housing, lower radiator hose, and radiator drain plug.
• Use shop towels to wipe around the housing and check for fresh coolant.
• If coolant leaks from the housing, shut the engine off and let it cool before rechecking the seal position.

Step 15: Reinstall the Lower Engine Cover

• Use a plastic trim clip remover to reinstall any plastic retainers.
• Use a 10mm socket and 3/8-inch drive ratchet to reinstall splash shield bolts.
• Tighten small splash shield bolts snugly by hand tool only.

Step 16: Lower the Vehicle

• Use the floor jack rated 2-ton minimum to raise your Tucson slightly off the jack stands.
• Remove the jack stands rated 2-ton minimum.
• Lower the vehicle slowly with the floor jack.

---

✅ After Repair

• ✅ Let the engine cool completely, then recheck the coolant level in the reservoir.
• ✅ Top off coolant to the proper mark if needed.
• ✅ Drive your Tucson for 10-15 minutes while watching the temperature gauge.
• ✅ Recheck for leaks after the test drive.
• ✅ Properly recycle old coolant. Do not pour it on the ground or into drains.
• ✅ If the temperature gauge rises above normal, stop driving and let the engine cool before inspecting.

---

💰 DIY vs Shop Cost

Shop Cost: $220-$420 (parts + labor)

DIY Cost: $35-$90 (parts only)

You Save: $185-$330 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.8 hours.

---
