Assumption: This is for the 1.8L turbo gas engine in your Passat with the thermostat housing assembly at the engine front-side coolant outlet.

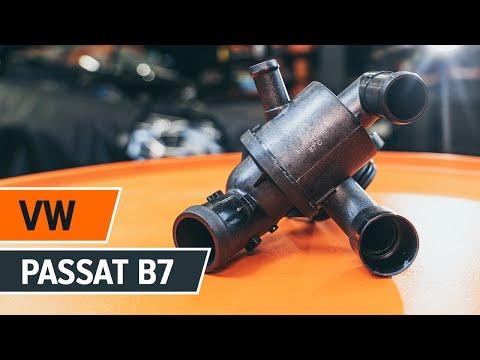

🔧 Thermostat - Replacement

The thermostat controls engine coolant flow so the engine can warm up properly and stay at the right operating temperature. If it sticks open, your Passat may run too cool; if it sticks closed, it can overheat fast.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• Let the engine cool fully before opening the cooling system. Hot coolant can cause severe burns.
• Use jack stands if you raise the front of the vehicle. Never work under a car supported only by a jack.
• Keep coolant away from children and pets. It is toxic.
• Battery disconnect is not required for this repair, but it helps prevent accidental cooling fan operation if you are working near the front of the engine.
• After repair, make sure the cooling system is bled of air. Air pockets can cause overheating.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Metric socket set
• Torx bit set
• Ratchet
• Extensions
• Pliers
• Flat blade screwdriver
• Drain pan
• Funnel
• Catch bottle
• Torque wrench
• Jack stands
• Floor jack
• Safety glasses
• Nitrile gloves
• Shop towels

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Thermostat housing assembly - Qty: 1
• Thermostat seal / O-ring - Qty: 1
• Engine coolant, G12/G13 spec - Qty: 2-3 gallons premix equivalent
• Coolant bleeder cap or sealing cap - Qty: 1

---

📋 Before You Begin

• Park on level ground and let the engine cool completely.
• Set the parking brake and open the hood.
• Have a drain pan ready before opening any coolant line.
• If your car has a belly pan, plan to remove it for access.
• Use only the correct Volkswagen coolant specification. Mixing wrong coolant can cause damage.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Relieve cooling system pressure

• Make sure the engine is completely cold.
• Slowly loosen the coolant reservoir cap to release any leftover pressure.
• Remove the cap once pressure is gone.

Step 2: Drain the coolant

• Raise the front of the car with a floor jack and support it with jack stands.
• Place a drain pan under the radiator area.
• Drain enough coolant from the system so the level drops below the thermostat housing.
• Keep coolant off painted surfaces.

Step 3: Remove access components

• Use a metric socket set and Torx bit set to remove the lower engine cover if equipped.
• If needed for access, remove the air intake ducting with a flat blade screwdriver and pliers for clamps.
• Move any nearby wiring or hoses aside carefully.

Step 4: Disconnect the thermostat housing

• Use pliers to release the hose clamps on the coolant hoses attached to the thermostat housing.
• Pull the hoses off and let remaining coolant drain into the pan.
• Use a metric socket set or Torx bit set to remove the thermostat housing fasteners.
• Remove the housing from the engine.

Step 5: Install the new thermostat housing

• Clean the sealing surface with a shop towel.
• Install the new thermostat seal / O-ring on the replacement assembly.
• Fit the new thermostat housing into place.
• Install the fasteners by hand first, then tighten with a torque wrench.
• Torque to 10 Nm (7 ft-lbs) unless the replacement part instructions specify otherwise.

Step 6: Reconnect hoses and reassemble

• Reinstall the coolant hoses and secure the clamps with pliers.
• Reinstall any intake parts and the lower engine cover using the correct metric socket set or Torx bit set.
• Lower the vehicle carefully if it was raised.

Step 7: Refill and bleed the cooling system

• Use a funnel to refill with the correct Engine coolant, G12/G13 spec.
• Fill the reservoir to the proper mark.
• Start the engine and let it idle with the heater set to hot.
• Watch the coolant level and top off as air leaves the system.
• When the thermostat opens, the upper radiator hose should warm up.
• Never open a hot coolant cap.

---

✅ After Repair

• Check for coolant leaks at the thermostat housing and hose connections.
• Verify the engine reaches normal operating temperature.
• Check the heater output for proper warm air.
• After a full heat cycle and cool-down, recheck coolant level and top off if needed.
• If the check engine light was on before, clear codes and confirm they do not return.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$900 (parts + labor)

DIY Cost: $90-$220 (parts only)

You Save: $360-$680 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
