🔧 1500 - Thermostat Replacement

The thermostat controls coolant flow to keep your 1500’s engine at the correct operating temperature. If it’s stuck open you may get low heat and low temp; if it’s stuck closed you can overheat. This job mainly involves draining some coolant, removing the thermostat housing, and installing a new thermostat with a new seal.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Only work on a fully cool engine; hot coolant can cause severe burns.
• ⚠️ Never remove the radiator/pressure cap while hot; release pressure slowly when cool.
• ⚠️ Keep coolant off belts and electrical connectors; it’s slippery and corrosive.
• ⚠️ Disconnect the negative battery cable before alternator removal.
• ⚠️ Use jack stands if you lift the truck; never rely on a jack alone.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Drain pan (at least 4-gallon)
• Funnel (coolant-safe)
• Shop towels
• Trim clip tool
• Flathead screwdriver
• 8mm socket
• 10mm socket
• 13mm socket
• 15mm socket
• 3/8" ratchet
• 3/8" torque wrench (inch-pound capable)
• Serpentine belt tool (specialty)
• Hose clamp pliers (specialty)
• Gasket scraper (plastic)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Engine thermostat (5.7L) - Qty: 1
• Thermostat seal / O-ring - Qty: 1
• Engine coolant (OAT, purple) 50/50 premix - Qty: 2-3 gallons
• Hose clamp (worm-gear or constant-tension, matching hose size) - Qty: 1 (if original clamp is weak)

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the wheels.
• Let the engine cool completely (overnight is best).
• Set the HVAC to HEAT (full hot) so coolant can flow through the heater core during refill.
• Disconnect the battery negative cable using a 10mm socket once you’re ready to remove the alternator.
• Plan ahead for coolant disposal. Use a sealed container and take it to a recycling center.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Relieve pressure and prep the drain

• Remove the coolant reservoir/pressure cap only when cool.
• Place a drain pan (at least 4-gallon) under the front of the engine/radiator area.

Step 2: Drain enough coolant to get below thermostat level

• If you have access to the radiator drain, open it with a flathead screwdriver and drain 1–2 gallons.
• If the drain is hard to reach, you can instead remove the lower radiator hose at the thermostat housing using hose clamp pliers (specialty) and drain into the pan.
• Draining less saves time and mess.

Step 3: Remove the air intake tube (for working room)

• Loosen the intake clamps using an 8mm socket or flathead screwdriver.
• Disconnect any attached breather hose(s) by hand.
• Lift the intake tube out and set it aside.

Step 4: Remove the serpentine belt

• Use a serpentine belt tool (specialty) or 15mm socket to rotate the belt tensioner and relieve belt tension.
• Slide the belt off one pulley, then remove it from the front of the engine.
• Snap a photo of belt routing first.

Step 5: Remove the alternator

• Confirm the battery negative cable is disconnected using a 10mm socket.
• Unplug the alternator electrical connector by pressing the lock tab by hand.
• Remove the alternator power cable nut using a 13mm socket, then move the cable aside.
• Remove the alternator mounting bolts using a 13mm socket, then lift the alternator out.

Step 6: Remove the lower radiator hose from the thermostat housing

• Move the hose clamp back using hose clamp pliers (specialty).
• Twist the hose to break it free (don’t pry hard on the plastic neck), then pull it off.
• Catch remaining coolant in the drain pan.

Step 7: Remove the thermostat housing

• Remove the thermostat housing bolts using a 10mm socket.
• Pull the housing straight off.
• Remove the thermostat and old seal/O-ring by hand.

Step 8: Clean the sealing surfaces

• Use a plastic gasket scraper and shop towels to clean any residue from the housing and engine mating surface.
• Do not gouge the metal or plastic sealing surface.

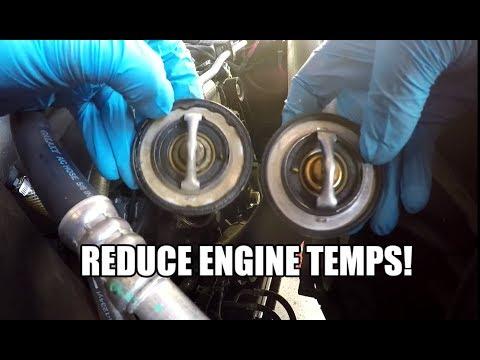

Step 9: Install the new thermostat and seal

• Install the new seal/O-ring onto the new thermostat (or into the housing, depending on design).
• Set the thermostat into place in the same orientation as the old one.
• Reinstall the housing and start all bolts by hand to avoid cross-threading.
• Tighten housing bolts evenly using a 10mm socket.
• Torque to 12 Nm (105 in-lbs) using a 3/8" torque wrench (inch-pound capable).

Step 10: Reinstall hose, alternator, and belt

• Reinstall the lower radiator hose and position the clamp using hose clamp pliers (specialty).
• Reinstall the alternator and bolts using a 13mm socket (tighten securely).
• Reconnect the alternator power cable using a 13mm socket and plug in the connector.
• Reinstall the serpentine belt using a serpentine belt tool (specialty) or 15mm socket.
• Reinstall the intake tube and tighten clamps using an 8mm socket or flathead screwdriver.
• Reconnect the battery negative cable using a 10mm socket.

Step 11: Refill and purge air from the cooling system

• Slowly refill the coolant reservoir using a funnel with Engine coolant (OAT, purple) 50/50 premix.
• Start the engine and let it idle with the heater on high heat.
• Watch the temperature gauge and check for leaks with safety glasses on.
• As the thermostat opens, the coolant level may drop—add coolant as needed.
• Once warm, shut the engine off, let it cool fully, then recheck and top off to the proper mark.

---

✅ After Repair

• Check for leaks around the thermostat housing and lower hose with the engine running.
• Verify the heater blows hot air and the temperature gauge stabilizes normally.
• After the first full heat-soak/cool-down cycle, recheck coolant level and top off if needed.
• Inspect the serpentine belt routing one more time for correct alignment on every pulley.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$650 (parts + labor)

DIY Cost: $50-$150 (parts only)

You Save: $200-$500 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
