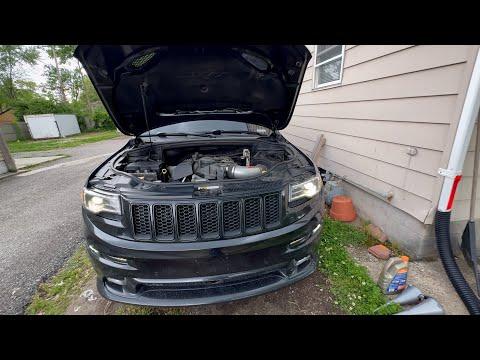

🔧 Grand Cherokee - Thermostat Replacement

The thermostat controls coolant flow to keep your Grand Cherokee at the correct operating temperature. If it sticks open you’ll get slow warm-up/poor heat, and if it sticks closed you can overheat—replacing it restores proper temperature control.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Never open the coolant cap on a hot engine; hot coolant can spray and burn.
• ⚠️ Support the vehicle with jack stands if you raise the front; never rely on a jack alone.
• ⚠️ Coolant is toxic—keep it off skin, away from pets, and dispose of it properly.
• ⚠️ Keep hands/clothes clear of the cooling fan area.
• Battery disconnect is not required for this repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Drain pan (at least 3-gallon)
• Funnel
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 8mm socket
• 10mm socket
• 13mm socket
• 1/4" drive ratchet
• 3/8" drive ratchet
• 3" extension
• 6" extension
• Torque wrench (inch-pound or low-range Nm)
• Hose clamp pliers
• Trim clip tool
• Flat-blade screwdriver
• Shop towels

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Engine thermostat with housing seal - Qty: 1
• HOAT/OAT engine coolant compatible with your Grand Cherokee (50/50 premix) - Qty: 2-3 gallons
• Distilled water - Qty: 1-2 gallons
• Hose clamp (lower radiator hose, if original clamp is weak) - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Let the engine cool fully (at least 1-2 hours).
• Set the HVAC to full heat later during bleeding (helps move coolant through the heater core).
• If you raise the front, lift with a floor jack and support with jack stands at the approved lift points.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Relieve pressure and prep for draining

• Put on safety glasses and nitrile gloves.
• Slowly loosen the coolant reservoir cap by hand only after the engine is fully cool.
• Place a drain pan (at least 3-gallon) under the radiator drain area.

Step 2: Drain coolant to below thermostat level

• If equipped with a lower splash shield, remove the fasteners using a trim clip tool and 8mm socket.
• Drain coolant from the radiator drain (petcock) into the drain pan.
• Tip: Drain slowly to reduce spills.

Step 3: Remove the air intake ducting (for access)

• Loosen the intake clamps using a flat-blade screwdriver.
• Remove any intake/engine cover fasteners using a 10mm socket.
• Lift the intake ducting out and set it aside.

Step 4: Remove the lower radiator hose from the thermostat housing

• Move the hose clamp back using hose clamp pliers.
• Twist the hose gently to break it free, then pull it off.
• Catch any remaining coolant with the drain pan and use shop towels to wipe spills.

Step 5: Remove the thermostat housing

• Locate the thermostat housing at the front of the engine where the lower radiator hose connects.
• Remove the housing bolts using a 10mm socket, ratchet, and extension.
• Pull the housing/thermostat assembly straight off.
• Remove the old seal/O-ring and clean the mating surface using shop towels (no gouging).

Step 6: Install the new thermostat and housing seal

• Install the new seal/O-ring on the new thermostat housing (or thermostat, depending on the part design).
• Position the new thermostat housing in place and hand-start all bolts.
• Tighten evenly using a torque wrench (a torque wrench is a tool that tightens bolts to an exact setting so you don’t crack the housing).
• Torque to 12 Nm (106 in-lbs).

Step 7: Reinstall the lower radiator hose and intake ducting

• Reinstall the lower radiator hose and position the clamp using hose clamp pliers.
• Reinstall the intake ducting and tighten clamps using a flat-blade screwdriver.
• Reinstall any covers/brackets using a 10mm socket.

Step 8: Refill and bleed the cooling system

• Use a funnel to refill the coolant reservoir with the correct coolant mix.
• If your Grand Cherokee has a coolant bleed screw near the thermostat/water outlet, open it with an 8mm socket until coolant flows without bubbles, then close it.
• Start the engine and set HVAC to maximum heat; let it idle while you watch the temperature gauge.
• As the engine warms up, add coolant as needed using the funnel (do not overfill).
• When the radiator hose gets hot and you have steady heat from the vents, shut the engine off and let it cool, then recheck the level and top off.

---

✅ After Repair

• Check carefully for leaks around the thermostat housing and the lower hose connection with the engine running.
• Verify the temperature gauge rises normally and stays stable during a 10-15 minute drive.
• After a full cool-down, recheck coolant level and add if needed.
• If you get a check engine light or overheating, stop driving and recheck bleeding and hose clamp seating.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$650 (parts + labor)

DIY Cost: $60-$180 (parts only)

You Save: $170-$590 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
