🔧 Tucson - Thermostat Replacement

On your Tucson, the thermostat controls coolant flow to keep engine temperature stable. If it sticks open you can get slow warm-up/poor heat; if it sticks closed you can overheat. This job involves draining some coolant, removing the thermostat housing, swapping the thermostat/seal, then refilling and bleeding air out.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Never open the radiator cap on a hot engine; hot coolant can spray and burn.
• ⚠️ Support the SUV with jack stands; never rely on a floor jack alone.
• ⚠️ Coolant is toxic—keep away from kids/pets and dispose properly.
• Disconnecting the battery is recommended because you’ll work near the cooling fan and wiring.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Drain pan (at least 10-quart)
• Funnel
• 10mm socket
• 12mm socket
• 3/8" ratchet
• 3/8" torque wrench (10–80 Nm range)
• 6" extension (3/8" drive)
• Hose clamp pliers
• Trim clip removal tool
• Flat-blade screwdriver
• Shop rags
• Plastic gasket scraper

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Engine thermostat - Qty: 1
• Thermostat seal / O-ring - Qty: 1
• Engine coolant (Hyundai/Kia approved P-OAT, 50/50 premix) - Qty: 2-3 gallons
• Hose clamp(s) (optional, if originals are weak) - Qty: 1-2

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Let the engine cool fully (ideally 2+ hours) so the system is not pressurized.
• Disconnect the negative battery terminal using a 10mm socket.
• Plan to capture coolant in a drain pan; do not dump it on the ground.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise the front and set up to drain coolant

• Lift the front with a floor jack (rated 3-ton minimum) and support with jack stands (rated 3-ton minimum).
• Place a drain pan (at least 10-quart) under the radiator drain area.

Step 2: Drain enough coolant to get below thermostat level

• Remove any lower splash shield clips as needed using a trim clip removal tool.
• Slowly loosen the radiator cap to the first stop to release any leftover pressure (engine cold).
• Open the radiator drain (petcock) and drain coolant into the pan.
• Drain 1–2 gallons; you don’t need it bone-dry.

Step 3: Remove the intake ducting for access

• Loosen the intake hose clamps using a flat-blade screwdriver.
• Remove the air duct/resonator pieces as needed (typically 10mm socket for bolts).
• Set parts aside so you can see the coolant hose/housing area clearly.

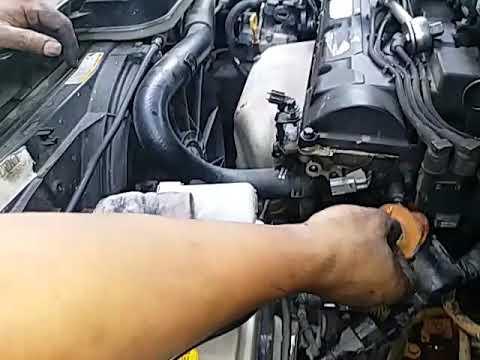

Step 4: Locate the thermostat housing

• Follow the lower radiator hose to the engine—where it meets the engine is the thermostat housing/water inlet area.
• Clean dirt around the housing using shop rags so debris doesn’t fall inside.

Step 5: Remove the lower radiator hose from the housing

• Use hose clamp pliers to compress the spring clamp and slide it back on the hose.
• Twist the hose gently to break it free, then pull it off.
• Have shop rags ready—more coolant will spill.

Step 6: Remove the thermostat housing

• Remove the housing bolts using a 10mm socket or 12mm socket (bolt head size can vary by housing).
• Use a 6" extension (3/8" drive) if clearance is tight.
• Separate the housing carefully; do not pry aggressively on aluminum surfaces.

Step 7: Replace the thermostat and seal

• Note how the old thermostat sits (orientation matters), then remove it.
• Remove the old seal/O-ring.
• Clean the mating surfaces with a plastic gasket scraper and shop rags.
• Install the new thermostat and the new seal/O-ring.
• Do not use RTV unless the new part instructions require it.

Step 8: Reinstall the housing and torque bolts

• Reinstall the housing bolts by hand first to avoid cross-threading.
• Tighten evenly with a 3/8" ratchet, then torque with a 3/8" torque wrench (10–80 Nm range).
• Torque to 12 Nm (9 ft-lbs) for thermostat housing bolts.

Step 9: Reinstall the hose and intake parts

• Push the hose fully onto the housing.
• Reposition the clamp using hose clamp pliers in the same spot it was originally.
• Reinstall the intake ducting and tighten clamps using a flat-blade screwdriver.

Step 10: Refill coolant and bleed air

• Close the radiator drain.
• Fill coolant slowly using a funnel at the radiator fill neck (and top off the reservoir to the “FULL” line).
• Reconnect the battery negative terminal using a 10mm socket.
• Start the engine and set the heater to HOT with the fan on low.
• Let it idle until the temperature gauge reaches normal and you feel steady heat from the vents.
• Shut it off, let it cool, then recheck and top off coolant in the radiator and reservoir.

---

✅ After Repair

• Check for leaks around the thermostat housing and hose connection with the engine running.
• Verify the temperature gauge stays normal on a 10–15 minute test drive.
• After the engine fully cools, recheck coolant level again and top off if needed.
• If you get overheating, no heat, or gurgling sounds, there’s likely trapped air—repeat the bleed/top-off.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$650 (parts + labor)

DIY Cost: $60-$180 (parts only)

You Save: $290-$470 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
