🔧 Fusion - Thermostat Replacement

The thermostat controls coolant flow so your engine warms up quickly and then stays at the correct temperature. On your Fusion, replacing it means safely draining some coolant, removing the thermostat housing, installing the new thermostat/seal, then refilling and bleeding the cooling system.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

Assumption: 2.0L hybrid thermostat is in the front-side housing.

---

⚠️ Safety & Precautions

• ⚠️ Work only on a completely cool engine to avoid burns from hot coolant and steam.
• ⚠️ Hybrid safety: keep tools away from orange high-voltage cables and connectors; do not unplug any orange connectors.
• ⚠️ Never open the coolant reservoir cap when hot; open slowly only when cool.
• ⚠️ Support the car with jack stands; never rely on a floor jack alone.
• ⚠️ Coolant is toxic; keep it away from kids/pets and dispose of it properly.
• ⚠️ Battery disconnect is not usually required for this job; if you must unplug sensors, turn the car OFF and keep the key/fob away from the vehicle.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• Drain pan (at least 2-gallon)
• Funnel with long neck
• 8mm socket
• 10mm socket
• 1/4" drive ratchet
• 3/8" drive ratchet
• 6" extension (1/4" drive)
• Torque wrench (in-lb capable)
• Hose clamp pliers
• Trim clip removal tool
• Flat-blade screwdriver
• Shop rags
• Plastic razor scraper
• Vacuum coolant fill tool (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Thermostat - Qty: 1
• Thermostat housing seal / O-ring - Qty: 1
• Engine coolant (Motorcraft Orange, prediluted 50/50) - Qty: 1-2 gallons
• Distilled water - Qty: 1 gallon (if using concentrate)
• Replacement hose clamps - Qty: 1-2 (as needed)

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear tires.
• Let the engine cool fully (at least 2-3 hours).
• Have a plan for coolant cleanup and disposal; keep your drain pan ready.
• If using a vacuum coolant fill tool (it pulls a vacuum so the system refills without air pockets), set it up per its instructions.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise the front of the car and remove the lower splash shield

• Use a floor jack to lift the front and set the car on jack stands at the proper lift points.
• Use a trim clip removal tool and 8mm socket to remove the fasteners for the lower engine splash shield, then remove the shield.

Step 2: Relieve pressure (only when cool) and drain coolant

• Place a drain pan (at least 2-gallon) under the radiator area.
• Slowly loosen the coolant reservoir cap by hand to relieve any leftover pressure, then remove it.
• Open the radiator drain (petcock) using a flat-blade screwdriver, if equipped, and drain enough coolant so the level drops below the thermostat housing.
• If there is no petcock access, loosen the lower radiator hose clamp using hose clamp pliers and carefully crack the hose loose to drain into the pan.

Step 3: Gain access to the thermostat housing

• From the top of the engine bay, remove any intake ducting that blocks access using a 8mm socket and flat-blade screwdriver (for worm clamps).
• Use shop rags to catch drips and keep coolant off belts and connectors.

Step 4: Disconnect hoses from the thermostat housing

• Use hose clamp pliers to compress the spring clamp(s), slide them back, then twist and pull the hose(s) off the housing.
• If a hose is stuck, gently rotate it to break the seal—do not pry hard on plastic fittings.

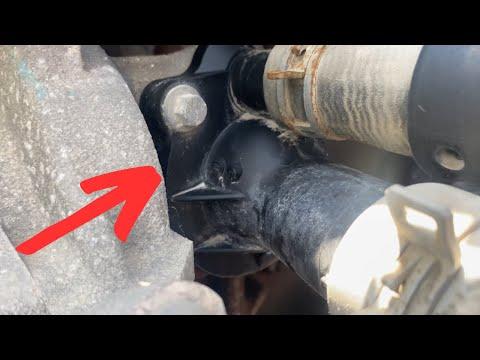

Step 5: Remove the thermostat housing

• Remove the thermostat housing bolts using a 10mm socket, 1/4" drive ratchet, and 6" extension.
• Pull the housing straight off. Keep the drain pan under the area because coolant will spill.
• Remove the old thermostat and seal/O-ring.

Step 6: Clean the mating surfaces and install the new thermostat

• Use a plastic razor scraper and shop rags to clean the mating surfaces (no gouges).
• Install the new seal/O-ring on the thermostat/housing as designed (do not reuse the old seal).
• Install the thermostat in the correct orientation (spring end typically faces the engine).
• Do not use RTV unless specified.

Step 7: Reinstall the thermostat housing and torque bolts

• Reinstall the housing and start all bolts by hand to avoid cross-threading.
• Tighten evenly using a 10mm socket.
• Final tighten with a torque wrench (in-lb capable): Torque to 10 Nm (89 in-lb).

Step 8: Reconnect hoses and reinstall removed components

• Push hoses fully onto their fittings, then reposition clamps using hose clamp pliers.
• Reinstall intake ducting using an 8mm socket and flat-blade screwdriver.
• Reinstall the lower splash shield using the 8mm socket and trim clip removal tool.

Step 9: Refill and bleed the cooling system

• Lower the car off the jack stands using the floor jack.
• Refill the coolant reservoir using a funnel with long neck with the correct 50/50 coolant mix.
• Start the car and set cabin heat to MAX HOT (fan medium). Let it run until you get steady heat.
• Watch the coolant level and add as needed. Do not let it run low.
• When the engine has warmed and the thermostat opens, you may see the level drop—top off as needed.
• Shut the car OFF, let it cool fully, then recheck and top off to the correct mark.

Step 10: Check for leaks

• With the engine running, inspect the thermostat housing and hose connections using safety glasses and a flashlight (use your phone light if needed).
• If you see seepage, shut down and re-seat the hose/clamp or re-torque the housing bolts to spec.

---

✅ After Repair

• Let the engine cool completely, then recheck coolant level again the next morning and top off if needed.
• Verify the temperature gauge behaves normally and the cabin heater works consistently.
• Watch for warning lights and check for coolant smell or wet spots after a short drive.
• Dispose of used coolant properly (most parts stores accept it).

---

💰 DIY vs Shop Cost

Shop Cost: $450-$850 (parts + labor)

DIY Cost: $60-$200 (parts only)

You Save: $250-$750 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
