🔧 Escape - Thermostat Replacement

Replacing the thermostat on your Escape means draining some coolant, removing the thermostat housing at the engine, installing the new thermostat and seal, then refilling and bleeding the cooling system. A stuck thermostat can cause overheating, slow warm-up, poor heater performance, or erratic temperature readings.

Difficulty Level: Intermediate | Estimated Time: 1.5-2.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Only work on a completely cold engine. Hot coolant is under pressure and can cause serious burns.
• 🧤 Wear safety glasses and gloves because coolant is slippery, toxic, and harmful to skin and eyes.
• 🐾 Keep drained coolant away from children and pets. It tastes sweet but is poisonous.
• 🔋 Battery disconnect is not normally required for this repair, but keep tools away from the battery terminals.
• 🌡️ Do not open the coolant reservoir cap while the engine is hot.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 8mm socket
• 10mm socket
• Ratchet wrench 3/8-inch drive
• Socket extension 6-inch 3/8-inch drive
• Flat-blade screwdriver 1/4-inch tip
• Hose clamp pliers
• Drain pan 2-gallon minimum
• Plastic trim clip removal tool
• Torque wrench 3/8-inch drive inch-pound
• Funnel spill-free coolant filling kit (specialty)
• Shop towels
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Engine coolant thermostat - Qty: 1
• Thermostat seal/O-ring - Qty: 1
• Motorcraft Orange-compatible engine coolant concentrate or premix - Qty: 1 gallon
• Distilled water - Qty: 1 gallon if using concentrate

---

📋 Before You Begin

• 🅿️ Park your Escape on level ground and set the parking brake.
• ❄️ Let the engine cool for several hours before opening the cooling system.
• 🧴 A thermostat is a temperature-controlled valve that helps the engine warm up and stay at the right temperature.
• 🧰 A torque wrench tightens bolts to a measured amount so small aluminum parts are not cracked or stripped.
• 🪣 Place a drain pan under the front passenger side of the engine bay area before loosening hoses.
• ♻️ Plan to recycle old coolant properly. Do not pour it on the ground or into a drain.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the Engine Appearance Cover if Equipped

• Use your hands to lift the engine cover straight up from its rubber mounting grommets if your Escape has one.
• Set it aside where it will not be stepped on.
• Pull evenly, not sideways.

Step 2: Remove the Lower Splash Shield Access Area

• Use a plastic trim clip removal tool to remove any plastic retainers blocking access underneath the radiator drain area.
• Use an 8mm socket and ratchet wrench to remove any small screws holding the lower splash shield if needed.
• Place the drain pan 2-gallon minimum under the radiator drain area.

Step 3: Relieve Cooling System Pressure

• Make sure the engine is cold.
• Use your hand to slowly loosen the coolant reservoir cap.
• If you hear pressure escaping, stop and wait until it finishes before fully removing the cap.

Step 4: Drain Some Coolant

• Use a flat-blade screwdriver 1/4-inch tip to carefully open the radiator drain valve if accessible.
• Drain about 1 gallon of coolant into the drain pan 2-gallon minimum.
• If the drain valve is hard to access, use hose clamp pliers to loosen the lower radiator hose clamp slightly and drain coolant carefully from the hose connection.
• Close the drain valve by hand or with the flat-blade screwdriver 1/4-inch tip once enough coolant has drained.
• Do not overtighten plastic drain valves.

Step 5: Locate the Thermostat Housing

• Follow the large upper radiator hose from the radiator to the engine using your hand and eyes.
• The hose connects to the thermostat housing on the engine side.
• Use shop towels around the area to catch spilled coolant.

Step 6: Remove the Radiator Hose from the Thermostat Housing

• Use hose clamp pliers to squeeze the spring clamp on the radiator hose.
• Slide the clamp back onto the hose, away from the thermostat housing neck.
• Use your hand to twist the hose gently to break it loose, then pull it off the housing.
• If stuck, use a flat-blade screwdriver 1/4-inch tip carefully between the hose and housing edge, but do not gouge the plastic or aluminum surface.
• Twist first, then pull.

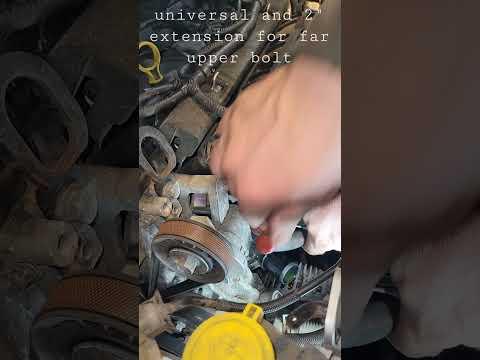

Step 7: Remove the Thermostat Housing Bolts

• Use a 10mm socket, 6-inch extension, and ratchet wrench to remove the thermostat housing bolts.
• Keep light hand pressure on the housing while removing the last bolt because a small amount of coolant may spill.
• Remove the housing from the engine.

Step 8: Remove the Old Thermostat and Seal

• Use your hand to pull the old thermostat out of the engine opening.
• Use your fingers or a plastic trim clip removal tool to remove the old seal/O-ring.
• Use shop towels to clean the sealing surface.
• Do not use a metal scraper on aluminum sealing surfaces.

Step 9: Install the New Thermostat

• Install the new thermostat in the same direction as the old one.
• Fit the new thermostat seal/O-ring fully into place by hand.
• Make sure the thermostat sits flat and does not pinch the seal.
• Match the old thermostat orientation.

Step 10: Reinstall the Thermostat Housing

• Position the thermostat housing squarely against the engine.
• Start all bolts by hand first to avoid cross-threading.
• Use a 10mm socket, 6-inch extension, and ratchet wrench to snug the bolts evenly.
• Use a 3/8-inch drive inch-pound torque wrench with a 10mm socket to tighten the thermostat housing bolts to Torque to 10 Nm (89 in-lbs).

Step 11: Reconnect the Radiator Hose

• Push the radiator hose fully onto the thermostat housing neck by hand.
• Use hose clamp pliers to move the spring clamp back to its original position over the hose connection.
• Check that the clamp is seated evenly and not sitting on the raised lip of the housing.

Step 12: Refill the Cooling System

• Install a spill-free coolant filling kit funnel onto the coolant reservoir.
• Pour Motorcraft Orange-compatible coolant into the reservoir using the funnel.
• If using concentrate, mix it 50/50 with distilled water before adding it.
• Fill until the coolant level reaches the reservoir cold-fill mark.

Step 13: Bleed Air from the Cooling System

• Leave the spill-free coolant filling kit attached.
• Start the engine and let it idle.
• Set the heater to full hot and the fan to low using the climate controls.
• Watch the coolant level in the funnel and add coolant as the level drops.
• Let the engine run until the upper radiator hose becomes warm, which shows the thermostat has opened.
• Squeeze the upper radiator hose gently by hand several times to help move trapped air.
• Do not put your hands near belts, pulleys, or the cooling fan.

Step 14: Check for Leaks

• Use a flashlight if needed and inspect the thermostat housing, hose connection, and drain area.
• Use shop towels to wipe any spilled coolant, then check again for fresh wet spots.
• If coolant leaks at the hose, use hose clamp pliers to reposition the clamp.
• If coolant leaks at the housing, shut the engine off and let it cool before rechecking the seal and bolt torque.

Step 15: Reinstall Removed Covers

• Use an 8mm socket and ratchet wrench to reinstall any lower splash shield screws.
• Use your hand to push plastic retainers back into place.
• Use your hands to press the engine cover back onto its rubber grommets if equipped.

---

✅ After Repair

• ✅ After the engine cools completely, check the coolant reservoir level and top off to the cold-fill mark if needed.
• 🌡️ Road test your Escape for 10-15 minutes while watching the temperature gauge.
• 🔥 Confirm the cabin heater blows warm air once the engine reaches operating temperature.
• 🔍 Recheck for leaks around the thermostat housing and radiator hose after the road test.
• ♻️ Take old coolant to a recycling center or auto parts store that accepts used coolant.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor)

DIY Cost: $35-$90 (parts only)

You Save: $160-$415 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
