🔧 Civic - Thermostat Replacement

You’ll be draining some coolant, removing the thermostat housing, swapping the thermostat and gasket, then refilling and bleeding air from the cooling system. A stuck thermostat can cause overheating (stuck closed) or slow warm-up/poor heat (stuck open).

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• 🛑 Never open the radiator cap on a hot engine; let the engine cool fully.
• 🧤 Coolant is toxic—wear gloves and keep it away from kids/pets; clean spills immediately.
• 🧱 Support the car on jack stands before going underneath; never rely on a jack alone.
• 🔥 Keep hands/tools away from the radiator fan area; the fan can turn on unexpectedly.
• 🔋 Battery disconnect is not required for this job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• Drain pan (at least 2-gallon)
• Ratchet (3/8")
• 10mm socket
• 12mm socket
• 3/8" torque wrench (5–30 ft-lbs range)
• Hose clamp pliers
• Pick tool
• Plastic trim clip tool
• Funnel
• Spill-free coolant funnel kit (specialty)
• Shop towels

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Engine thermostat - Qty: 1
• Thermostat gasket / O-ring - Qty: 1
• Engine coolant (Honda Type 2 / Asian blue premix equivalent) - Qty: 1-2 gallons
• Lower radiator hose clamp - Qty: 1 (optional if original is weak)

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear wheels.
• Let the engine cool completely (radiator hoses should feel cool, not warm).
• Set the cabin temperature to HOT (this helps coolant flow through the heater circuit during bleeding).
• Raise the front of the car with a floor jack and support it on jack stands.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the lower splash shield (if equipped)

• Use a plastic trim clip tool to remove the clips, then use a 10mm socket for any bolts holding the splash shield.
• Set the clips/bolts aside so you don’t lose them.

Step 2: Drain enough coolant

• Place a drain pan (at least 2-gallon) under the radiator drain area.
• Slowly loosen the radiator cap to the first stop (use nitrile gloves and safety glasses), then remove it once any pressure is gone.
• Drain coolant from the radiator drain point into the pan. You only need to drain below thermostat level.
• Use shop towels to wipe spills.

Step 3: Locate the thermostat housing

• From underneath, find the lower radiator hose and follow it to the engine—where it attaches is the thermostat housing.
• Use a flashlight if needed (your safety glasses stay on here).

Step 4: Remove the lower radiator hose from the housing

• Use hose clamp pliers to compress the spring clamp and slide it back on the hose.
• Twist the hose gently to break it free, then pull it off. If it’s stuck, use a pick tool carefully to lift the hose edge—don’t gouge the plastic/metal neck.
• Expect some coolant to spill—keep the drain pan positioned under the housing.

Step 5: Remove the thermostat housing/cover

• Use a 10mm socket and ratchet (3/8") to remove the thermostat housing bolts.
• Pull the housing/cover off carefully; more coolant may drain out.
• Note the thermostat’s orientation before removing it.

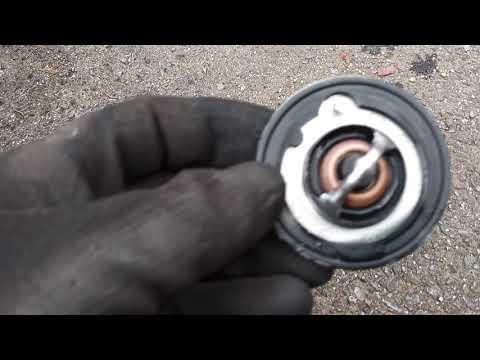

Step 6: Replace the thermostat and gasket

• Remove the old thermostat and old gasket/O-ring by hand; use a pick tool gently if needed.
• Clean the mating surfaces with shop towels (no deep scraping).
• Install the new gasket/O-ring onto the new thermostat (or into the housing, depending on the design).
• Install the new thermostat in the same direction as the old one. If it has a small “jiggle valve/air bleed pin,” position it at the top. Top position helps air escape.

Step 7: Reinstall the thermostat housing and torque bolts

• Reinstall the housing/cover and hand-thread the bolts first to avoid cross-threading.
• Use a 10mm socket to snug them evenly.
• Use a 3/8" torque wrench (5–30 ft-lbs range) to finish tightening: Torque to 12 N·m (9 ft-lbs).

Step 8: Reinstall the hose and clamp

• Push the hose fully onto the thermostat housing neck.
• Use hose clamp pliers to move the clamp back into its original position over the neck.
• Wipe the area with shop towels so leaks are easier to spot later.

Step 9: Refill coolant

• Install a spill-free coolant funnel kit (specialty) at the radiator fill neck (this is a funnel that seals so you can run the engine without spilling).
• Slowly add Honda Type 2 / Asian blue premix equivalent until the funnel level is stable.

Step 10: Bleed air from the cooling system

• Start the engine and let it idle. Keep the funnel installed and coolant level above the radiator neck.
• Turn the cabin heat to HOT and set the fan to a low/medium speed.
• As the engine warms up, watch for air bubbles in the funnel and add coolant as needed.
• Continue until the upper radiator hose gets hot and you see fewer/no bubbles. Then allow the radiator fan to cycle on and off at least once.
• If your thermostat housing has an air bleeder screw (a small screw used to release trapped air), crack it open slightly with a 10mm socket until a steady stream of coolant comes out, then close it.

Step 11: Finish up and reinstall the splash shield

• Shut the engine off and let it cool down.
• Remove the funnel and install the radiator cap.
• Reinstall the splash shield using the plastic trim clip tool and 10mm socket.
• Lower the car from the jack stands using the floor jack.

---

✅ After Repair

• Start the engine and check for leaks around the thermostat housing and lower hose connection.
• Verify the heater blows hot air once warmed up, and confirm the temperature gauge stays normal.
• After your first drive and full cool-down, recheck coolant level and top off as needed.
• Dispose of old coolant properly (many parts stores accept used coolant).

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor)

DIY Cost: $40-$90 (parts only)

You Save: $210-$360 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
