🔧 Thermostat - Replacement

Your thermostat controls coolant flow so the engine can warm up fast and stay at the right temperature. If it sticks open or closed, you can get poor heat, overheating, or a check engine light. On your F-150, the thermostat is housed at the front of the engine in the coolant outlet housing.

Difficulty Level: Intermediate | Estimated Time: 1.5-2.5 hours

---

⚠️ Safety & Precautions

• Work only on a fully cool engine. Hot coolant can cause severe burns.
• Relieve pressure slowly by removing the coolant reservoir cap only when the engine is cool.
• Keep coolant off belts, pulleys, and the serpentine belt area.
• Battery disconnect is not required for this repair.
• Use jack stands if you raise the truck. Never rely on the jack alone.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Ratchet
• 8mm socket
• 10mm socket
• Extension bar
• Pick tool
• Drain pan
• Funnel
• Coolant tester
• Shop towels
• Safety glasses
• Nitrile gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Thermostat - Qty: 1
• Thermostat housing gasket or seal - Qty: 1
• Engine coolant - Qty: 1-2 gallons
• Distilled water - Qty: 1-2 gallons

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Let the engine cool completely.
• Place a drain pan under the front of the truck before opening the cooling system.
• Use the correct Ford-approved coolant mix. Do not mix coolant types.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Drain the coolant

• Remove the coolant reservoir cap slowly when the engine is cold.
• Use a drain pan under the radiator area and drain enough coolant so the level drops below the thermostat housing.
• Catch and reuse only if clean.

Step 2: Remove intake ducting if needed

• Use the 8mm socket and ratchet to loosen the air intake duct clamps if they block access.
• Move the duct aside for workspace.

Step 3: Remove the thermostat housing

• Locate the coolant outlet housing at the front of the engine.
• Use the 10mm socket and ratchet with extension bar to remove the housing bolts.
• Pull the housing straight off and set it aside.
• Expect a small coolant spill.

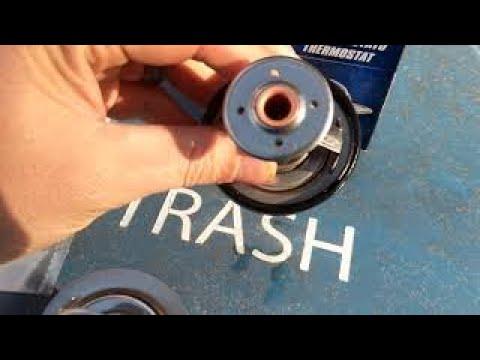

Step 4: Remove the old thermostat

• Lift the thermostat out of the housing by hand or use a pick tool if it is stuck.
• Note the orientation of the thermostat before removal so the new one goes in the same way.

Step 5: Clean the sealing surfaces

• Use shop towels to clean the housing and engine mating surfaces.
• Make sure old gasket material or debris is removed before reassembly.

Step 6: Install the new thermostat

• Place the new thermostat into position with the correct orientation.
• Install the new thermostat gasket or seal.
• Set the housing back in place.

Step 7: Reinstall the housing bolts

• Use the 10mm socket and ratchet to tighten the bolts evenly.
• Torque to 10 Nm (89 in-lbs).
• Do not overtighten. The housing can crack.

Step 8: Reinstall intake parts

• If removed, reinstall the intake duct and tighten the clamps with the 8mm socket.
• Make sure all hoses and clamps are fully seated.

Step 9: Refill the cooling system

• Use a funnel to refill with the correct coolant mix.
• Fill the reservoir to the proper mark.
• Leave the cap off for the initial warm-up if needed to help purge air.

Step 10: Bleed air and check for leaks

• Start the engine and let it idle.
• Watch the coolant level and top off as air escapes.
• Turn the heater to full hot and high fan speed.
• Inspect the thermostat housing and hose connections for leaks.
• Recheck after the first heat cycle.

---

✅ After Repair

• Drive the truck and confirm the temperature gauge reaches normal and stays steady.
• Check for coolant leaks again after the test drive.
• Recheck the coolant level once the engine cools fully and top off if needed.
• If the check engine light was on, clear codes and confirm they do not return.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor)

DIY Cost: $40-$120 (parts only)

You Save: $210-$330 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
