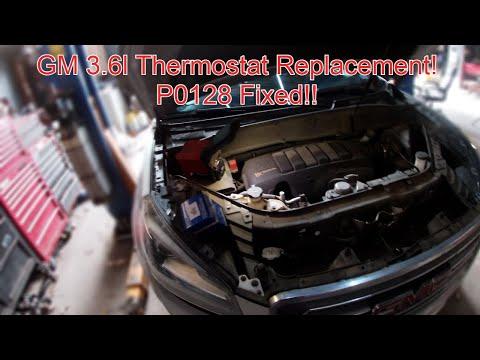

🔧 Acadia - Thermostat Replacement

The thermostat controls coolant flow to keep your engine at the correct temperature. If it’s stuck open you’ll often get low temp/poor heat; if it’s stuck closed you can overheat quickly. This job is mostly about careful disassembly, catching coolant, and bleeding air out afterward.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

Assumption: Your Acadia’s 3.6L uses a thermostat mounted in the front coolant outlet/thermostat housing near the throttle body.

---

⚠️ Safety & Precautions

• ⚠️ Never open the coolant reservoir when hot; let the engine cool fully.
• ⚠️ Coolant is toxic—use gloves, catch it in a drain pan, and clean spills.
• ⚠️ Support the vehicle with jack stands if you raise it; never rely on a floor jack alone.
• ⚠️ Disconnect the negative battery cable before unplugging sensors near the throttle body.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Drain pan (at least 2-gallon)
• Funnel
• Shop towels
• Trim clip tool
• Flathead screwdriver
• 8mm socket
• 10mm socket
• 3/8" ratchet
• 3" extension
• Torque wrench (in-lb or low-range ft-lb)
• Hose clamp pliers
• Plastic gasket scraper

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Thermostat assembly (thermostat housing with seal) - Qty: 1
• Throttle body gasket - Qty: 1
• Dex-Cool coolant (50/50 premix) - Qty: 2-3 gallons
• Replacement hose clamp(s) - Qty: 1-2

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear wheels.
• Let the engine cool completely (upper radiator hose should feel cool).
• Remove the radiator cap only when cool (your Acadia uses a pressurized surge tank, meaning the coolant reservoir is part of the pressure system).
• Disconnect the negative battery cable using a 10mm socket.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise the front (if needed) and set up for draining

• Use a floor jack (rated 3-ton minimum) to lift the front jack point, then set the vehicle on jack stands (rated 3-ton minimum).
• Place a drain pan (at least 2-gallon) under the radiator drain area.

Step 2: Relieve pressure and drain some coolant

• Slowly open the coolant reservoir cap once the engine is cool.
• Drain coolant until the level is below the thermostat housing area (usually 1–2 gallons).
• Tip: Save clean coolant in a sealed container.

Step 3: Remove the engine cover and air intake duct

• Remove the engine cover (it either pulls up or uses fasteners) using a trim clip tool or 10mm socket as equipped.
• Loosen the intake duct clamps with an 8mm socket or flathead screwdriver.
• Disconnect any small breather hose(s) using hose clamp pliers, then lift the intake duct out.

Step 4: Remove the throttle body (for access)

• Unplug the throttle body electrical connector (press the lock tab; don’t pull on wires).
• Remove the throttle body bolts using a 10mm socket, 3/8" ratchet, and 3" extension.
• Remove the throttle body and discard the old gasket.
• Install will be Torque to 10 Nm (89 in-lbs).
• Tip: Cover the opening with a clean towel.

Step 5: Disconnect hoses from the thermostat housing

• Use hose clamp pliers to slide the clamp(s) back on the hose(s).
• Twist the hose gently to break it free, then pull it off the thermostat housing.
• Catch remaining coolant with the drain pan and shop towels.

Step 6: Remove the thermostat housing

• Remove the thermostat housing bolts using a 10mm socket, 3/8" ratchet, and 3" extension.
• Lift the housing off and remove the thermostat assembly.
• Clean the mating surface with a plastic gasket scraper and shop towels (do not gouge aluminum).

Step 7: Install the new thermostat housing/seal

• Place the new thermostat/housing in position (make sure the seal is seated and not pinched).
• Start all bolts by hand to prevent cross-threading.
• Tighten evenly using a torque wrench (in-lb or low-range ft-lb): Torque to 10 Nm (89 in-lbs).

Step 8: Reinstall hoses, throttle body, and intake duct

• Reinstall hoses and position clamps using hose clamp pliers.
• Install a new throttle body gasket, reinstall the throttle body, and torque bolts with a torque wrench: Torque to 10 Nm (89 in-lbs).
• Reconnect the throttle body connector.
• Reinstall the air intake duct and tighten clamps using an 8mm socket or flathead screwdriver.
• Reinstall the engine cover.

Step 9: Refill coolant and bleed air

• Lower the vehicle if it’s on stands.
• Refill the surge tank using a funnel with Dex-Cool coolant (50/50 premix) to the proper level.
• Reconnect the negative battery cable using a 10mm socket.
• Start the engine and set the heater to full hot; let it idle and watch the temperature gauge.
• As the thermostat opens, the coolant level may drop—top off as needed.
• If your Acadia has a coolant air bleed screw near the outlet, open it with a flathead screwdriver until coolant flows steadily, then close it.
• Tip: Squeeze the upper radiator hose gently to burp air.

---

✅ After Repair

• Check for leaks around the thermostat housing and hose connections with the engine running.
• Verify strong cabin heat and stable operating temperature on a 10–15 minute drive.
• Let the engine cool completely, then recheck the coolant level in the surge tank and top off if needed.
• Scan for codes if the check engine light appears after reconnecting the throttle body.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$750 (parts + labor)

DIY Cost: $60-$180 (parts only)

You Save: $290-$570 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
