🔧 F-150 - Thermostat Replacement

The thermostat controls engine temperature by opening and closing coolant flow. If it sticks open you may run cool (poor heat, low temp), and if it sticks closed you can overheat—replacing it restores proper temperature control.

Difficulty Level: Intermediate | Estimated Time: 1.5-3 hours

---

⚠️ Safety & Precautions

• ⚠️ Never open the coolant reservoir when hot; hot coolant can spray and burn.
• ⚠️ Support the truck safely; never work under a vehicle held only by a jack.
• ⚠️ Keep coolant away from kids/pets; it’s toxic and slippery.
• ⚠️ Let the engine cool fully before starting (ideally overnight).
• 🔋 Battery disconnect is not required for this job, but keep tools clear of the fan and belts.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Drain pan (at least 3 gallons)
• Funnel
• Shop towels
• 8mm socket
• 10mm socket
• 1/4" drive ratchet
• 3" extension (1/4" drive)
• Hose clamp pliers
• Pick tool
• Plastic gasket scraper
• Torque wrench (inch-pound)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Engine thermostat (5.0L) - Qty: 1
• Thermostat seal / O-ring - Qty: 1
• Engine coolant (Motorcraft Orange or equivalent meeting Ford spec) - Qty: 2-3 gallons (premix 50/50)
• Hose clamp (upper radiator hose) - Qty: 1 (optional if original is weak)

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Let the engine cool completely before touching any cooling hoses.
• Set your HVAC to full heat later during bleeding (this helps purge air).
• Assumption: Stock 5.0L cooling system with standard thermostat housing.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift safely (if needed for access)

• Place wheel chocks behind the rear tires.
• Use a floor jack (rated 3-ton minimum) to lift the front, then set it on jack stands (rated 3-ton minimum).

Step 2: Relieve any leftover pressure (engine cold)

• Slowly loosen the coolant reservoir cap by hand once the engine is fully cold.
• If you hear pressure, stop and wait longer until it’s completely cool.

Step 3: Drain coolant to below thermostat level

• Position a drain pan (at least 3 gallons) under the radiator drain area.
• Use hose clamp pliers or your hands (as needed) to move any splash shields/hoses for access.
• Drain enough coolant so the upper radiator hose and thermostat housing won’t spill heavily when opened.
• Tip: Drain slowly to avoid splashing.

Step 4: Remove the air intake duct (if it blocks access)

• Use an 8mm socket with a 1/4" drive ratchet to loosen the intake hose clamps.
• Lift the duct off and set it aside.

Step 5: Remove the upper radiator hose from the thermostat housing

• Use hose clamp pliers to compress the clamp and slide it back on the hose.
• Twist the hose gently to break it free, then pull it off.
• If stuck, carefully work the edge with a pick tool (a small pointed hook used to separate hoses without tearing).

Step 6: Remove the thermostat housing / coolant outlet

• Place shop towels under the housing to catch spills.
• Use a 10mm socket, 1/4" drive ratchet, and 3" extension to remove the thermostat housing bolts.
• Lift the housing off carefully—some coolant will spill.

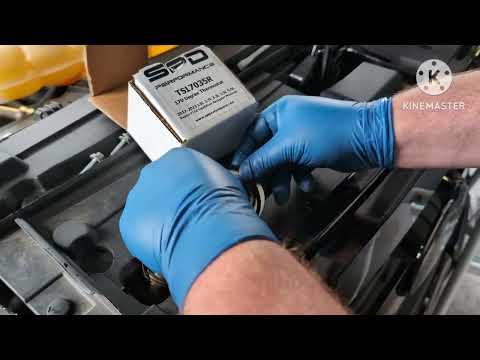

Step 7: Replace the thermostat and seal

• Note the thermostat orientation before removal (spring side goes toward the engine).
• Remove the old thermostat and old seal/O-ring by hand; use a pick tool only if needed.
• Clean the mating surfaces using a plastic gasket scraper and shop towels. Do not gouge the aluminum.
• Install the new thermostat and new seal/O-ring.
• Tip: A crooked seal will leak.

Step 8: Reinstall the housing and torque bolts

• Set the housing in place and start all bolts by hand to avoid cross-threading.
• Tighten evenly using a 10mm socket and 1/4" drive ratchet.
• Final tighten with a torque wrench (inch-pound) (a tool that tightens bolts to an exact setting): Torque to 10 Nm (89 in-lbs).

Step 9: Reinstall the upper radiator hose and intake duct

• Push the hose fully onto the fitting, then position the clamp using hose clamp pliers.
• Reinstall the intake duct and tighten clamps with an 8mm socket.

Step 10: Refill coolant

• Use a funnel to refill the coolant reservoir with Motorcraft Orange or equivalent meeting Ford spec.
• Fill to the correct level mark.
• Keep the cap off for the initial bleed unless coolant starts to surge.

Step 11: Bleed air from the cooling system

• Start the engine and let it idle.
• Set HVAC to max heat and medium fan (this helps circulate coolant through the heater core).
• Watch the coolant level and add as needed using the funnel.
• Once the engine reaches operating temperature and the upper hose gets hot, install the reservoir cap by hand.
• Shut off the engine and let it cool completely, then recheck and top off.

---

✅ After Repair

• With the engine running, inspect the thermostat housing and upper hose connection for leaks.
• Verify the heater blows hot and the temperature gauge stays normal.
• After a full cool-down, recheck coolant level and add if needed.
• Dispose of old coolant properly (never dump on the ground).

---

💰 DIY vs Shop Cost

Shop Cost: $250-$550 (parts + labor)

DIY Cost: $40-$120 (parts only)

You Save: $210-$430 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3 hours.

---
