🔧 550i - Thermostat Replacement

The thermostat controls coolant flow to keep your engine at the correct temperature. When it sticks open or closed, you can get slow warm-up, overheating, or fault codes. Replacing it involves draining coolant, removing access components, swapping the thermostat, then refilling and bleeding the cooling system.

Assumption: This is the common N63TU thermostat/housing service on your 550i; access and fastener types can vary slightly by build date.

Difficulty Level: Advanced | Estimated Time: 3-6 hours

---

⚠️ Safety & Precautions

• ⚠️ Never open the coolant cap on a hot engine; let it cool fully.
• ⚠️ Coolant is toxic; keep it off skin and away from pets.
• ⚠️ The electric fan can run unexpectedly; keep hands/tools clear.
• ⚠️ Support the car with jack stands; never rely on a jack alone.
• Disconnecting the battery is recommended when working near major electrical connectors.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Wheel chocks
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Drain pan (10+ quart)
• Funnel with long neck
• Trim clip removal tool
• Pick tool
• Hose clamp pliers
• 1/4" drive ratchet
• 3/8" drive ratchet
• Socket set 8mm-13mm
• Torx T25 bit
• Torx T30 bit
• E-Torx socket set E8-E12
• Extension set 3" and 6"
• Torque wrench 5-60 Nm
• Cooling system vacuum fill tool (specialty)
• Scan tool capable of BMW coolant bleed function (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Engine thermostat assembly with seal/O-ring - Qty: 1
• Thermostat mounting bolts (recommended if aluminum) - Qty: 1 set
• BMW-compatible coolant concentrate (phosphate/nitrite-free) - Qty: 1 gallon
• Distilled water - Qty: 1 gallon
• Hose O-rings/clips (as needed) - Qty: 1 set
• Intake/throttle body gaskets (only if removed) - Qty: 1 set
• Shop towels/absorbent pads - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and let the engine cool completely.
• Use wheel chocks at the rear wheels.
• Raise the front with a floor jack and support with jack stands at proper lift points.
• Place a drain pan under the front of the engine/radiator area.
• Recommended: disconnect the negative battery terminal using a 10mm socket.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the lower splash shield (undertray)

• Use a Torx T25 bit and 8mm socket to remove the fasteners.
• Use a trim clip removal tool for plastic clips so they don’t break.

Step 2: Drain the coolant

• Slowly open the coolant expansion tank cap by hand to release any leftover pressure.
• Use the appropriate socket set 8mm-13mm or hand-turn drain (varies) to open the radiator drain and/or lower hose drain point.
• Use hose clamp pliers to release spring clamps if you’re draining from a hose.
• Save coolant only if it’s clean and new.

Step 3: Remove engine covers and intake ducting for access

• Pull off the top engine cover(s) by hand (they’re usually grommet-mounted).
• Use a socket set 8mm-13mm and Torx T30 bit to loosen intake clamps and remove intake tubes/ducts that block access.
• Unplug any sensors by pressing the locking tab, then pulling straight off (no yanking on wires).

Step 4: Identify the thermostat and disconnect connectors/hoses

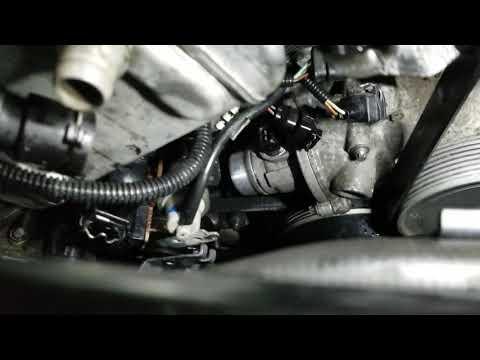

• The thermostat is on the front of the engine and has an electrical connector (map-controlled thermostat).
• Disconnect the thermostat electrical connector by releasing the lock tab; use a pick tool gently if needed.
• Place shop towels under the area. Use hose clamp pliers to release hose clamps and remove coolant hoses from the thermostat.
• If a hose is stuck, twist it gently first—don’t pry hard on plastic fittings.

Step 5: Remove the thermostat assembly

• Use an E-Torx socket (commonly E10/E12) with a 3/8" drive ratchet and extensions to remove the thermostat mounting bolts.
• Remove the thermostat and seal/O-ring.
• Clean the mating surface with a shop towel. Do not gouge the aluminum surface.

Step 6: Install the new thermostat

• Lightly wet the new O-ring with fresh coolant so it seats without tearing.
• Install the thermostat in the same orientation as removed.
• Start all bolts by hand to avoid cross-threading.
• Tighten evenly using an E-Torx socket and finish with a torque wrench 5-60 Nm.
• Torque to 10 Nm (7 ft-lbs) unless your included hardware instructions specify otherwise.

Step 7: Reconnect hoses and electrical connector

• Reinstall coolant hoses fully seated, then reinstall clamps using hose clamp pliers.
• Reconnect the thermostat electrical connector until it clicks.
• Reinstall any brackets/lines removed using the same socket set 8mm-13mm and Torx bits.

Step 8: Reinstall intake ducting and undertray

• Reinstall intake tubes and clamps using a socket set 8mm-13mm and Torx T30 bit.
• Reinstall engine cover(s) by pressing them into the grommets.
• Reinstall the undertray using a Torx T25 bit and 8mm socket.

Step 9: Refill and bleed the cooling system

• Mix coolant 50/50 coolant concentrate and distilled water unless your coolant is pre-mixed.
• Best method: use a cooling system vacuum fill tool (specialty) to pull vacuum and refill without air pockets.
• If using a scan tool: run the Scan tool capable of BMW coolant bleed function (specialty) after filling to circulate coolant and purge air.
• Top off coolant as the level drops during bleeding.
• Air pockets can cause overheating fast.

Step 10: Reconnect battery and check for leaks

• If disconnected, reconnect the battery negative terminal using a 10mm socket.
• Start the engine and let it idle while you inspect the thermostat area with a flashlight (no coolant dripping).
• Bring the engine up to operating temperature and verify the heater blows hot.

---

✅ After Repair

• Check the coolant level again after the first full heat cycle (warm up, then cool down completely).
• Inspect for leaks for the next 2-3 drives, especially around hose connections.
• If you had a check-engine light or coolant thermostat code, clear codes with a scan tool and confirm it does not return.
• If the temperature rises quickly or you lose cabin heat, shut it off and re-bleed (sign of trapped air).

---

💰 DIY vs Shop Cost

Shop Cost: $900-$1,600 (parts + labor)

DIY Cost: $180-$450 (parts only)

You Save: $720-$1,150 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-6 hours.

---
