🔧 Prius - Thermostat Replacement

The thermostat controls engine temperature by opening and closing coolant flow. If it sticks open you may get low heat and poor fuel economy; if it sticks closed the engine can overheat. You’ll drain some engine coolant, swap the thermostat and seal, then refill and bleed air from the system.

Assumption: This is the engine coolant thermostat (not the inverter cooling system).

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a cold engine only; hot coolant can cause severe burns.
• ⚠️ Keep the key fob at least 15 ft away so the car can’t “wake up” unexpectedly.
• ⚠️ Disconnect the 12V negative cable to prevent the electric fans/pumps from running while your hands are near them.
• ⚠️ Use jack stands; never rely on a floor jack alone.
• ⚠️ Use Toyota pink coolant only; mixing coolants can cause sludge and leaks.
• ⚠️ Do not drain or open the inverter coolant system for this job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• Drain pan (at least 2-gallon)
• Spill-free funnel kit
• Shop towels
• Trim clip removal tool
• Flat-blade screwdriver
• Ratchet (3/8" drive)
• Socket set: 10mm, 12mm
• Extension set (3" and 6")
• Torque wrench (3/8" drive, 5–30 Nm range)
• Hose clamp pliers
• Pick tool
• Catch bottle (1-quart)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Engine thermostat - Qty: 1
• Thermostat seal / O-ring (comes with many thermostats) - Qty: 1
• Engine coolant (Toyota Super Long Life Coolant, pink premix) - Qty: 2 gallons
• Replacement hose clamps (optional) - Qty: 2

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear wheels.
• Let the engine cool completely (ideally overnight).
• Open the rear hatch and disconnect the 12V battery negative cable using a 10mm socket. Negative is the “-” terminal.
• Raise the front and support it securely on jack stands using a floor jack.
• Remove the lower engine splash shield using a trim clip removal tool and 10mm socket.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Drain the engine coolant (partial drain)

• Place a drain pan (at least 2-gallon) under the radiator drain area.
• Open the radiator cap/pressure cap only after confirming it’s cool to the touch.
• Use a flat-blade screwdriver (or hand-turn if equipped) to open the radiator drain cock and drain coolant.
• Drain until the level is below the thermostat housing (usually 1–2 gallons).

Step 2: Remove access parts to reach the thermostat housing

• Remove the engine cover (pull up by hand).
• Remove the air intake duct and air cleaner top as needed using a 10mm socket and flat-blade screwdriver.

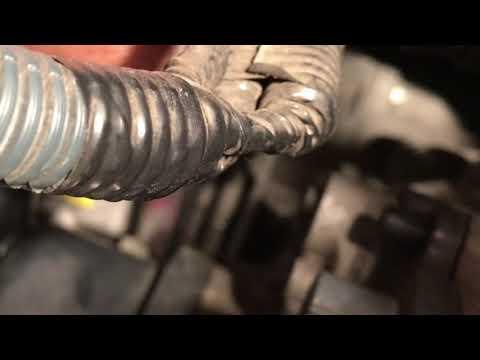

• Move any wiring harness clips out of the way using a trim clip removal tool. Don’t pull on wires—only the clips.

Step 3: Disconnect the radiator hose from the thermostat housing

• Position a catch bottle (1-quart) under the hose connection.
• Use hose clamp pliers to compress the spring clamp, then slide it back on the hose.
• Twist the hose gently to break it free, then pull it off. Use a pick tool carefully if it’s stuck. Do not gouge the plastic neck.

Step 4: Remove the thermostat housing

• Remove the thermostat housing bolts using a 10mm socket, ratchet (3/8" drive), and extension set.
• Pull the housing straight off and expect some coolant to spill into the drain pan.
• Remove the thermostat and seal. Note the orientation before removal.

Step 5: Install the new thermostat and seal

• Clean the mating surfaces using shop towels. Do not use abrasive pads that can scratch aluminum or plastic.
• Install the new seal/O-ring onto the thermostat (or into the housing groove, depending on design).
• Install the thermostat in the same orientation as removed. If it has a jiggle valve, keep it at the top.

Step 6: Reinstall thermostat housing and torque bolts

• Reinstall the housing and start all bolts by hand to avoid cross-threading.
• Tighten using a torque wrench (3/8" drive, 5–30 Nm range): Torque to 10 Nm (89 in-lbs).

Step 7: Reconnect the hose and clamps

• Push the hose fully onto the thermostat housing neck.
• Use hose clamp pliers to move the clamp back into its original position.
• Wipe everything dry with shop towels so leaks are easy to spot later.

Step 8: Reinstall intake parts and lower splash shield

• Reinstall the air intake/air box parts using a 10mm socket and flat-blade screwdriver.
• Reinstall the lower splash shield using a 10mm socket and trim clip removal tool.

Step 9: Refill coolant and bleed air

• Lower the car from the jack stands using the floor jack.
• Reconnect the 12V negative cable using a 10mm socket.
• Install a spill-free funnel kit on the coolant fill point and slowly add Toyota Super Long Life Coolant, pink premix.
• Set cabin heat to maximum temperature and low fan speed.
• Put the car into “maintenance mode” so the engine can run steadily (helps bleed air):
• With the car OFF, press the Power button twice (no brake) to IG-ON, then fully press the accelerator pedal twice, then press Power with the brake to READY, shift to P, press accelerator twice, shift to N, press accelerator twice, shift to P, press accelerator twice.
• Let the engine reach operating temperature while watching the funnel level. Add coolant as bubbles purge.
• Gently squeeze the upper radiator hose (wear nitrile gloves) to help move trapped air.
• When bubbles stop and heat is steady from the vents, shut the car OFF and let it cool fully, then top off the reservoir to the FULL line.

---

✅ After Repair

• Start the car and check for leaks around the thermostat housing and hose connection.
• Verify the cabin heat gets hot and the engine temperature stays normal on the dash.
• After the first drive and a full cool-down, recheck the coolant reservoir and top off if needed.
• Dispose of old coolant properly; it’s toxic to people and pets.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$650 (parts + labor)

DIY Cost: $60-$140 (parts only)

You Save: $210-$590 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
