🔧 Lancer - Thermostat Replacement

You’ll be replacing the engine thermostat, a spring-loaded valve that controls coolant flow to keep your engine at the right temperature. A stuck thermostat can cause overheating, slow warm-up, or poor heater performance.

Difficulty Level: Intermediate | Estimated Time: 1.5-3 hours

Assumption: Stock 2.4L layout; thermostat is in the lower radiator hose housing.

---

⚠️ Safety & Precautions

• ⚠️ Never open the radiator cap on a hot engine; hot coolant can spray and burn you.
• ⚠️ Support your Lancer with jack stands on solid ground; never rely on a jack alone.
• ⚠️ Coolant is toxic to people and pets; catch all coolant and dispose of it properly.
• ⚠️ Keep hands clear of the cooling fans; they can turn on unexpectedly.
• ⚠️ Battery disconnect is not required for this job, but keep tools away from the battery terminals.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• Drain pan (at least 2-gallon)
• Funnel
• Shop rags
• 10mm socket
• 12mm socket
• 3/8" ratchet
• 3" extension
• Torque wrench (5-30 Nm range)
• Hose clamp pliers
• Trim clip tool
• Flathead screwdriver
• Plastic scraper

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Engine thermostat - Qty: 1
• Thermostat seal / O-ring - Qty: 1
• Coolant (Mitsubishi Super Long Life Coolant equivalent) - Qty: 1-2 gallons
• Distilled water - Qty: 1 gallon
• Replacement hose clamp - Qty: 1

---

📋 Before You Begin

• 🅿️ Park on level ground, set the parking brake, and let the engine cool completely (at least 2 hours).
• Place wheel chocks behind the rear wheels.
• Raise the front with a floor jack and support with jack stands.
• Set the cabin heat to HOT (this helps coolant flow through the heater core during bleeding).
• Put a drain pan under the radiator drain area before you open anything.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Relieve cooling system pressure (engine cold)

• Use your hand (with nitrile gloves) to slowly loosen the radiator cap one click to relieve any leftover pressure.
• Remove the cap fully once you’re sure there’s no pressure.

Step 2: Drain enough coolant to get below the thermostat

• Place the drain pan (at least 2-gallon) under the radiator.
• Open the radiator drain (petcock) using a flathead screwdriver if needed.
• Drain about 1-2 gallons—enough so the lower radiator hose and thermostat housing won’t spill heavily when opened.
• Close the drain once done (snug only; do not overtighten).

Step 3: Remove the lower splash shield (if equipped)

• Use a trim clip tool to remove plastic clips.
• Use a 10mm socket with a 3/8" ratchet to remove any bolts.
• Set the shield and fasteners aside in a small pile so nothing gets lost.

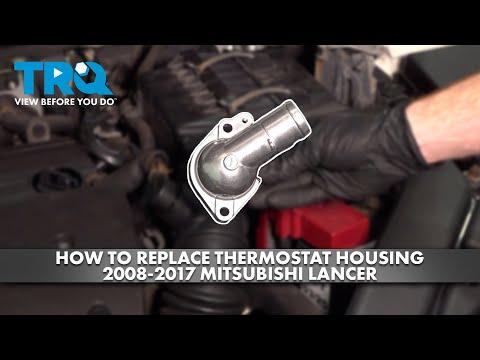

Step 4: Locate the thermostat housing

• Follow the lower radiator hose from the radiator to where it meets the engine.
• The hose connects to the thermostat housing (the thermostat sits inside this housing).
• Thermostat housing = metal outlet where hose clamps on.

Step 5: Remove the lower radiator hose from the housing

• Use hose clamp pliers to compress the clamp and slide it back on the hose.
• Use a flathead screwdriver to gently break the hose seal (do not gouge the metal).
• Twist and pull the hose off the housing. Keep the drain pan underneath for spills.

Step 6: Remove the thermostat housing

• Use a 12mm socket, 3/8" ratchet, and 3" extension to remove the housing bolts.
• Pull the housing straight off. Some coolant will spill—catch it with the drain pan and shop rags.
• Note the thermostat’s orientation before removal.

Step 7: Replace the thermostat and seal

• Remove the old thermostat and thermostat seal / O-ring by hand (use shop rags for grip).
• Clean the mating surfaces using a plastic scraper and shop rags.
• Install the new thermostat in the same direction as the old one.
• Install the new seal/O-ring fully seated (no twists).
• Do not use RTV unless the part kit requires it.

Step 8: Reinstall the thermostat housing

• Position the housing and start bolts by hand to avoid cross-threading.
• Tighten bolts evenly using a 12mm socket and 3/8" ratchet.
• Final tighten using a torque wrench (5-30 Nm range): Torque to 10 Nm (89 in-lbs).

Step 9: Reinstall the lower radiator hose

• Push the hose fully onto the housing until it bottoms out.
• Use hose clamp pliers to position the clamp in the original spot.
• If the clamp is weak or distorted, replace it with the replacement hose clamp.

Step 10: Reinstall splash shield (if removed)

• Reinstall clips using the trim clip tool.
• Reinstall bolts using a 10mm socket and 3/8" ratchet.

Step 11: Refill coolant

• Make sure the radiator drain is closed.
• Use a funnel to fill the radiator with coolant (Mitsubishi Super Long Life Coolant equivalent).
• If using concentrate, mix with distilled water to a 50/50 blend before filling.
• Fill the overflow reservoir to the FULL line.

Step 12: Bleed air from the cooling system

• Start the engine and let it idle with the radiator cap off.
• Set HVAC to HOT and fan on low.
• Watch the coolant level and add as it drops using the funnel.
• When the thermostat opens, you’ll see flow in the radiator and the upper hose will get hot.
• Once bubbles reduce and level stabilizes, install the radiator cap.
• Let the engine reach normal operating temperature and confirm the heater blows hot.
• Small bubbles early on are normal.

---

✅ After Repair

• ✅ Take a 10-15 minute test drive while watching the temperature gauge for normal behavior.
• With the engine fully cool, recheck the radiator level and overflow bottle; top off as needed using a funnel.
• Inspect for leaks around the thermostat housing and the lower hose connection.
• If you hear gurgling in the dash or heater output is weak, air may still be trapped—repeat the bleed process.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$650 (parts + labor)

DIY Cost: $40-$120 (parts only)

You Save: $230-$610 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3 hours.

---
