🔧 Terrain - Thermostat Replacement

Your thermostat helps your A/C-heater and engine stay at the correct temperature. When it sticks open or closed, you can get overheating, no heat, or a check engine light.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

Assumption: 2.4L uses a thermostat/water outlet housing with an O-ring seal.

---

⚠️ Safety & Precautions

• ⚠️ Never open the coolant cap on a hot engine; wait until fully cool.
• ⚠️ Coolant is toxic; keep it off skin and away from pets.
• ⚠️ The cooling fan can turn on unexpectedly; keep hands/tools clear.
• ⚠️ Support the SUV with jack stands; never rely on a jack alone.
• ⚠️ If you spill coolant on belts or electrical connectors, clean it immediately.
• ⚠️ Battery disconnect is recommended before working near the fan/alternator.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Drain pan (at least 2-gallon)
• Funnel
• Shop towels
• Trim clip removal tool
• Flathead screwdriver
• 8mm socket
• 10mm socket
• 13mm socket
• 3/8" ratchet
• 3" extension
• Torque wrench (inch-pound or low-range Nm)
• Hose clamp pliers
• Pick tool
• Plastic gasket scraper

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Thermostat assembly (thermostat + housing) - Qty: 1
• Thermostat housing O-ring / seal - Qty: 1
• Dex-Cool coolant (50/50 premix) - Qty: 2 gallons
• Hose clamp(s) - Qty: 1-2

---

📋 Before You Begin

• 🅿️ Park on level ground, set the parking brake, and chock the rear wheels.
• 🧊 Let the engine cool completely (cold upper radiator hose is a good sign).
• 🔋 Use a 10mm socket to disconnect the negative battery cable and isolate it.
• 🪣 Position your drain pan under the radiator drain area before opening anything.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Relieve pressure safely

• Put on safety glasses and nitrile gloves.
• Slowly loosen the coolant reservoir cap by hand, then remove it fully once any hiss stops.

Step 2: Raise the front (if you need more room)

• Use a floor jack (rated 3-ton minimum) to lift the front jack point.
• Set the vehicle down on jack stands (rated 3-ton minimum).
• Place wheel chocks behind the rear wheels.

Step 3: Drain coolant to below thermostat level

• Slide the drain pan (at least 2-gallon) under the radiator drain area.
• Open the radiator drain (petcock) using a flathead screwdriver if needed, and drain until flow slows.
• Close the drain snugly (do not overtighten plastic).
• Tip: Drain less = less mess later.

Step 4: Remove intake ducting for access

• Loosen the intake clamps using an 8mm socket or flathead screwdriver.
• Unclip/remove any push-pins with a trim clip removal tool.
• Lift the intake duct out and set it aside.

Step 5: Remove the radiator hose from the thermostat housing

• Place shop towels under the hose connection to catch drips.
• Squeeze and slide the hose clamp back using hose clamp pliers.
• Twist the hose to break it free, then pull it off (use a pick tool gently if stuck).

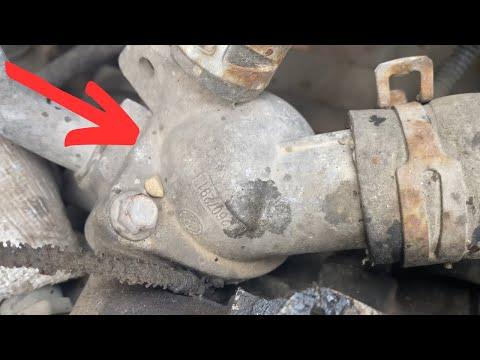

Step 6: Remove the thermostat housing/assembly

• Remove the thermostat housing bolts using a 10mm socket with a 3" extension and 3/8" ratchet.
• Pull the housing straight off and let remaining coolant drain into the drain pan.
• Remove the old O-ring/seal.

Step 7: Clean the sealing surfaces

• Use a plastic gasket scraper to clean the engine sealing surface.
• Wipe clean with shop towels until dry and smooth.
• Tip: Do not gouge the aluminum surface.

Step 8: Install the new thermostat assembly

• Lightly wet the new O-ring with fresh coolant, then seat it in the housing groove by hand.
• Position the new thermostat housing onto the engine, keeping the seal in place.
• Start bolts by hand first to avoid cross-threading.
• Tighten bolts with a torque wrench (inch-pound or low-range Nm): Torque to 10 Nm (89 in-lbs).

Step 9: Reconnect hose and reassemble intake

• Reinstall the radiator hose and move the clamp into the original position using hose clamp pliers.
• Reinstall the intake duct and tighten clamps using an 8mm socket or flathead screwdriver.

Step 10: Refill and bleed the cooling system

• Make sure the radiator drain is closed (use flathead screwdriver if applicable).
• Fill the coolant reservoir slowly using a funnel with Dex-Cool coolant (50/50 premix) to the “FULL COLD” line.
• If your coolant outlet has a bleed screw, open it carefully with an 8mm socket until coolant flows without bubbles, then close it snug.
• Reconnect the negative battery cable using a 10mm socket.

Step 11: Warm-up check

• Start the engine and set the heater to HOT with the fan on medium.
• Let it idle until the temperature gauge reaches normal operating range.
• Watch for leaks around the thermostat housing and hose connection.
• Shut the engine off, let it cool, then top off to “FULL COLD” using the funnel.

---

✅ After Repair

• 🧪 Recheck coolant level the next morning (engine cold) and top off if needed.
• 🕵️ Inspect for leaks after your first short drive (around the housing and hose clamp).
• 🌡️ Confirm the heater blows hot and the temperature gauge stays steady.
• 🧼 Clean any spilled coolant and dispose of old coolant properly.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$650 (parts + labor)

DIY Cost: $60-$180 (parts only)

You Save: $170-$590 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
