🔧 Equinox - Thermostat Replacement

The thermostat on your Equinox controls engine temperature by opening and closing to let coolant flow. When it fails, you can get overheating, poor heat, or engine codes. You’ll be replacing the thermostat housing assembly and refilling/bleeding the cooling system.

Difficulty Level: Advanced (lots of parts to move) | Estimated Time: 4–6 hours for a beginner

---

⚠️ Safety & Precautions

• ⚠️ Always work on a completely cool engine; hot coolant can cause severe burns.
• ⚠️ Disconnect the negative battery cable before removing the intake manifold to avoid accidental short circuits or starter engagement.
• ⚠️ Support the vehicle with jack stands if you lift it; never rely on a jack alone.
• ⚠️ Coolant is toxic; keep it off your skin and away from children and animals, and collect it in a drain pan.
• ⚠️ Avoid getting dirt into any open coolant passages or the intake ports; it can damage the engine.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🛠️ Socket set (8mm–19mm, metric)
• 🛠️ 1/4" drive ratchet
• 🛠️ 3/8" drive ratchet
• 🛠️ 3/8" drive torque wrench (5–80 ft-lbs range)
• 🛠️ Socket extensions (3" and 6")
• 🛠️ E-torx socket set (E8–E14) (specialty)
• 🛠️ Torx bit set (T20–T40)
• 🛠️ Flathead screwdriver (medium)
• 🛠️ Phillips screwdriver
• 🛠️ Needle-nose pliers
• 🛠️ Hose clamp pliers or channel-lock pliers
• 🛠️ Plastic trim tool or plastic pry tool
• 🛠️ Pick tool set (for hose removal)
• 🛠️ Catch pan (at least 10 liters)
• 🛠️ Funnel (coolant-safe)
• 🛠️ Shop rags or paper towels
• 🛠️ Floor jack (rated 3-ton minimum)
• 🛠️ Jack stands (rated 3-ton minimum)
• 🛠️ Work light or flashlight
• 🛠️ Safety glasses
• 🛠️ Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🔩 Thermostat housing assembly (with thermostat and seal) - Qty: 1
• 🔩 Intake manifold gasket set - Qty: 1
• 🔩 Throttle body gasket - Qty: 1
• 🔩 Engine coolant (DEX-COOL, concentrate or premix) - Qty: 2–3 gallons (depending on concentrate vs premix)
• 🔩 Coolant reservoir cap - Qty: 1 (optional but recommended if old)
• 🔩 New hose clamps - Qty: 2–4 (optional but recommended)
• 🔩 Small tube of RTV silicone sealant (sensor grommets/brackets if needed) - Qty: 1
• 🔩 Throttle body cleaner spray - Qty: 1 (optional, for cleaning while removed)

---

📋 Before You Begin

• 🚗 Park the Equinox on level ground, set the parking brake, and place the transmission in Park.
• 🔌 Turn ignition off and remove the key; let the engine cool fully (at least 1–2 hours if it was hot).
• 🔋 Disconnect the negative battery cable using a 10mm socket and move it aside so it cannot spring back.
• 🪣 Place a large catch pan under the radiator area to collect coolant when you open the drain or lower hoses.
• 📸 Take photos of hose routing and electrical connectors as you go; this really helps during reassembly.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove engine cover and air intake duct

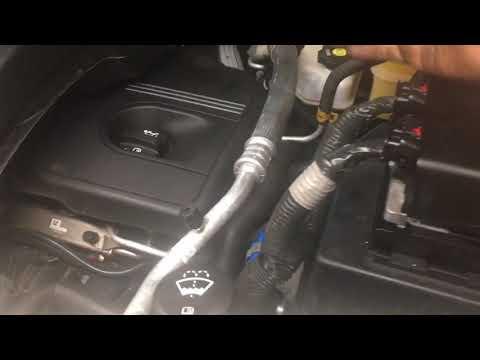

• 🛠️ Pull up on the plastic engine cover by hand to release its rubber mounts and set it aside.
• 🛠️ Use an 8mm socket on your 1/4" drive ratchet to loosen the clamps on the big air intake hose between the air box and throttle body.
• 🛠️ Disconnect any small hoses or sensors attached to the intake duct using needle-nose pliers or by gently pressing tabs with your fingers.
• 🛠️ Remove the intake duct and set it aside.

Step 2: Drain enough coolant

• 🛠️ Position the catch pan under the radiator on the passenger side.
• 🛠️ Use a flathead screwdriver to carefully open the plastic drain plug (petcock) at the bottom of the radiator, or loosen the lower radiator hose clamp with hose clamp pliers and slide the hose off.
• 🛠️ Let coolant drain until flow slows; you only need to drain roughly half the system so the level is below the thermostat.
• 🛠️ Close the drain plug with the flathead screwdriver or reinstall the lower hose and tighten its clamp with hose clamp pliers.

Step 3: Remove components blocking the intake manifold

• 🛠️ Disconnect the electrical connector to the throttle body by pressing the locking tab with your fingers or a small flathead screwdriver and pulling straight off.
• 🛠️ Use a 10mm socket and 1/4" drive ratchet to remove the bolts holding any plastic wire brackets or vacuum lines on top of the intake manifold; move the wiring gently aside.
• 🛠️ Label hoses and connectors with masking tape if you are unsure where they go back. Labels save big headaches later

Step 4: Remove the throttle body

• 🛠️ Use a 10mm socket and 1/4" drive ratchet to remove the four throttle body mounting bolts from the front of the intake manifold.
• 🛠️ Pull the throttle body straight off; there may be a little resistance from the gasket.
• 🛠️ Place it where it will not hang by the wiring. You can support it on a box or gently tie it back with a zip tie.
• 🛠️ Remove the old throttle body gasket and clean the mounting surface with a clean rag. Do not scratch the surface.

Step 5: Remove the intake manifold

• 🛠️ Disconnect the fuel injector electrical connectors by pressing their tabs and pulling straight off; use a plastic trim tool if needed to avoid damaging the clips.
• 🛠️ Disconnect any remaining vacuum hoses or PCV hoses from the intake manifold using hose clamp pliers or by twisting gently with your hand.
• 🛠️ Use a 10mm socket with extension on a 3/8" drive ratchet to remove all visible intake manifold bolts along the top and bottom edge.
• 🛠️ There may be one or two support brackets at the bottom rear of the manifold held with 13mm bolts; remove them with a 13mm socket and 3/8" ratchet.
• 🛠️ Once all bolts are removed, pull the intake manifold away from the engine. You might need to wiggle it gently. Be careful not to damage any remaining attached wiring.
• 🛠️ Set the intake manifold on a clean surface with the gasket side up so dirt does not get into it.

Step 6: Locate and access the thermostat housing

• 🛠️ With the intake manifold removed, the thermostat housing is now visible on the engine block at the rear side of the engine (toward the firewall) where coolant hoses attach.
• 🛠️ Use a work light or flashlight to see the bolts and hose connections clearly.
• 🛠️ Check how the hoses are routed; take a photo for reference.

Step 7: Disconnect hoses from thermostat housing

• 🛠️ Use hose clamp pliers or channel-lock pliers to compress the spring clamps on the coolant hoses attached to the thermostat housing and slide the clamps back onto the hose.
• 🛠️ Use a pick tool to gently break the seal between the hose and the housing if the hose is stuck, then twist and pull the hose off by hand.
• 🛠️ Expect some coolant to drain; keep the catch pan under the area and use shop rags to control spills.

Step 8: Remove the thermostat housing

• 🛠️ Use an E-torx socket (usually E10 or E12) on a 1/4" or 3/8" ratchet to remove the bolts securing the thermostat housing to the engine block. If your housing uses standard bolts, use a 10mm socket instead.
• 🛠️ Keep track of bolt locations; some may be different lengths. Lay them out in order on a clean rag.
• 🛠️ Pull the thermostat housing straight off the engine block. If it is stuck, tap it gently with the plastic handle of a screwdriver. Do not pry hard against the aluminum block.
• 🛠️ Remove the old thermostat and seal if they are not integral to the housing.

Step 9: Clean the sealing surface

• 🛠️ Use a clean rag to wipe the engine block sealing surface where the thermostat housing sits.
• 🛠️ If there is old gasket material, gently remove it with a plastic scraper; do not gouge the aluminum surface.
• 🛠️ Make sure no debris falls into the coolant passage; use a vacuum or rag to catch particles if needed.

Step 10: Install the new thermostat housing

• 🛠️ Place the new thermostat and seal into the new housing if they are separate pieces, making sure the seal is seated correctly in its groove.
• 🛠️ Position the new thermostat housing onto the engine block, aligning the bolt holes.
• 🛠️ Install the bolts by hand first to avoid cross-threading.
• 🛠️ Use the E-torx socket or 10mm socket with a 1/4" ratchet to snug all bolts evenly in a crisscross pattern.
• 🛠️ Use the torque wrench with the correct socket to tighten the thermostat housing bolts to 10 Nm (89 in-lbs).

Step 11: Reattach coolant hoses

• 🛠️ Slide the coolant hoses back onto the new thermostat housing fittings until fully seated.
• 🛠️ Use hose clamp pliers to move the clamps back to their original positions over the hose ends.
• 🛠️ Check each hose connection by gently pulling to be sure it is secure.

Step 12: Install new intake manifold gasket and reinstall manifold

• 🛠️ Remove the old intake manifold gasket from the manifold and clean the groove with a rag.
• 🛠️ Install the new gasket from the gasket set, making sure it sits flat and fully in place.
• 🛠️ Position the intake manifold back onto the engine, aligning the guide pins and bolt holes.
• 🛠️ Start all intake manifold bolts by hand.
• 🛠️ Use a 10mm socket and 3/8" ratchet to snug the bolts in an even pattern from the center outward.
• 🛠️ Use the torque wrench and 10mm socket to tighten the intake manifold bolts to 25 Nm (18 ft-lbs) in a crisscross pattern.
• 🛠️ Reinstall any lower support bracket bolts with a 13mm socket and torque to 25 Nm (18 ft-lbs).

Step 13: Reinstall throttle body

• 🛠️ Place the new throttle body gasket on the intake manifold flange.
• 🛠️ Position the throttle body and install the four 10mm bolts by hand.
• 🛠️ Use a 10mm socket and 1/4" ratchet to snug them evenly.
• 🛠️ Use the torque wrench to tighten the throttle body bolts to 10 Nm (89 in-lbs).
• 🛠️ Reconnect the throttle body electrical connector until it clicks.

Step 14: Reconnect wiring, hoses, and intake duct

• 🛠️ Reconnect all fuel injector connectors and any sensors you unplugged, pressing until they click.
• 🛠️ Reattach any vacuum and PCV hoses to their original locations using hose clamp pliers as needed.
• 🛠️ Reinstall any wire brackets onto the intake manifold with 10mm bolts and snug them with a 10mm socket.
• 🛠️ Reinstall the air intake duct, slide it over the air box and throttle body, and tighten the clamps with an 8mm socket.
• 🛠️ Reinstall the engine cover by aligning the rubber grommets and pressing down firmly by hand.

Step 15: Refill and bleed the cooling system

• 🛠️ Make sure the radiator drain is closed and all hoses are attached.
• 🛠️ Mix DEX-COOL concentrate with distilled water if using concentrate (typically 50/50 mixture), then use a funnel to fill the coolant reservoir to the “COLD” or “FULL COLD” line.
• 🛠️ Reconnect the negative battery cable with a 10mm socket and snug the nut.
• 🛠️ Start the engine and let it idle with the reservoir cap off; turn the cabin heater to full hot and fan on low.
• 🛠️ Watch the coolant level in the reservoir and add coolant as it drops. Once the thermostat opens, you may see bubbles; that’s air purging out.
• 🛠️ When the engine reaches normal operating temperature and the level stabilizes, install the reservoir cap firmly.
• 🛠️ Check for leaks around the thermostat housing, hoses, and drain plug.

Step 16: Final checks

• 🛠️ Shut the engine off and let it cool completely, then recheck the coolant level and top up to the “COLD” mark if needed.
• 🛠️ Inspect underneath the vehicle and around the engine for any new leaks.
• 🛠️ Wipe away any spilled coolant from painted surfaces with water and a rag.

---

✅ After Repair

• ✅ Take a short test drive, watching the temperature gauge; it should reach normal and stay stable.
• ✅ Check for any warning lights (Check Engine, temperature warning). If a light appears, a scan tool can read the stored codes.
• ✅ After the test drive, let the engine cool and verify coolant level again in the reservoir.
• ✅ Over the next few days, occasionally check under the Equinox for drips and recheck coolant level.

---

💰 DIY vs Shop Cost

Shop Cost: $550–$800 (parts + labor)

DIY Cost: $120–$220 (parts + coolant)

You Save: $430–$580 by doing it yourself!

Shop labor rates typically run $100–$150/hour. This repair takes a shop about 3–4 hours.

---
