🔧 SRX - Thermostat Replacement

The thermostat controls coolant flow to keep your SRX at the correct operating temperature. Replacing it typically involves draining some coolant, removing the thermostat housing, installing a new thermostat/seal, then refilling and bleeding the cooling system.

Assumption: Your SRX has the 3.6L V6 (LFX) with the thermostat in the front water outlet housing.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a fully cool engine (hot coolant can cause severe burns).
• ⚠️ Never open the coolant reservoir cap when hot or pressurized.
• ⚠️ Support the vehicle with jack stands if you raise it—never rely on a jack.
• ⚠️ Clean spills immediately—coolant is toxic to people and pets.
• ⚠️ Keep coolant off belts and electrical connectors.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Drain pan (at least 10-quart)
• Funnel
• Trim clip removal tool
• Flathead screwdriver
• Pliers (hose clamp)
• Ratchet (3/8" drive)
• Socket set (8mm, 10mm, 13mm)
• Extension set (3" and 6")
• Torque wrench (3/8" drive)
• Plastic scraper
• Shop towels

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Thermostat assembly with seal/O-ring - Qty: 1
• Dex-Cool coolant (50/50 premix) - Qty: 2-3 gallons
• Upper radiator hose clamp - Qty: 1 (only if original is weak/damaged)

---

📋 Before You Begin

• 🅿️ Park on level ground, set the parking brake, and chock the rear wheels.
• 🧊 Let the engine cool completely (ideally sit overnight).
• 🧼 Lay shop towels under the thermostat area to catch drips.
• ⬆️ If you need more room, raise the front with a floor jack and support with jack stands.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Relieve pressure safely

• Put on safety glasses and nitrile gloves.
• With the engine cool, slowly loosen the coolant reservoir cap by hand to release any leftover pressure, then remove it.

Step 2: Drain coolant (partial drain)

• Place a drain pan (at least 10-quart) under the radiator drain area.
• If equipped with a lower splash shield, remove fasteners using a trim clip removal tool and socket set (8mm, 10mm).
• Open the radiator drain (petcock) using a flathead screwdriver (some are hand-turn), and drain enough coolant so the level is below the thermostat housing.
• Close the drain securely when done.

Step 3: Remove the engine cover and air intake duct

• Lift off the engine cover (it typically pulls upward) using your hands; if it’s retained by screws, use a socket set (10mm).
• Loosen the intake duct clamps using a flathead screwdriver or socket set (8mm).
• Unclip/remove the intake duct and set it aside.
• Take a quick photo first for reassembly.

Step 4: Access the thermostat housing

• Locate the thermostat housing at the front of the engine where a large radiator hose meets the engine.
• Use pliers (hose clamp) to slide the hose clamp back on the hose.
• Twist the hose gently by hand to break it free, then pull it off the thermostat housing.
• Catch any remaining coolant with the drain pan and shop towels.

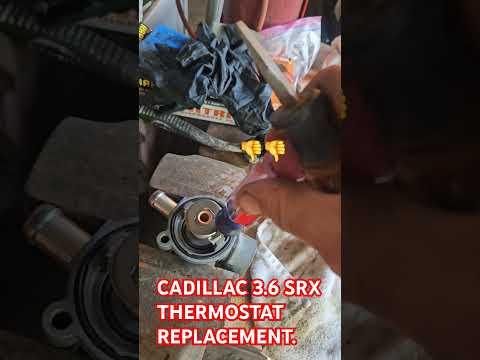

Step 5: Remove the thermostat housing/thermostat

• Remove the thermostat housing bolts using a ratchet (3/8" drive), extension set (3" and 6"), and socket set (10mm).
• Carefully separate the housing and remove the thermostat.
• Remove and discard the old seal/O-ring.

Step 6: Clean the sealing surfaces

• Use a plastic scraper to clean any residue from the mating surfaces.
• Wipe clean with shop towels.
• Do not gouge aluminum surfaces.

Step 7: Install the new thermostat and reassemble

• Install the new thermostat and new seal/O-ring in the same orientation as the old one.
• Reinstall the thermostat housing and start bolts by hand to avoid cross-threading.
• Tighten bolts evenly using a ratchet (3/8" drive) and socket set (10mm).
• Final-tighten with a torque wrench (3/8" drive): Torque to 10 Nm (89 in-lbs).
• Reconnect the radiator hose and position the clamp using pliers (hose clamp).

Step 8: Reinstall the intake duct and covers

• Reinstall the intake duct and tighten clamps using a flathead screwdriver or socket set (8mm).
• Reinstall the engine cover by pressing it into place (or use a socket set (10mm) if bolted).
• If removed, reinstall the lower splash shield using a trim clip removal tool and socket set (8mm, 10mm).

Step 9: Refill and bleed the cooling system

• Insert a funnel into the coolant reservoir.
• Fill with Dex-Cool coolant (50/50 premix) to the proper level.
• Start the engine and set the heater to max heat (this helps move coolant through the heater core).
• Let the engine idle and watch the temperature gauge. Add coolant as the level drops.
• Once the engine reaches operating temperature and you feel steady heat from the vents, install the reservoir cap by hand.

---

✅ After Repair

• 🧪 Check for leaks around the thermostat housing and the hose connection with the engine running.
• 🌡️ Road test 10-15 minutes, then recheck coolant level after the engine cools; top off if needed.
• 🧼 Recheck for drips the next morning and verify the temperature gauge is stable.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$650 (parts + labor)

DIY Cost: $60-$140 (parts only)

You Save: $290-$510 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-3 hours.

---
