🔧 Civic - Thermostat Replacement

The thermostat controls coolant flow to keep your engine at the correct temperature. When it sticks open or closed, your Civic can run too cool, overheat, or set a check engine light—replacing it restores proper temperature control.

Difficulty Level: Intermediate | Estimated Time: 1.5-3 hours

---

⚠️ Safety & Precautions

• ⚠️ Never open the radiator cap on a hot engine; hot coolant can cause severe burns.
• ⚠️ Support the car with jack stands if you lift it—never rely on a floor jack alone.
• ⚠️ Keep coolant off belts, paint, and the ground; it’s toxic to people and pets.
• ⚠️ Use only Honda-compatible coolant (Type 2 equivalent) to avoid corrosion issues.
• ⚠️ Battery disconnect is not required for this job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Drain pan (at least 2-gallon)
• Funnel with long neck
• Shop towels
• 10mm socket
• 3/8" ratchet
• 3" extension
• Torque wrench (3/8" drive, 5-80 Nm range)
• Hose clamp pliers
• Slip-joint pliers
• Flathead screwdriver
• Plastic trim tool
• Gasket scraper (plastic)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Engine thermostat - Qty: 1
• Thermostat seal O-ring - Qty: 1
• Engine coolant (Honda Type 2 equivalent, premixed) - Qty: 1-2 gallons

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear tires.
• Let the engine cool fully (radiator hoses should feel cool to the touch).
• If you want more room, raise the front with a floor jack and support it with jack stands.
• Set the heater controls to HOT (this helps coolant circulate through the heater core during bleeding).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Relieve pressure safely

• Put on nitrile gloves and safety glasses.
• Slowly loosen the radiator cap by hand (engine cold only), then remove it fully.

Step 2: Drain coolant below the thermostat level

• Position a drain pan (at least 2-gallon) under the radiator drain.
• Open the radiator drain cock using a flathead screwdriver if needed, and let coolant drain.
• Drain until the radiator is mostly empty, then close the drain cock snugly by hand. Don’t overtighten plastic drains.

Step 3: Remove the intake ducting for access

• Loosen the intake tube clamps using a flathead screwdriver.
• Remove any plastic clips with a plastic trim tool, then lift the intake duct out of the way.

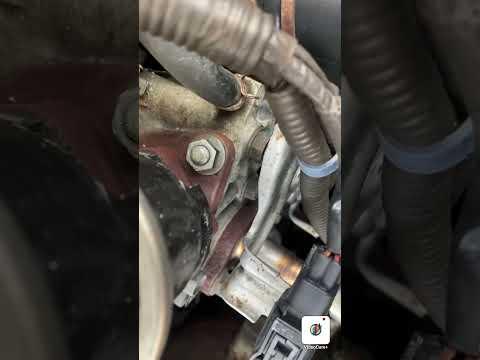

Step 4: Locate the thermostat housing

• Follow the lower radiator hose to the engine—the thermostat sits inside the housing where that hose connects.
• Place shop towels under the housing to catch leftover coolant.

Step 5: Remove the lower radiator hose from the housing

• Compress the spring clamp using hose clamp pliers and slide it back on the hose.
• Twist the hose gently to break it free, using slip-joint pliers only if needed (don’t crush the fitting), then pull the hose off.

Step 6: Remove the thermostat housing

• Remove the thermostat housing bolts using a 10mm socket, 3/8" ratchet, and 3" extension.
• Separate the housing and catch any coolant in the drain pan.
• Pull the thermostat out and remove the old seal O-ring.

Step 7: Install the new thermostat and seal

• Clean the sealing surfaces with a gasket scraper (plastic) and shop towels. Do not gouge the metal.
• Install the new thermostat seal O-ring (lightly wet it with fresh coolant so it seats smoothly).
• Install the new thermostat in the same orientation as the old one. If your thermostat has a small “jiggle valve” (a tiny air-bleed pin), point it upward; it helps air escape during filling.

Step 8: Reinstall the housing and torque bolts

• Reinstall the housing and start the bolts by hand to avoid cross-threading.
• Tighten evenly using a 10mm socket.
• Final-tighten using a torque wrench (a torque wrench ensures bolts are tightened to spec): Torque to 12 Nm (9 ft-lbs).

Step 9: Reconnect the lower radiator hose

• Slide the hose fully onto the housing.
• Move the clamp back into its original position using hose clamp pliers.

Step 10: Reinstall the intake ducting

• Reinstall the intake duct and any clips you removed using a plastic trim tool.
• Tighten the intake clamps using a flathead screwdriver.

Step 11: Refill coolant

• Insert a funnel with long neck into the radiator fill neck.
• Slowly fill with Honda Type 2 equivalent premixed coolant until the radiator is full.
• Fill the overflow reservoir to the MAX line.

Step 12: Bleed air from the cooling system

• Start the engine and let it idle with the radiator cap off.
• Turn the cabin heat to HOT and the fan to a medium setting.
• As the engine warms up, watch the coolant level and add coolant as it drops using the funnel.
• Once the thermostat opens, you should see flow in the radiator and the upper hose will get hot.
• When bubbles stop appearing, install the radiator cap by hand.
• Let the engine reach normal operating temp, then shut it off and let it cool fully.
• Recheck the overflow tank level and top off to MAX if needed.

---

✅ After Repair

• Check for leaks around the thermostat housing and the lower radiator hose with the engine running.
• Verify the heater blows hot air and the temperature gauge stays normal.
• After your first drive and full cool-down, recheck the overflow reservoir and top off if needed.
• If the check engine light was on for coolant temp, it may clear after a few drive cycles; if it doesn’t, scan for codes.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor)

DIY Cost: $35-$90 (parts only)

You Save: $160-$415 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3 hours.

---
