🔧 Highlander - Thermostat Replacement

Replacing the thermostat on your Highlander means draining some engine coolant, removing the thermostat housing, installing a new thermostat, and refilling/bleeding the cooling system. The thermostat controls coolant flow so the engine warms up correctly and does not overheat.

Difficulty Level: Intermediate | Estimated Time: 1.5-2.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Only work on a completely cool engine. Hot coolant can cause serious burns.
• ⚠️ Wear safety glasses and gloves. Coolant is toxic and slippery.
• ⚠️ Keep coolant away from pets and children. Used coolant must be collected and recycled properly.
• ⚠️ Do not open the radiator cap or coolant reservoir cap when the engine is hot.
• ⚠️ Disconnecting the battery is not normally required for this repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 12mm socket
• 3/8-inch ratchet
• 3/8-inch extension 6-inch
• Torque wrench 5-50 Nm
• Flat-blade screwdriver medium
• Hose clamp pliers
• Drain pan 2-gallon minimum
• Funnel spill-free coolant fill kit (specialty)
• Plastic trim clip remover
• Shop towels
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Engine coolant thermostat - Qty: 1
• Thermostat gasket/O-ring - Qty: 1
• Toyota Super Long Life Coolant or equivalent pink premixed coolant - Qty: 1-2 gallons

---

📋 Before You Begin

• Park your Highlander on level ground and set the parking brake.
• Let the engine cool for at least 2-3 hours before opening the cooling system.
• A spill-free coolant fill kit is a funnel that locks onto the radiator/reservoir opening and helps remove air from the cooling system.
• Have a drain pan ready before loosening any hose or drain plug.
• Take a photo before removing parts.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the Engine Cover and Access Panels

• Open the hood and make sure the engine is cool to the touch.
• Use a 10mm socket and 3/8-inch ratchet to remove any fasteners holding the engine cover or intake duct brackets that block access.
• Use a plastic trim clip remover to lift any plastic push clips carefully.
• Set all clips and bolts in a small container so they do not get lost.

Step 2: Relieve Cooling System Pressure

• Put on safety glasses and nitrile gloves.
• Slowly loosen the coolant reservoir cap by hand only after confirming the engine is fully cool.
• If you hear pressure escaping, stop and wait until the sound is gone before removing the cap fully.

Step 3: Drain Some Coolant

• Place the drain pan 2-gallon minimum under the radiator drain area.
• Use a flat-blade screwdriver medium if needed to open the radiator drain cock slowly.
• Drain about 1 gallon of coolant, or enough so the thermostat housing will not spill heavily when opened.
• Close the drain cock gently by hand or with the flat-blade screwdriver medium. Do not overtighten plastic drain parts.

Step 4: Locate the Thermostat Housing

• Follow the lower radiator hose to the engine. The hose connects to the thermostat housing.
• The thermostat housing is the metal or plastic outlet bolted to the engine where the lower radiator hose attaches.
• Use shop towels around the area to catch coolant drips.

Step 5: Remove the Lower Radiator Hose from the Housing

• Use hose clamp pliers to squeeze the spring clamp tabs together.
• Slide the clamp back onto the hose, away from the thermostat housing neck.
• Twist the hose gently by hand to break it loose.
• If stuck, use a flat-blade screwdriver medium carefully between the hose and neck, but do not gouge the sealing surface.
• Pull the hose off and aim any coolant into the drain pan 2-gallon minimum.

Step 6: Remove the Thermostat Housing

• Use a 12mm socket, 3/8-inch extension 6-inch, and 3/8-inch ratchet to remove the thermostat housing bolts.
• Support the housing with your hand as the last bolt comes out.
• Pull the housing straight away from the engine.
• Note the direction of the thermostat before removing it. The spring side faces the engine.

Step 7: Remove the Old Thermostat and Gasket

• Pull the old thermostat out by hand.
• Remove the old thermostat gasket/O-ring by hand.
• Use shop towels to clean the sealing area on the housing and engine.
• Do not scrape aggressively. Scratches can cause leaks.

Step 8: Install the New Thermostat

• Install the new thermostat gasket/O-ring onto the new engine coolant thermostat.
• Place the thermostat into the engine opening with the spring side facing the engine.
• If the thermostat has a small jiggle valve or bleed pin, position it at the top.
• Correct direction prevents overheating.

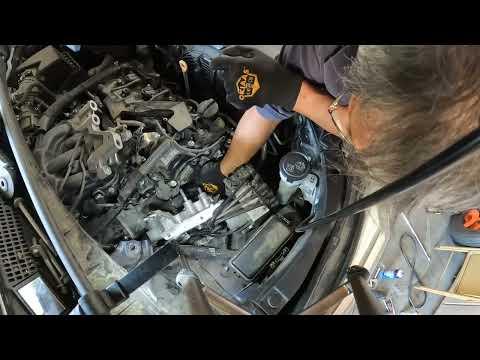

Step 9: Reinstall the Thermostat Housing

• Position the thermostat housing squarely against the engine by hand.
• Start all housing bolts by hand first to avoid cross-threading.
• Use a 12mm socket, 3/8-inch extension 6-inch, and 3/8-inch ratchet to snug the bolts evenly.
• Use a torque wrench 5-50 Nm to tighten the housing bolts to Torque to 10 Nm (89 in-lbs).

Step 10: Reconnect the Lower Radiator Hose

• Push the lower radiator hose fully onto the thermostat housing neck by hand.
• Use hose clamp pliers to move the clamp back to its original position.
• Make sure the clamp sits behind the raised bead on the housing neck.

Step 11: Refill the Cooling System

• Install the funnel spill-free coolant fill kit at the coolant fill point.
• Pour Toyota Super Long Life Coolant or equivalent pink premixed coolant slowly into the funnel.
• Fill until the coolant level stays steady.
• Squeeze the upper and lower radiator hoses by hand several times to help push trapped air out.

Step 12: Bleed Air from the Cooling System

• Start the engine and let it idle with the funnel spill-free coolant fill kit installed.
• Turn the cabin heater to maximum temperature and low fan speed using the climate controls.
• Watch for bubbles rising in the funnel as the engine warms up.
• Keep adding coolant as the level drops.
• When warm air comes from the vents and bubbles mostly stop, install the cap.

Step 13: Reinstall Removed Covers

• Use a 10mm socket and 3/8-inch ratchet to reinstall any brackets or covers removed earlier.
• Use a plastic trim clip remover by hand pressure only to reseat any plastic push clips.
• Wipe spilled coolant with shop towels.

---

✅ After Repair

• Let the engine reach normal operating temperature while watching the temperature gauge.
• Check around the thermostat housing, lower radiator hose, and radiator drain cock for leaks.
• After a short test drive, park your Highlander and let it cool completely.
• Recheck the coolant level in the reservoir and top off with Toyota Super Long Life Coolant or equivalent pink premixed coolant if needed.
• If the temperature gauge rises above normal, shut the engine off and let it cool before checking coolant level again.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor)

DIY Cost: $45-$120 (parts only)

You Save: $205-$330 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
